60 VEGASON 51 V … 53 V
The most important adjustment steps
On page 62 you see the complete menu plan
of the signal conditioning instrument
VEGAMET 515 V as well as the adjustment
module MINICOM. The menu plan of the
signal conditioning instrument VEGAMET
514V is nearly identical (see operating in-
struction to signal conditioning instruments
VEGAMET 514 V).
Set-up the sensor in the following numbered
sequence. The appropriate numbers are
stated in the menu plans on page 64 … 71.
The items in brackets can be carried out or
adjusted beside the signal conditioning in-
strument VEGAMET also with the adjustment
module MINICOM.
1. Configuration of the input (generally al-
ready preconfigured)
Menu plan page 66
2.) Operating range
Menu plan page 70 (via I on page 66)
3.) Measuring conditions
Menu plan page 70 (via I on page 66)
4. Min./Max. adjustment
Menu plan page 64
5.) Conditioning/Scaling VEGAMET
Menu plan page 64
6. Outputs
Menu plan page 64
7.) False echo storage (only required if
meas. errors occur during operation)
Menu plan page 70
8.) Indication of the useful and noise level
Menu plan page 71
9. Conditioning/Scaling
of the sensor display
Menu plan page 70
Set-up - Adjustment with VEGAMET or MINICOM

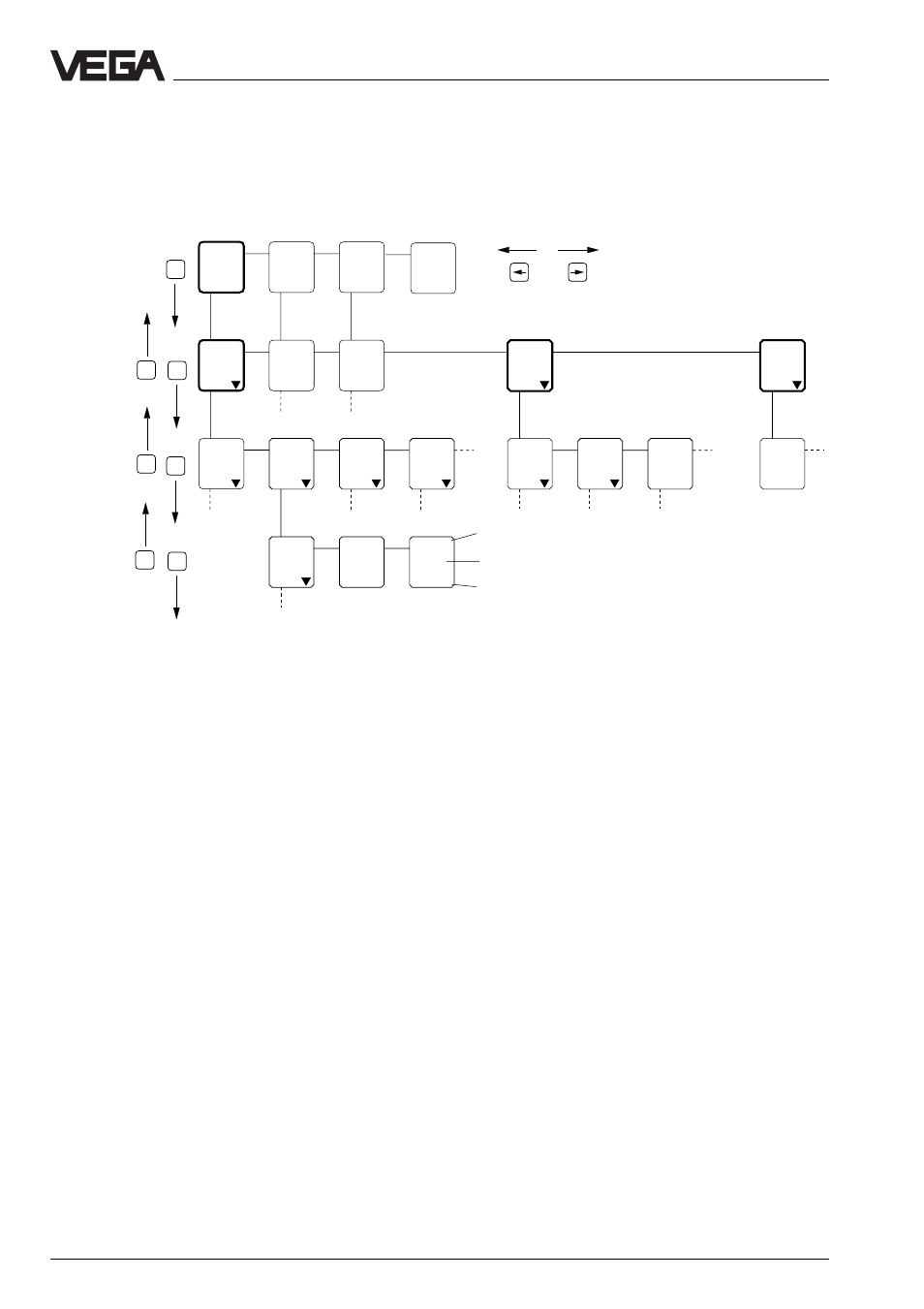

Adjustment structure
ESC
OK
OK
OK
OK
ESC
ESC
TAG1
%
36.9
TAG2
%
TAG3
%
Menu window
Parameter
Value
Add’l
func-
t i o n s Confi-
gura-
tion
Param.
TAG3 Param.
TAG2 Param.
TAG1
Pass-
word
off Out-
puts M e a s .
loop In-
puts Simu-
lation Output Condit
ioning Adjust-
ment
Scal-
ing Lin.
curve
Integra-
tion
t i m e
10
Measured
value indi-
cation
Main
menu
Selection of the menu window in the
horizontal menu stage as well as
choice of fixed parameters MST1-
2
