VEGASON 51 V … 53 V 49
As parameter you can choose "dimensionless
(figures), volume, mass, height and distance"
and coordinate an appropriate meas. unit
(e.g. l, hl).
The sensor indication displays then the figure
in the chosen parameter and unit.
• Save the adjustments in the menu " Scaling"
with "OK".
The adjustments are now transmitted to the
sensor and you are again in the menu win-
dow "
Conditioning".

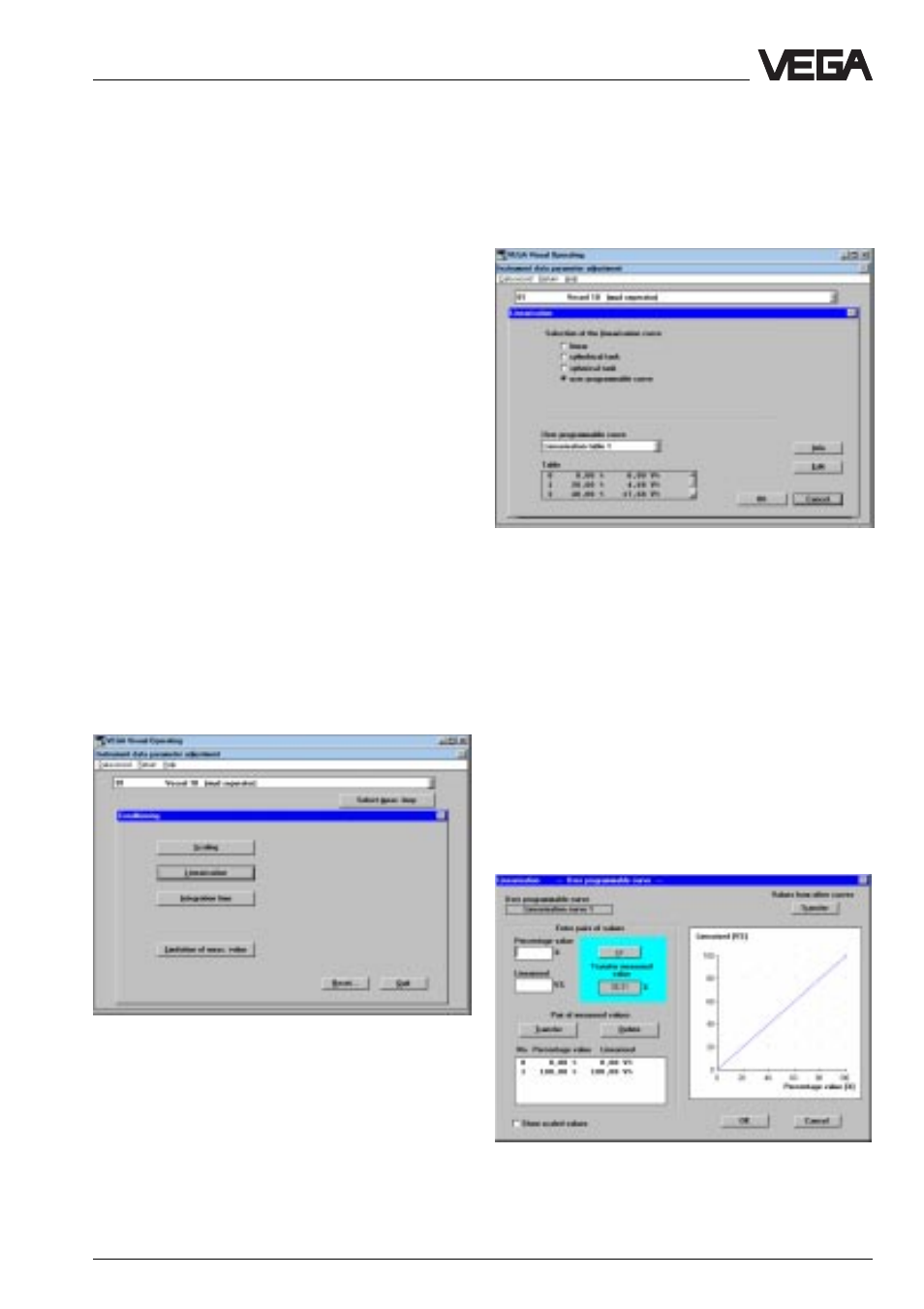

Linearisation
The relation of level and volume is described
with so called linearisation curves.
If in your vessel there is another than a linear
dependence between level ("percentage
value" of the level) and the volume
("linearised" value of the volume), choose the
menu "
Instrument data/Parameter adjust-
ment/Conditioning"
• Click in the menu window " Conditioning" to
the menu point "Linearisation".
In the menu window " Linearisation" you see
that " Linear" is preadjusted. This means that
the dependence between the percentage
value of the filling volume and the value of the
level is linear.
Beside the two given linearisation curves
"
Cylindrical tank" and "Spherical tank" you
can also adjust six " user programmable
curves".
• To enter an own vessel geometry or a user
programmable filling curve, click to "User
programmble curve".
• Click to "Edit".
Set-up - Adjustment with PC on VEGAMET
