VEGASON 51 V … 53 V
11
Type code
The second figure of the type designation
e.g. VEGASON 5[1] differentiates the instru-
ments acc. to process connection and meas.
range

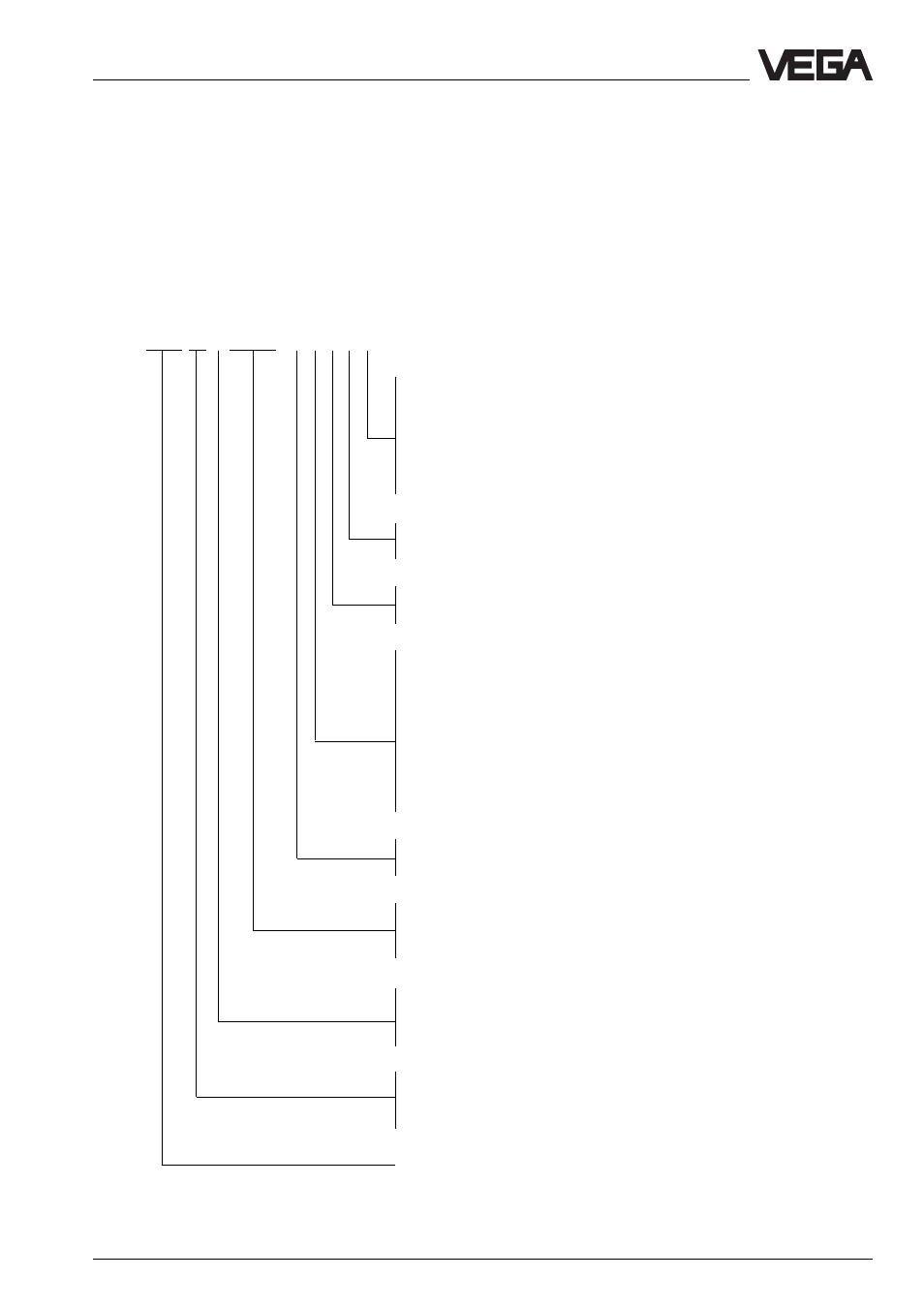

Types and versions
-
Survey
VEGASON 51 V E X
X
. X X X X X
(example)
G - Process connection G 1
1
/
2
A
N - Process connection 1
1
/
2
NPT
X - Process connection DN 100 PN (without compr. flange)
A - Process connection DN 100 PN (PPH compr. flange)
B - Process connection DN 100 PN (1.4571 compr. flange)
C - 1.4301 mounting loop
X - without indication
A - with integral indication
X - without MINICOM adjustment module
B - with MINICOM adjustment module (pluggable)
A - 20 … 72 V DC; 20 … 250 V AC; 4 … 20 mA
B - 20 … 72 V DC; 20 … 250 V AC; 4 … 20 mA; HART
®
C - Two-wire (loop powered);
4 … 20 mA
D - Two-wire (loop powered);
4 … 20 mA; HART
®
E - Supply via signal conditioning instrument
P - 90 … 250 V AC (only in USA)
N - 20 … 36 V DC, 24 V AC (only in USA)
Z - Supply via signal conditioning instrument (only in USA)
U - in USA
X - outside USA
.X - without approval
EX.X
- Ex approved CENELEC EEx ia IIC T6
EXS.X - StEx Zone 10
K - Analogue 0 … 20 mA output signal
(two-wire or four-wire technolgoy)
V - Digital output signal (two-wire technology)
Type 51: Meas. range 0,25 … 4 m
Type 52: Meas. range 0,4 … 7 m
Type 53: Meas. range 0,6 … 15 m
Meas. principle (SON for ultrasonics)
The figure e.g. VEGASON 51[V] character-
izes the output signal:
V stands for a digital output signal.
