H8035/H8036 INSTALLATION GUIDE
WIRING

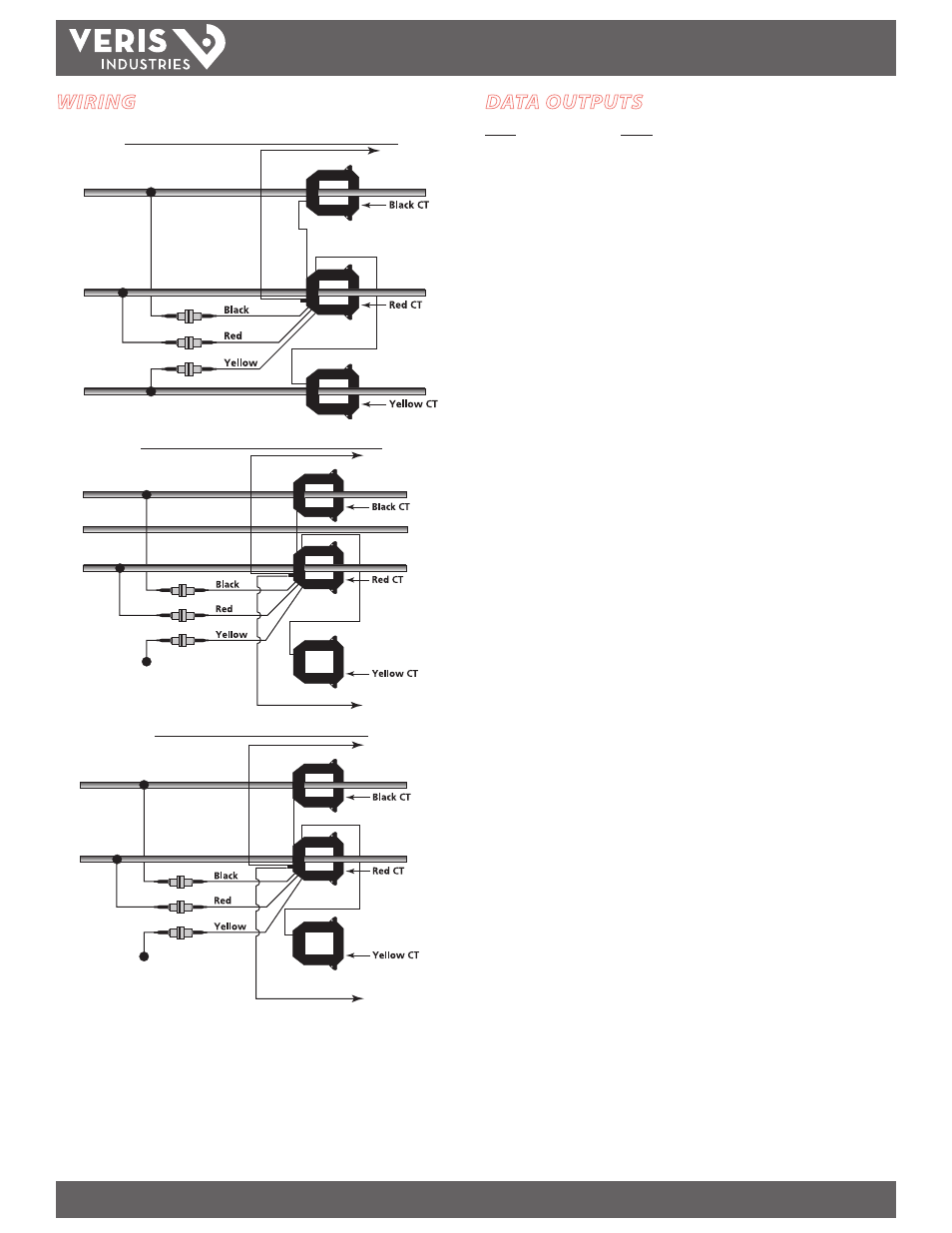

Typical 208/480 VAC 3Ø, 3- or 4- Wire Installation
MODBUS RS-485 LINE
ØB
ØA
ØC
Typical 240/120 VAC 1Ø, 3-Wire Installation
120
Neutral
120
MODBUS RS-485 LINE
To additional MODBUS Devices
ØA
ØB
Typical 277 VAC 1Ø, 2-Wire Installation
Neutral
277
MODBUS RS-485 LINE
To additional MODBUS Devices
ØA
DATA OUTPUTS
H8035
kWh, consumption
Reset kWh
kW, demand H8036
kWh, consumption
kW, real power
kVAR, reactive power
kVA, apparent power
Power factor
Average real power
Minimum real power
Maximum real power
Voltage, line-to-line
Voltage, line-to-neutral
Amps, average current
kW, real power ØA
kW, real power ØB
kW, real power ØC
Power factor ØA
Power factor ØB
Power factor ØC
Voltage, ØA to ØB
Voltage, ØB to ØC
Voltage, ØAto ØC
Voltage, ØA to Neutral
Voltage, ØB to Neutral
Voltage, ØC to Neutral
Amps, Current ØA
Amps, Current ØB
Amps, Current ØC
Note: The Enercept cannot communicate on the network bus without power.
Therefore, it is best to connect the voltage leads ahead of switching devices.
