Tandem axles — meritor/rockwell – Spicer DRIVELINE COMPONENTS CATALOG FLANGE & END YOKE APPLICATIONS User Manual
Page 77
*(C/L to End of Hub for EY (End Yoke); Flange Face to End of Hub for CF (Companion Flange))
76
J300-P10
Important: See Safety Information in General Information Section (J300P-GI)

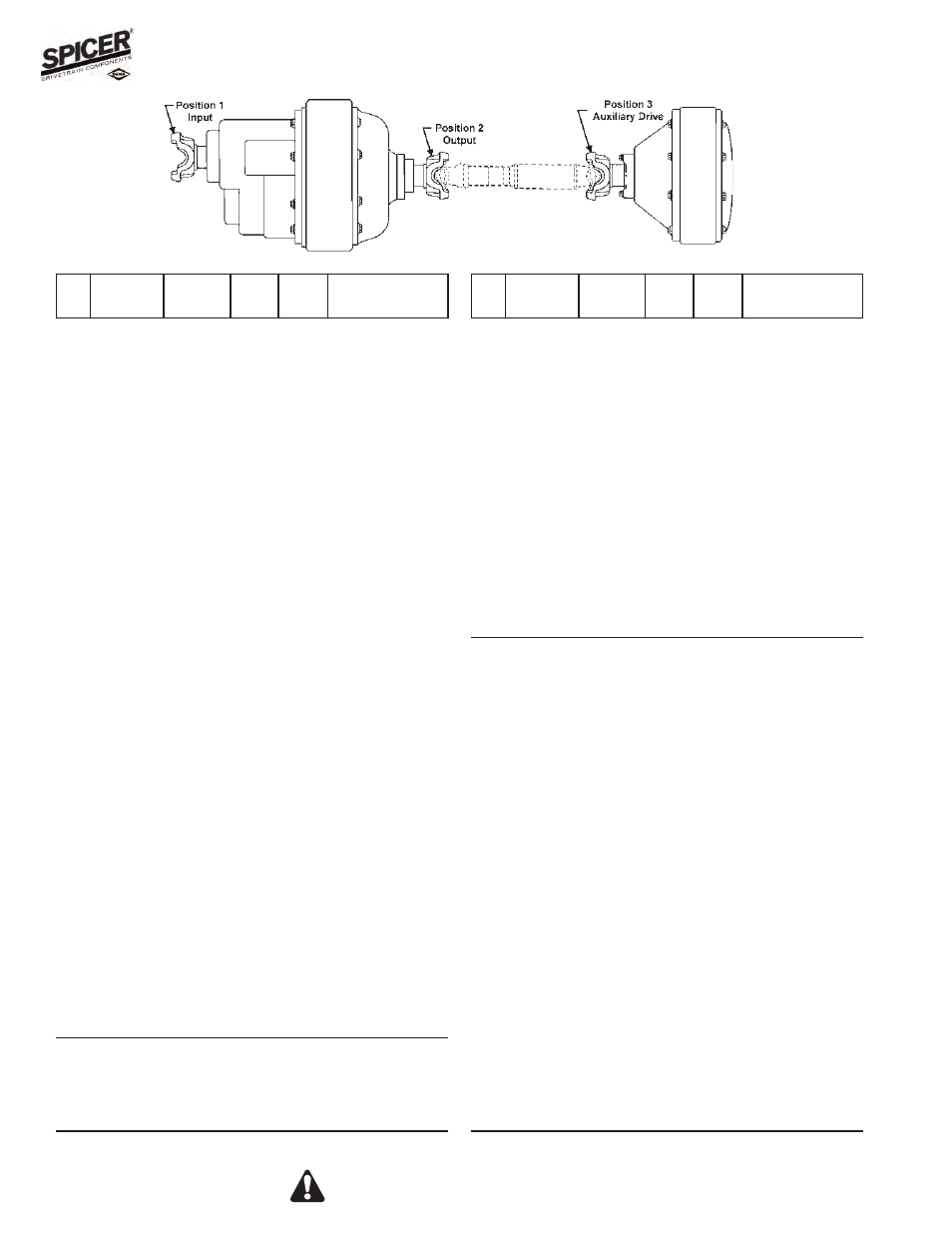

Pos
Series
Spline
Data
Hub
Dia
* to
End of
Hub
End Fitting
Part Number
Pos
Series
Spline
Data
Hub
Dia
* to
End of
Hub
End Fitting
Part Number
Important: See Safety Information in General Information Section (J300P-GI)
SW-170
1
1710 2.374-46 3.250 5.938 EY 6-4-5961X
1
1760 2.374-46 3.250 5.625 EY 6.3-4-301-1X
1
1760 2.374-46 3.250 5.625 EY 6.3-4-301X
1
1810 2.374-46 3.250 5.688 EY 6.5-4-3221-1X
1
1810 2.374-46 3.250 5.688 EY 6.5-4-3221X
2
1610 2.024-39 3.000 5.531 EY 5-4-6271
2
1710 2.024-39 3.000 5.156 EY 6-4-6401
2
1710 2.024-39 3.000 5.156 EY 6-4-6401-1
2
1760 2.024-39 3.000 5.188 EY 6.3-4-531
2
1810 2.024-39 3.000 5.190 EY 6.5-4-3371
3
1610 2.250-10 3.000 5.625 EY 5-4-6891X
3
1710 2.250-10 3.000 6.062 EY 6-4-4411-1X
3
1710 2.250-10 3.000 6.062 EY 6-4-4411X
3
1710 2.250-10 3.000 7.188 EY 6-4-6891X
High angle yoke
3
1760 2.250-10 3.000 5.844 EY 6.3-4-731-1X
3
1760 2.250-10 3.000 5.844 EY 6.3-4-731X
3
1810 2.250-10 3.000 5.844 EY 6.5-4-2551X
SW-270, SW-280
1
1760 2.374-46 3.250 5.625 EY 6.3-4-301-1X
1
1760 2.374-46 3.250 5.625 EY 6.3-4-301X
1
1810 2.374-46 3.250 5.688 EY 6.5-4-3221-1X
1
1810 2.374-46 3.250 5.688 EY 6.5-4-3221X
2
1610 2.024-39 3.000 5.531 EY 5-4-6271
2
1710 2.024-39 3.000 5.156 EY 6-4-6401
2
1710 2.024-39 3.000 5.156 EY 6-4-6401-1
2
1760 2.024-39 3.000 5.188 EY 6.3-4-531
2
1810 2.024-39 3.000 5.190 EY 6.5-4-3371
3
1710 2.024-39 3.000 6.250 EY 6-4-6381X
High angle yoke
3
1710 2.024-39 3.000 6.250 EY 6-4-6391X
High angle yoke
3
1810 2.024-39 3.000 5.190 EY 6.5-4-3381X
Tandem Axles — Meritor/Rockwell
SUDD, SUHD (Continued)
1
1760 2.374-46 3.250 5.438 EY 6.3-4-101
1
1760 2.374-46 3.250 5.438 EY 6.3-4-101-1
1
1810 2.374-46 3.250 5.438 EY 6.5-4-2701
1
1810 2.374-46 3.250 5.438 EY 6.5-4-2701-1
1
1810 2.374-46 3.250 5.438 EY 6.5-4-2711-1X
1
1810 2.374-46 3.250 5.438 EY 6.5-4-2711X
2
1610 1.960-10 2.750 5.125 EY 5-4-5281X
2
1610 1.962-10 2.750 5.938 EY 5-4-5321X
2
1610 2.024-39 2.750 5.125 EY 5-4-6951X
2
1610 2.024-39 2.750 5.938 EY 5-4-6961X
High angle yoke
2
1710 1.960-10 2.750 5.250 EY 6-4-3221
2
1710 1.960-10 2.750 5.250 EY 6-4-4361X
2
1710 1.960-10 2.750 6.500 EY 6-4-4481X
High angle yoke
2
1710 2.024-39 2.750 6.500 EY 6-4-5501-1
High angle yoke
2
1710 2.024-39 2.750 6.500 EY 6-4-6871-1X
High angle yoke
2
1710 2.024-39 2.750 6.500 EY 6-4-6871X
2
1710 2.024-39 2.750 4.812 EY 6-4-6941X
2
1710 2.024-39 2.750 5.250 EY 6-4-6951X
2
1760 2.374-46 3.250 5.438 EY 6.3-4-211-1X
2
1760 2.374-46 3.250 5.438 EY 6.3-4-211X
2
1810 2.024-39 2.750 5.531 EY 6.5-4-3571X
3
1610 1.960-10 2.750 5.125 EY 5-4-5281X
3
1610 1.962-10 2.750 5.938 EY 5-4-5321X
3
1610 2.024-39 2.750 5.125 EY 5-4-6951X
3
1610 2.024-39 2.750 5.938 EY 5-4-6961X
High angle yoke
3
1710 1.960-10 2.750 5.250 EY 6-4-3221
3
1710 1.960-10 2.750 5.250 EY 6-4-4361X
3
1710 1.960-10 2.750 6.500 EY 6-4-4481X
High angle yoke
3
1710 2.024-39 2.750 6.500 EY 6-4-5501-1
High angle yoke
3
1710 2.024-39 2.750 6.500 EY 6-4-6871-1X
High angle yoke
3
1710 2.024-39 2.750 6.500 EY 6-4-6871X
3
1710 2.024-39 2.750 4.812 EY 6-4-6941X
3
1710 2.024-39 2.750 5.250 EY 6-4-6951X
3
1810 2.024-39 2.750 5.625 EY 6.5-4-3571-1X
3
1810 2.024-39 2.750 5.531 EY 6.5-4-3571X
SUHF
1
1760 2.374-46 3.250 5.438 EY 6.3-4-101
1
1760 2.374-46 3.250 5.438 EY 6.3-4-101-1
1
1810 2.374-46 3.250 5.438 EY 6.5-4-2701
1
1810 2.374-46 3.250 5.438 EY 6.5-4-2701-1
