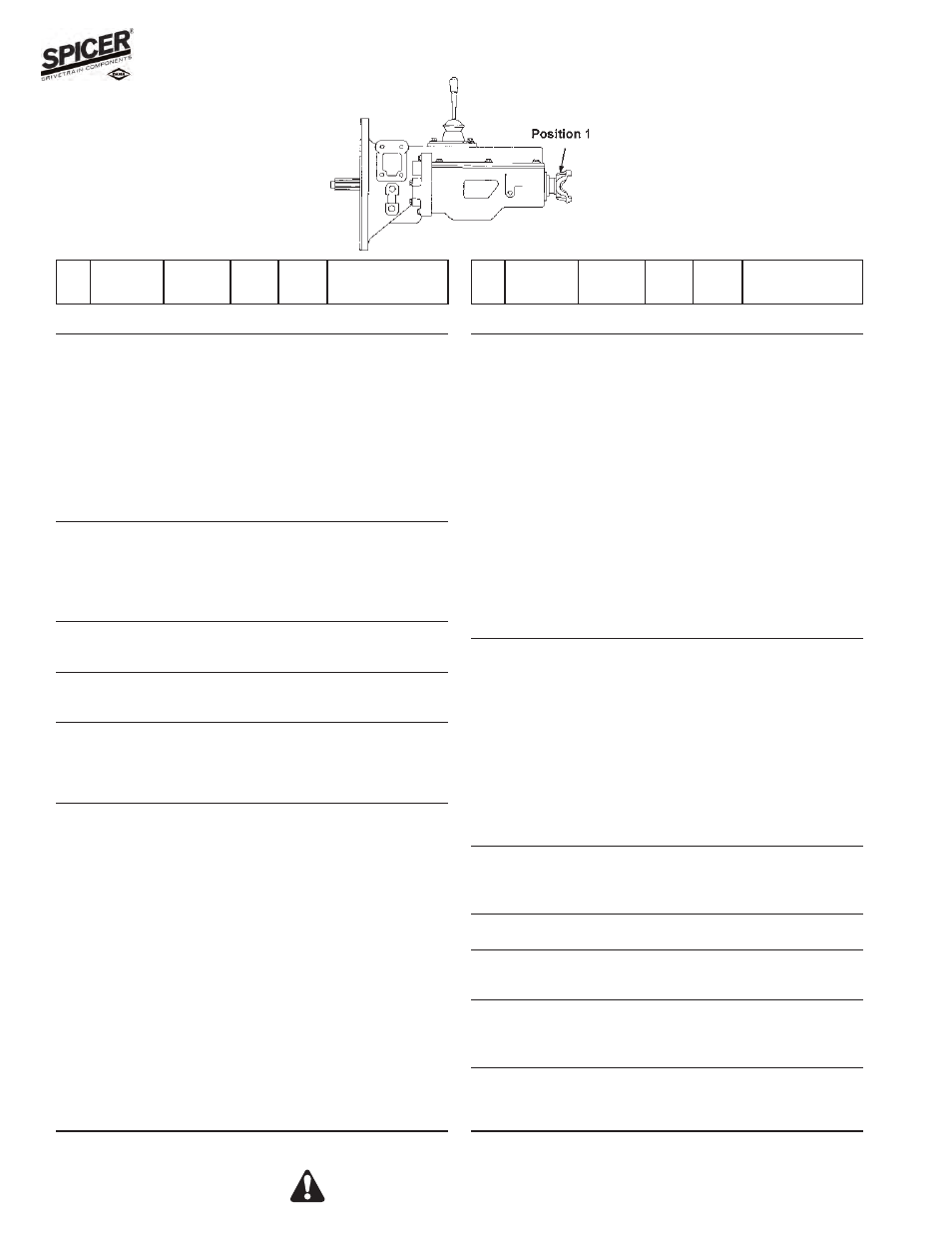

*C/L to End of Hub for EY (End Yoke); Flange Face to End of Hub for CF (Companion Flange)
•Hub machined for spedometer gear
106
J300-P10
Important: See Safety Information in General Information Section (J300P-GI)
Pos
Series
Spline
Data
Hub
Dia
*C/L to
End of
Hub
End Fitting
Part Number
Pos
Series
Spline
Data
Hub
Dia
*C/L to
End of
Hub
End Fitting
Part Number
Important: See Safety Information in General Information Section (J300P-GI)
Allison
MT-654
1
1710 2.390-46 3.500 4.547 CF 6-1-4671
1
SPL140 2.390-46 3.500 5.920 EY 140-4-751-1
1
SPL250 2.390-46 3.500 6.560 EY 250-4-471-1
1
1610 2.390-46 3.500 6.125 EY 5-4-4861
1
1610 2.390-46 3.500 6.125 EY 5-4-4861-1
1
1710 2.390-46 3.500 5.750 EY 6-4-4771-1
1
1760 2.390-46 3.500 6.000 EY 6.3-4-381
1
1760 2.390-46 3.500 6.000 EY 6.3-4-381-1
1
1810 2.390-46 3.500 6.156 EY 6.5-4-2541
1
1810 2.390-46 3.500 6.156 EY 6.5-4-2541-1
MT-654CR
1
1710 2.390-46 3.500 4.547 CF 6-1-4671
1
1610 2.390-46 3.500 6.125 EY 5-4-4861
Can be used w/brake
1
1710 2.390-46 3.500 5.750 EY 6-4-4771
1
1810 2.390-46 3.500 6.156 EY 6.5-4-2541
MTB-644, MTB-654
1
1810 2.364-18 3.750 5.625 EY 6.5-4-4211-1
Fits trans w/retarder•
1000
1
SPL55 1.790-34 2.564 4.870 EY 5001480
Contains plug/washer #231059
10001
1
SPL70 1.790-34 2.564 5.530 EY 70-4-181-1
Can be used w/brake; Flanged yoke W/eight, 7-73-620 bolts
1
SPL70 1.790-34 2.564 5.530 EY 70-4-191-1X
Can be used w/brake; Flanged yoke W/eight, 7-73-620 bolts
2000
1
SPL55 1.790-34 2.564 4.870 EY 5001480
Contains plug/washer #231059
Clark
CL-450
1 1480/1550 1.750-10 2.500 2.734 CF 4-1-5131
1 1480/1550 1.750-10 2.500 3.547 CF 4-1-5211X
Assembly includes four 8-73-226 bolts
1 1480/1550 1.750-10 2.500 3.547 CF 4-1-7001
1
SPL70 1.750-10 2.500 5.750 EY 70-4-161-1
1
SPL70 1.750-10 2.500 5.750 EY 70-4-171-1X
Flanged yoke W/eight, 7-73-620 bolts
1
SPL90 1.750-10 2.500 4.125 EY 90-4-371-1
1
1480 1.750-10 2.500 5.109 EY 3-4-11561-1
Flanged end yoke, strap kit not furnished by Dana
1
1480 1.750-10 2.500 4.000 EY 3-4-11871-2
Attaching hardware by OEM
1
1480 1.750-10 2.500 4.000 EY 3-4-9271-1
1
1550 1.750-10 2.500 4.125 EY 4-4-4781-1
1
1550 1.750-10 2.500 4.125 EY 4-4-4781-2
Attaching hardware by OEM
1
1550 1.750-10 2.500 4.115 EY 4-4-6791-2
Attaching hardware by OEM
1
1610 1.750-10 2.500 4.125 EY 5-4-7631-1
CL-550
1
SPL140 1.962-10 2.750 5.810 EY 140-4-181-1
1
SPL90 1.962-10 2.750 4.984 EY 90-4-381-1
1
1550 1.962-10 2.750 5.000 EY 4-4-4771-2
Attaching hardware by OEM
1
1550 1.750-10 2.500 4.290 EY 4-4-5251-1
1
1550 1.962-10 2.750 5.000 EY 4-4-6781-2
Attaching hardware by OEM
1
1610 1.962-10 2.750 5.281 EY 5-4-7041-1
1
1610 1.750-10 2.500 4.720 EY 5-4-7581-1
1
1610 1.962-10 2.750 5.281 EY 5-4-8361-1
1
1710 1.962-10 2.750 5.156 EY 6-4-3831
1
1710 1.962-10 2.750 5.156 EY 6-4-3831-1
204-V, 204-VO, 205-V, 205-VO, 207-VO, 208-V, 230-F,
231-F, 233-F, 264-V, 264-VO, 265-V, 265-VO
1 1350/1410 1.500-10 2.125 2.562 CF 3-1-1151
1 1480/1550 1.500-10 2.125 2.625 CF 4-1-2701
270-V, 270-VO
1 1480/1550 1.750-10 2.250 2.750 CF 4-1-1381
271-T
1 1350/1410 1.500-10 2.125 2.562 CF 3-1-1151
1 1480/1550 1.500-10 2.125 2.625 CF 4-1-2701
280-V, 282-V, 285-V, 288-V, 289-V, 290-V, 290-VO,
291-V, 303-X, 320-V, 320-VO, 325-V, 327-V, 328-V,
330-F, 330-FO, 331-F, 332-F, 333-F, 334-F
1 1480/1550 1.750-10 2.250 2.750 CF 4-1-1381
390
1
1550 1.962-10 2.750 5.000 EY 4-4-4771-2
Attaching hardware by OEM
1
1610 1.962-10 2.750 5.281 EY 5-4-7041-1
Main Transmissions — Allison & Clark
