Spicer DRIVELINE COMPONENTS CATALOG FLANGE & END YOKE APPLICATIONS - Manual (Page 49)

*(C/L to End of Hub for EY (End Yoke); Flange Face to End of Hub for CF (Companion Flange))
48
J300-P10
Important: See Safety Information in General Information Section (J300P-GI) Important: See Safety Information in General Information Section (J300P-GI)
Pos Series
Spline
Data
Hub
Dia
*C/L to
End of
Hub
End Fitting
Part Number
Pos Series
Spline
Data
Hub
Dia
*C/L to
End of
Hub
End Fitting
Part Number
Important: See Safety Information in General Information Section (J300P-GI)

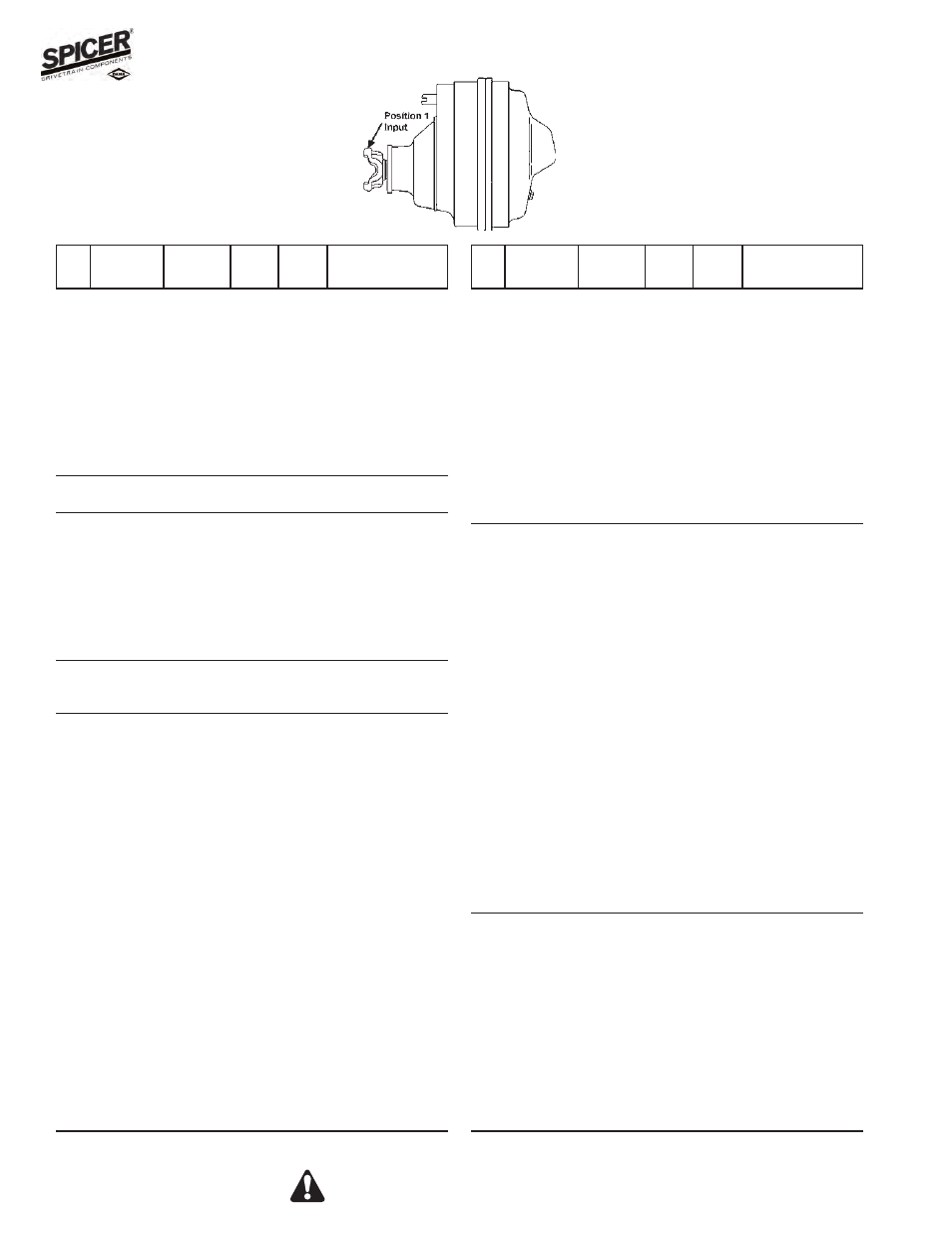

Single Axles — Spicer ®
26121, 26221, 26321, 26421, 26426
1 1610 2.149-16 2.938 6.250 EY 5-4-5161-1X
1 1610 2.149-16 2.938 6.250 EY 5-4-5161X
1 1710 2.149-16 2.938 5.500 EY 6-4-4171-1X
1 1710 2.149-16 2.938 5.500 EY 6-4-4171X
1 1760 2.149-16 2.938 5.812 EY 6.3-4-141
1 1760 2.149-16 2.938 5.812 EY 6.3-4-141-1
1 1760 2.149-16 2.938 5.812 EY 6.3-4-251-1X
1 1760 2.149-16 2.938 5.812 EY 6.3-4-251X
1 1810 2.149-16 2.938 5.812 EY 6.5-4-2401-1X
1 1810 2.149-16 2.938 5.812 EY 6.5-4-2401X
28
1 1310 1.026-23 1.552 3.000 EY 2-4-6131-1X
30
1 1280/1310 1.146-26 1.554 2.594 CF 2-1-1881X
1 1310 1.146-26 1.552 3.406 EY 2-4-5251X
Spec. yoke w/1.125 dia. brg. caps
1 1310 1.146-26 1.552 3.000 EY 2-4-8091-1X
1 1310 1.146-26 1.552 3.000 EY 2-4-8091X
1 1330 1.146-26 1.562 3.000 EY 2-4-3581-1X
Coupling shaft yoke
1 1330 1.146-26 1.562 3.000 EY 2-4-6111X
300-S
1 1810 2.364-36 3.500 5.230 EY 6.5-4-4471-1
1 1810 2.364-36 3.500 5.230 EY 6.5-4-4481-1X
30055-P
1 1810 2.143-41 2.939 3.500 CF 6.5-1-2941
1 1710 2.143-41 2.938 5.190 EY 6-4-7311
1 1710 2.143-41 2.938 5.190 EY 6-4-7311-1
1 1710 2.143-41 2.938 6.125 EY 6-4-7551
High angle yoke
1 1710 2.143-41 2.938 6.125 EY 6-4-7551-1
High angle yoke
1 1710 2.143-41 2.938 5.190 EY 6-4-9171-1X
1 1710 2.143-41 2.938 5.190 EY 6-4-9171X
1 1710 2.143-41 2.938 6.125 EY 6-4-9181-1X
High angle yoke
1 1710 2.143-41 2.938 6.125 EY 6-4-9181X
High angle yoke
1 1760 2.143-41 2.938 5.250 EY 6.3-4-1061
1 1760 2.143-41 2.938 5.250 EY 6.3-4-1061-1
1 1760 2.143-41 2.938 5.250 EY 6.3-4-1631-1X
1 1810 2.143-41 2.938 5.250 EY 6.5-4-4601-1X
1 1810 2.143-41 2.938 5.250 EY 6.5-4-4601X
1 SPL140 2.143-41 2.938 5.560 EY 140-4-421-1
1 SPL140 2.143-41 2.938 5.560 EY 140-4-431-1X
1 SPL170 2.143-41 2.938 5.320 EY 170-4-351-1
1 SPL170 2.143-41 2.938 5.320 EY 170-4-361-1X
1 SPL170 2.143-41 2.938 6.680 EY 170-4-371-1
High angle yoke
30055-P (Continued)
1 SPL170 2.143-41 2.938 6.680 EY 170-4-381-1X
High angle yoke
1 SPL250 2.143-41 2.938 5.490 EY 250-4-131-1
1 SPL250 2.143-41 2.938 5.490 EY 250-4-141-1X
1 SPL90 2.141-41 2.938 4.562 EY 90-4-471-1
1 SPL90 2.141-41 2.938 4.562 EY 90-4-691-1X
1 1550 2.143-41 2.938 4.500 EY 4-4-5581-1
1 1610 2.143-41 2.938 5.250 EY 5-4-7271-1
1 1610 2.143-41 2.938 6.000 EY 5-4-7561
1 1610 2.143-41 2.938 6.000 EY 5-4-7561-1
1 1610 2.143-41 2.938 5.250 EY 5-4-9111-1X
1 1610 2.143-41 2.938 6.000 EY 5-4-9121-1X
1 1610 2.143-41 2.938 6.000 EY 5-4-9121X
30080-A
1 SPL100 2.281-44 2.938 4.469 EY 100-4-1381-1X
1 SPL140 2.274-44 2.938 5.190 EY 140-4-1191-1
1 SPL140 2.274-44 2.938 5.190 EY 140-4-1201-1X
1 SPL140 2.274-44 2.938 5.190 EY 140-4-441-1
1 SPL140 2.274-44 2.938 5.190 EY 140-4-451-1X
1 SPL170 2.274-44 2.938 5.094 EY 170-4-21-1
1 SPL170 2.274-44 2.938 5.094 EY 170-4-31-1X
1 SPL250 2.274-44 2.938 5.328 EY 250-4-31-1
1 SPL250 2.274-44 2.938 5.328 EY 250-4-41-1X
1 SPL90 2.281-44 2.938 4.469 EY 90-4-281-1
1 1610 2.274-44 2.938 4.844 EY 5-4-8021-1
1 1610 2.274-44 2.938 4.844 EY 5-4-9101-1X
1 1710 2.274-44 2.938 5.031 EY 6-4-7961
1 1710 2.274-44 2.938 5.031 EY 6-4-7961-1
1 1710 2.274-44 2.938 5.031 EY 6-4-9161-1X
1 1710 2.274-44 2.938 5.031 EY 6-4-9161X
1 1760 2.274-44 2.938 5.094 EY 6.3-4-1321
1 1760 2.274-44 2.938 5.094 EY 6.3-4-1321-1
1 1760 2.274-44 2.938 5.094 EY 6.3-4-1621-1X
1 1760 2.274-44 2.938 5.094 EY 6.3-4-1621X
1 1810 2.274-44 2.938 5.090 EY 6.5-4-4081-1
1 1810 2.274-44 2.938 5.090 EY 6.5-4-4591-1X
30080-D, 30080-S
1 SPL100 2.281-44 2.938 4.469 EY 100-4-1381-1X
1 SPL140 2.274-44 2.938 5.190 EY 140-4-1191-1
1 SPL140 2.274-44 2.938 5.190 EY 140-4-1201-1X
1 SPL140 2.143-41 2.938 5.560 EY 140-4-421-1
1 SPL140 2.143-41 2.938 5.560 EY 140-4-431-1X
1 SPL140 2.274-44 2.938 5.190 EY 140-4-441-1
1 SPL140 2.274-44 2.938 5.190 EY 140-4-451-1X
1 SPL170 2.274-44 2.938 5.094 EY 170-4-21-1
1 SPL170 2.274-44 2.938 5.094 EY 170-4-31-1X
1 SPL170 2.143-41 2.938 6.680 EY 170-4-371-1
High angle yoke
