Spicer DRIVELINE COMPONENTS CATALOG FLANGE & END YOKE APPLICATIONS - Manual (Page 13)

*C/L to End of Hub for EY (End Yoke); Flange Face to End of Hub for CF (Companion Flange)
•Hub machined for spedometer gear
12
J300-P10
Important: See Safety Information in General Information Section (J300P-GI) Important: See Safety Information in General Information Section (J300P-GI)

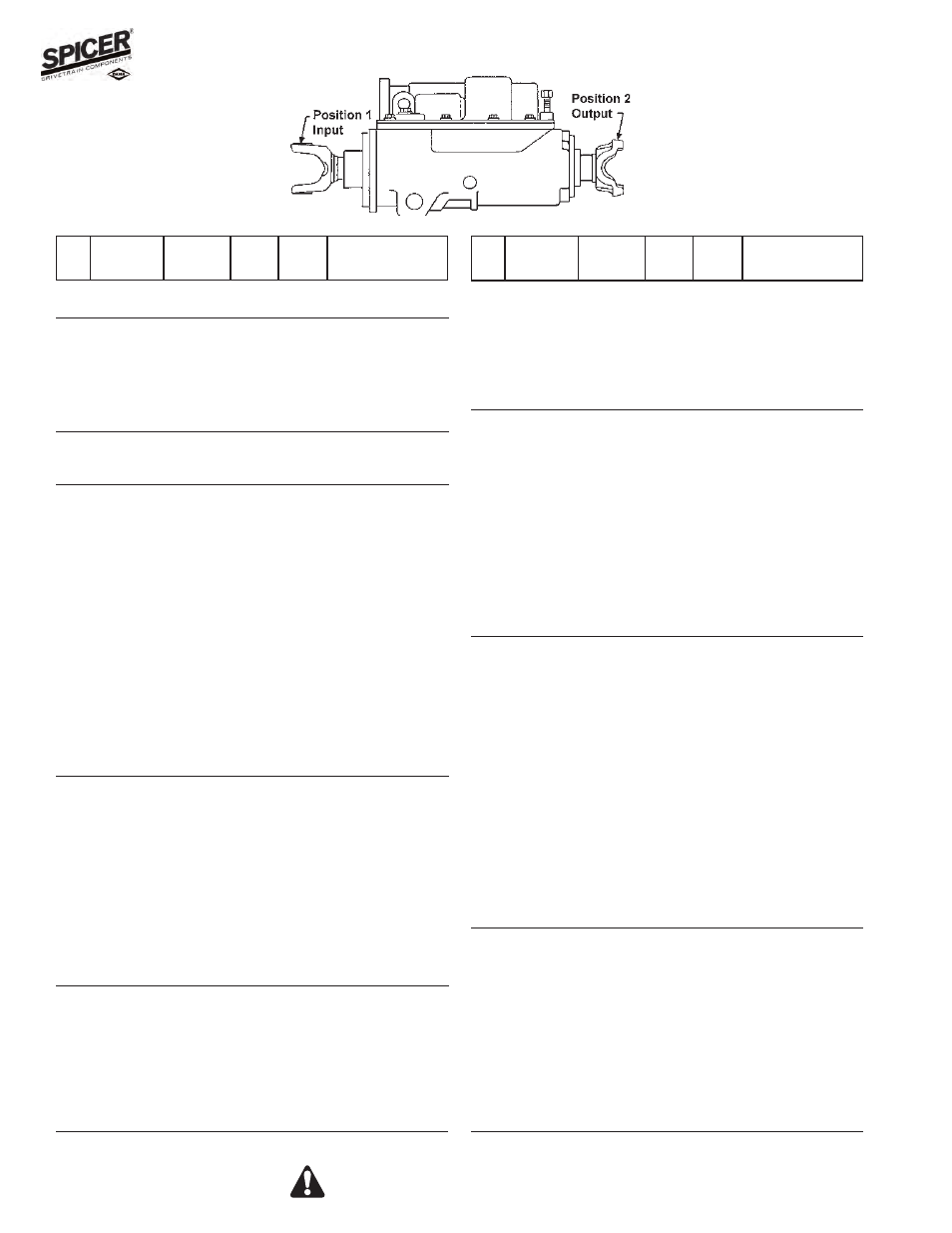

Pos Series
Spline
Data
Hub
Dia
* to
End of
Hub
End Fitting
Part Number
Pos Series
Spline
Data
Hub
Dia
* to
End of
Hub
End Fitting
Part Number
Important: See Safety Information in General Information Section (J300P-GI)
Single Axles — Axle Alliance Corp & Clark
Axle Alliance Corp.
4
1 SPL100 2.143-41 3.000 4.310 EY 5002874
1 SPL100 2.143-41 3.000 4.310 EY 5002875
1 1610 2.143-41 3.000 4.680 EY 5002873
Clark
FDS-12050
1 1710 2.005-15 2.875 5.250 EY 6.5-4-2911
1 1710 2.005-15 2.875 5.375 EY 6-4-3001
1614, 1615, 1618, 1619, 16500, 16501, 16600, 16601,
16802, 16803, 17800, 17801, 1790-A, 1791-A, 1792,
1793, 1862,
1 1350/1410 1.750-10 2.625 3.125 CF 3-1-1521
1 1480/1550 1.750-10 2.625 2.875 CF 4-1-3101
1 1610 1.750-10 2.625 2.875 CF 5-1-811
1 1410 1.750-10 2.625 4.250 EY 3-4-2511-1
.250 deep spline chamfer
1 1480 1.750-10 2.625 4.469 EY 3-4-3121-1
1 1480 1.750-10 2.625 4.281 EY 3-4-5791-1X
.250 deep spline chamfer
1 1550 1.750-10 2.625 4.672 EY 4-4-3581-1X
.250 deep spline chamfer
1 1610 1.750-10 2.625 4.125 EY 5-4-781
1 1650 1.750-10 2.625 4.375 EY 5-4-4161X
Chamfered Counterbore
1 1710 1.750-10 2.625 4.500 EY 6-4-5581X
Chamfered Counterbore
1863
1 1350/1410 1.750-10 2.625 3.125 CF 3-1-1521
1 1480/1550 1.750-10 2.625 2.875 CF 4-1-3101
1 1610 1.750-10 2.625 2.875 CF 5-1-811
1 1480 1.750-10 2.625 4.281 EY 3-4-5791-1X
.250 deep spline chamfer
1 1550 1.750-10 2.625 4.672 EY 4-4-3581-1X
.250 deep spline chamfer
1 1610 1.750-10 2.625 4.125 EY 5-4-781
1 1650 1.750-10 2.625 4.375 EY 5-4-4161X
Chamfered Counterbore
1 1710 1.750-10 2.625 4.500 EY 6-4-5581X
Chamfered Counterbore
18802
1 1350/1410 1.750-10 2.625 3.125 CF 3-1-1521
1 1480/1550 1.750-10 2.625 2.875 CF 4-1-3101
1 1610 1.750-10 2.625 2.875 CF 5-1-811
1 1410 1.750-10 2.625 4.250 EY 3-4-2511-1
.250 deep spline chamfer
1 1480 1.750-10 2.625 4.469 EY 3-4-3121-1
1 1480 1.750-10 2.625 4.281 EY 3-4-5791-1X
.250 deep spline chamfer
18802 (Continued)
1 1550 1.750-10 2.625 4.672 EY 4-4-3581-1X
.250 deep spline chamfer
1 1610 1.750-10 2.625 4.125 EY 5-4-781
1 1650 1.750-10 2.625 4.375 EY 5-4-4161X
Chamfered Counterbore
1 1710 1.750-10 2.625 4.500 EY 6-4-5581X
Chamfered Counterbore
18803
1 1350/1410 1.750-10 2.625 3.125 CF 3-1-1521
1 1480/1550 1.750-10 2.625 2.875 CF 4-1-3101
1 1610 1.750-10 2.625 2.875 CF 5-1-811
1 1410 1.750-10 2.625 4.250 EY 3-4-2511-1
.250 deep spline chamfer
1 1480 1.750-10 2.625 4.469 EY 3-4-3121-1
1 1480 1.750-10 2.625 4.281 EY 3-4-5791-1X
.250 deep spline chamfer
1 1610 1.750-10 2.625 4.125 EY 5-4-781
1 1650 1.750-10 2.625 4.375 EY 5-4-4161X
Chamfered Counterbore
1 1710 1.750-10 2.625 4.500 EY 6-4-5581X
Chamfered Counterbore
1892, 1893, 1910, 1911. 19502, 19503, 2010, 2011,
20502, 20503, 2590, 2591, 2613, 2614, 2615, 2616,
2695, 2696, 6802, 6803
1 1350/1410 1.750-10 2.625 3.125 CF 3-1-1521
1 1480/1550 1.750-10 2.625 2.875 CF 4-1-3101
1 1610 1.750-10 2.625 2.875 CF 5-1-811
1 1410 1.750-10 2.625 4.250 EY 3-4-2511-1
.250 deep spline chamfer
1 1480 1.750-10 2.625 4.469 EY 3-4-3121-1
1 1480 1.750-10 2.625 4.281 EY 3-4-5791-1X
.250 deep spline chamfer
1 1550 1.750-10 2.625 4.672 EY 4-4-3581-1X
.250 deep spline chamfer
1 1610 1.750-10 2.625 4.125 EY 5-4-781
1 1650 1.750-10 2.625 4.375 EY 5-4-4161X
Chamfered Counterbore
1 1710 1.750-10 2.625 4.500 EY 6-4-5581X
Chamfered Counterbore
7800
1 1350/1410 1.750-10 2.625 3.125 CF 3-1-1521
1 1480/1550 1.750-10 2.625 2.875 CF 4-1-3101
1 1610 1.750-10 2.625 2.875 CF 5-1-811
1 1410 1.750-10 2.625 4.250 EY 3-4-2511-1
.250 deep spline chamfer
1 1480 1.750-10 2.625 4.469 EY 3-4-3121-1
1 1480 1.750-10 2.625 4.281 EY 3-4-5791-1X
.250 deep spline chamfer
1 1610 1.750-10 2.625 4.125 EY 5-4-781
1 1650 1.750-10 2.625 4.375 EY 5-4-4161X
Chamfered Counterbore
