Clark – Spicer DRIVELINE COMPONENTS CATALOG FLANGE & END YOKE APPLICATIONS User Manual
Page 53

Important: See Safety Information in General Information Section (J300P-GI)
*(C/L to End of Hub for EY (End Yoke); Flange Face to End of Hub for CF (Companion Flange))
52
J300-P10
Important: See Safety Information in General Information Section (J300P-GI)
Pos
Series
Spline
Data
Hub
Dia
* to
End of
Hub
End Fitting
Part Number
Pos
Series
Spline
Data
Hub
Dia
* to
End of
Hub
End Fitting
Part Number
Important: See Safety Information in General Information Section (J300P-GI)

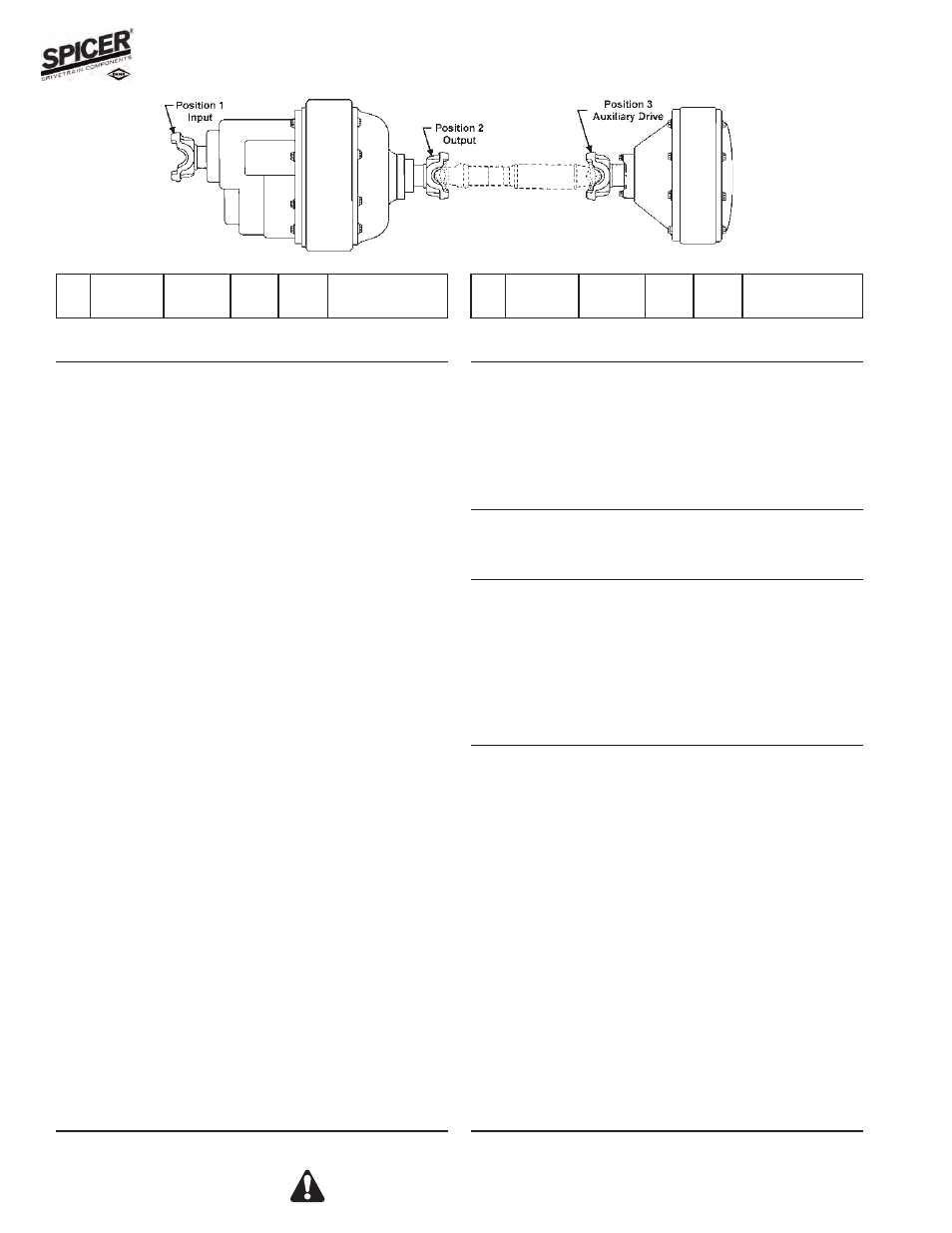

Tandem Axles — Axle Alliance Corporation & Clark
Axle Alliance Corporation
4
3
SPL100 2.143-41 3.000 4.310 EY 5002874
3
SPL100 2.143-41 3.000 4.310 EY 5002875
3
1610 2.143-41 3.000 4.680 EY 5002873
3
1710 2.143-41 3.000 5.380 EY 5002876
High angle yoke
3
1710 2.143-41 3.000 5.380 EY 5002877
High angle yoke
Clark
BD-100000, BD-101000
1
1710 2.631-25 3.625 5.250 EY 6-4-3021
1
1810 2.631-25 3.625 5.781 EY 6.5-4-2181
Counterbore at hub end.
2
1710 2.005-15 2.875 5.375 EY 6-4-3001
2
1810 2.005-15 2.875 5.250 EY 6.5-4-2911
3
1710 2.631-25 3.625 5.250 EY 6-4-3021
3
1810 2.631-25 3.625 5.781 EY 6.5-4-2181
Counterbore at hub end.
BD-45-60, BD-50-60
1
1710 2.005-15 2.875 5.375 EY 6-4-3001
2
1710 1.775-16 2.375 4.750 EY 6-4-4271
3
1710 2.005-15 2.875 5.375 EY 6-4-3001
BD-50-70, BD-57000, BD-65000, BD-65200, BD-70000,
BD-71000, BD-80-120, BD-90000, BD-91000
1
1710 2.631-25 3.625 5.250 EY 6-4-3021
1
1810 2.631-25 3.625 5.781 EY 6.5-4-2181
Counterbore at hub end.
2
1710 2.005-15 2.875 5.375 EY 6-4-3001
2
1810 2.005-15 2.875 5.250 EY 6.5-4-2911
3
1710 2.631-25 3.625 5.250 EY 6-4-3021
3
1810 2.631-25 3.625 5.781 EY 6.5-4-2181
Counterbore at hub end.
BE-45-60
1
1710 2.005-15 2.875 5.375 EY 6-4-3001
2
1710 1.775-16 2.375 4.750 EY 6-4-4271
3
1710 2.005-15 2.875 5.375 EY 6-4-3001
