*(C/L to End of Hub for EY (End Yoke); Flange Face to End of Hub for CF (Companion Flange))
30
J300-P10
Important: See Safety Information in General Information Section (J300P-GI)
Important: See Safety Information in General Information Section (J300P-GI)
Pos
Series
Spline
Data
Hub
Dia
*C/L to
End of
Hub
End Fitting
Part Number
Pos
Series
Spline
Data
Hub
Dia
*C/L to
End of
Hub
End Fitting
Part Number
Important: See Safety Information in General Information Section (J300P-GI)

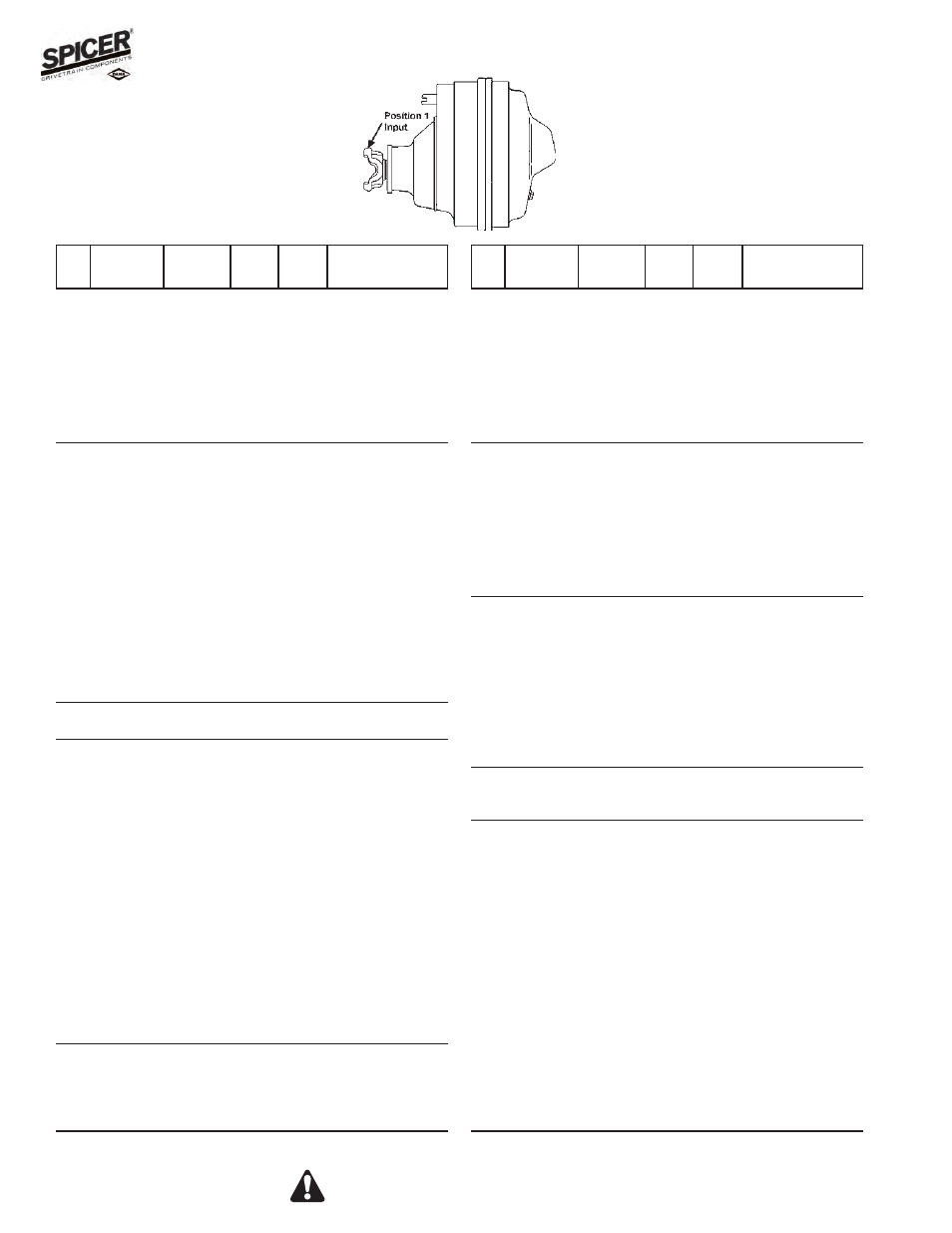

Single Axles — Spicer
®
S230-S, S300-S
1
SPL170 2.364-36 3.500 5.270 EY 170-4-1031-1
1
SPL170 2.364-36 3.500 5.270 EY 170-4-1041-1X
1
1710 2.364-36 3.500 5.234 EY 6-4-8791-1
1
1710 2.364-36 3.500 5.234 EY 6-4-8801-1X
1
1760 2.364-36 3.500 5.230 EY 6.3-4-1601-1
1
1760 2.364-36 3.500 5.230 EY 6.3-4-1611-1X
1
1810 2.364-36 3.500 5.230 EY 6.5-4-4471-1
1
1810 2.364-36 3.500 5.230 EY 6.5-4-4481-1X
S400
1
SPL170 2.024-39 3.000 5.031 EY 170-4-841-1
1
SPL170 2.024-39 3.000 5.031 EY 170-4-861-1X
1
SPL250 2.024-39 3.000 5.240 EY 250-4-381-1
1
1610 2.024-39 3.000 6.000 EY 5-4-9291-1
High angle yoke
1
1610 2.024-39 3.000 6.000 EY 5-4-9311-1X
High angle yoke
1
1710 2.024-39 3.000 6.000 EY 6-4-9291-1
High angle yoke
1
1710 2.024-39 3.000 6.000 EY 6-4-9301-1X
High angle yoke
1
1710 2.024-39 3.000 4.656 EY 6-4-9421-1
1
1710 2.024-39 3.000 4.656 EY 6-4-9431-1X
1
1760 2.024-39 3.000 5.625 EY 6.3-4-1701-1
1
1810 2.024-39 3.000 5.000 EY 6.5-4-4651-1
W190-S, W190-T, W210-T, W220-S, W220-T
1
1710 1.998-38 3.000 4.840 EY 6-4-9951-1
W230-S
1
SPL170 2.364-36 3.000 5.470 EY 170-4-1011-1
1
SPL170 2.364-36 3.000 5.470 EY 170-4-1021-1X
1
SPL90 2.364-36 3.000 4.812 EY 90-4-601-1
1
SPL90 2.364-36 3.000 4.812 EY 90-4-611-1X
1
1550 2.364-36 3.000 5.078 EY 4-4-7011-1
1
1550 2.364-36 3.000 5.078 EY 4-4-7111-1X
1
1610 2.364-36 3.000 5.156 EY 5-4-8621-1
1
1610 2.364-36 3.000 5.156 EY 5-4-8631-1X
1
1710 2.364-36 3.000 5.438 EY 6-4-5711
1
1710 2.364-36 3.000 5.438 EY 6-4-8691-1
1
1710 2.364-36 3.000 5.438 EY 6-4-8701-1X
1
1760 2.364-36 3.000 5.438 EY 6.3-4-1531-1
1
1760 2.364-36 3.000 5.438 EY 6.3-4-1541-1X
1
1810 2.364-36 3.000 5.438 EY 6.5-4-3161
1
1810 2.364-36 3.000 5.438 EY 6.5-4-3651X
1
1810 2.364-36 3.000 5.438 EY 6.5-4-4411-1
1
1810 2.364-36 3.000 5.438 EY 6.5-4-4421-1X
13101
1
1480 1.500-10 2.250 4.250 EY 3-4-3781-1
1
1480 1.500-10 2.250 4.250 EY 3-4-6221-1X
15040-P
1
1410 1.790-34 2.625 4.031 EY 3-4-10251-1
1
1480 1.790-34 2.625 4.281 EY 3-4-10261-1
1
1480 1.790-34 2.625 4.281 EY 3-4-11921-1X
1
1550 1.790-34 2.625 4.275 EY 4-4-5551-1
1
1610 1.790-34 2.625 4.750 EY 5-4-7261-1
1
1610 1.790-34 2.625 4.750 EY 5-4-7301-1X
1
1710 1.790-34 2.625 5.438 EY 6-4-7571-1
1
1710 1.790-34 2.625 5.438 EY 6-4-7581-1X
15040-S
1
1480 1.790-34 2.625 4.281 EY 3-4-10261-1
1
1480 1.790-34 2.625 4.281 EY 3-4-10471-1X
1
1550 1.790-34 2.625 4.275 EY 4-4-5551-1
1
1550 1.790-34 2.625 4.275 EY 4-4-5611-1X
1
1610 1.790-34 2.625 4.750 EY 5-4-7261-1
1
1610 1.790-34 2.625 4.750 EY 5-4-7301-1X
1
1710 1.790-34 2.625 5.438 EY 6-4-7571-1
1
1710 1.790-34 2.625 5.438 EY 6-4-7581-1X
15040-T
1
1410 1.790-34 2.625 4.031 EY 3-4-10251-1
1
1480 1.790-34 2.625 4.281 EY 3-4-10261-1
1
1480 1.790-34 2.625 4.281 EY 3-4-11921-1X
1
1550 1.790-34 2.625 4.275 EY 4-4-5551-1
1
1550 1.790-34 2.625 4.275 EY 4-4-5611-1X
1
1610 1.790-34 2.625 4.750 EY 5-4-7261-1
1
1610 1.790-34 2.625 4.750 EY 5-4-7301-1X
1
1710 1.790-34 2.625 5.438 EY 6-4-7571-1
1
1710 1.790-34 2.625 5.438 EY 6-4-7581-1X
15101, 15201, 15301
1
1480 1.500-10 2.250 4.250 EY 3-4-3781-1
1
1480 1.500-10 2.250 4.250 EY 3-4-6221-1X
16121
1
1550 1.750-10 2.625 4.672 EY 4-4-3581-1X
All ratios except 4.33; .250 deep spline chamfer
1
1610 1.962-10 2.625 6.000 EY 5-4-4771X
W/4.33 ratio.; High angle yoke
1
1610 1.750-10 2.625 4.750 EY 5-4-5111-1X
All ratios except 4.33.
1
1610 1.750-10 2.625 4.750 EY 5-4-5111X
All ratios except 4.33.
1
1610 1.962-10 2.625 4.719 EY 5-4-5121X
W/4.33 ratio.
1
1710 1.750-10 2.625 5.250 EY 6-4-4301X
All ratios except 4.33;
Chamfered Counterbore
1
1710 1.962-10 2.625 6.125 EY 6-4-4851X
W/4.33 ratio; High angle yoke
1
1710 1.750-10 2.625 6.125 EY 6-4-4861X
All ratios except 4.33; Chamfered Counterbore; High angle yoke
1
1710 1.962-10 2.625 5.250 EY 6-4-5151X
W/4.33 ratio.
