EXPLORER BALANCES

EN-11

2.7

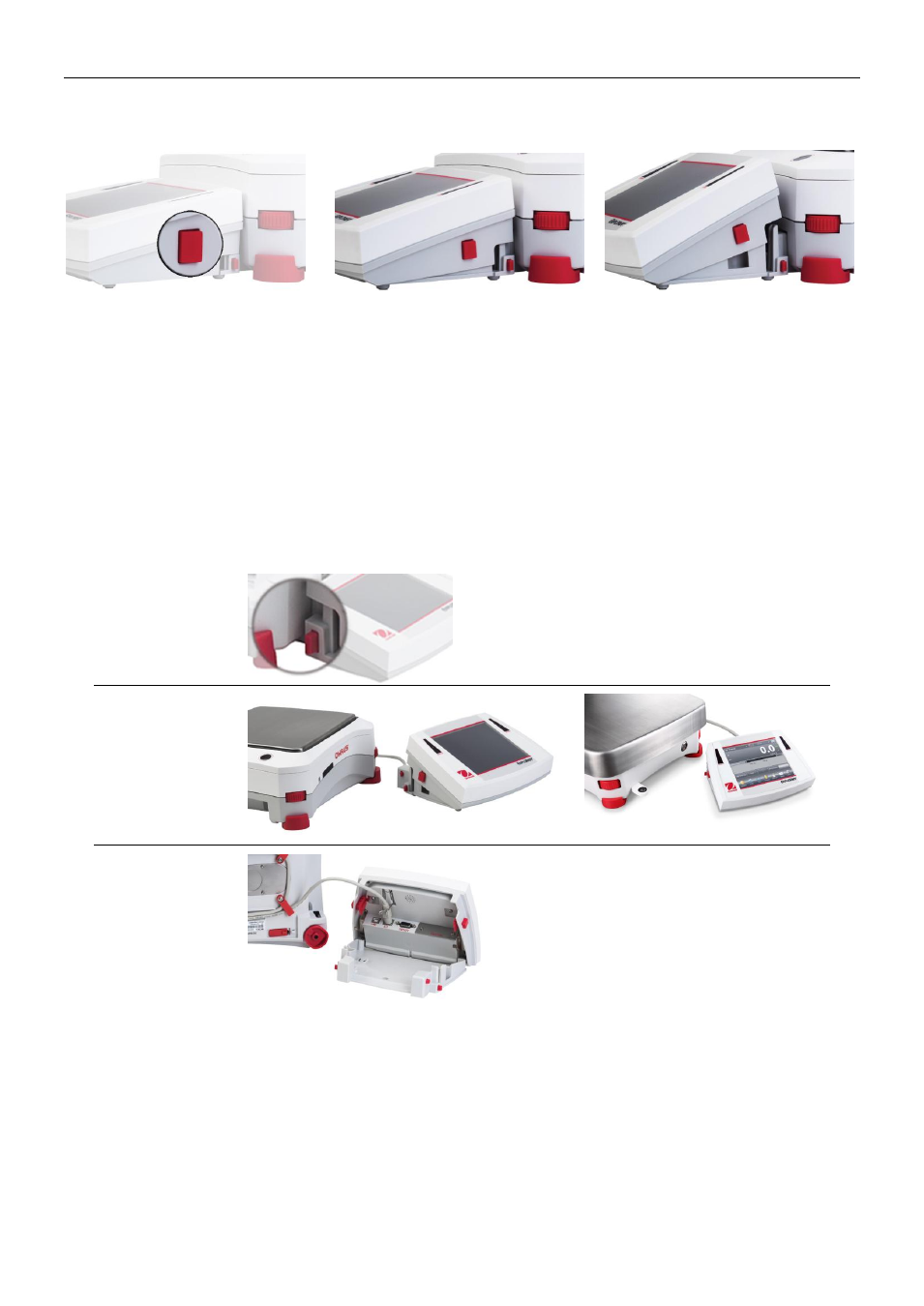

Adjusting the View Angle of the Terminal

To adjust the

Terminal display’s viewing angle, press in the Terminal Adjust buttons on both sides of the Terminal.


2.8

Remote Terminal Operation

The Terminal communicates with the weighing base via the Terminal cable. This cable must be plugged into the
Terminal for the Explorer to display properly. If desired, the Explorer balance may be operated either with the
Terminal attached (as-shipped), or remotely (up to 1 meter away).

2.8.1

Separating the Terminal from the Weighing Base

1.

To detach, press both the Release buttons inward (both at the same time) and gently pull the Terminal
towards you (outward) until the Terminal is detached. These Release buttons disengage the two hooks
holding the Terminal to the Base. A cable is attached to the Terminal. Take care to not damage or
disconnect this cable.

2.

To reattach the Terminal, press in the two Release buttons and slide the Terminal into the Base until the
Terminal hooks click and engage to hold the Terminal in place.

Release Button

Base and Terminal

Terminal Cable


Note:
If a longer operation distance is required, a Terminal Extension cable is available as an accessory.
