EN-106 EXPLORER BALANCES

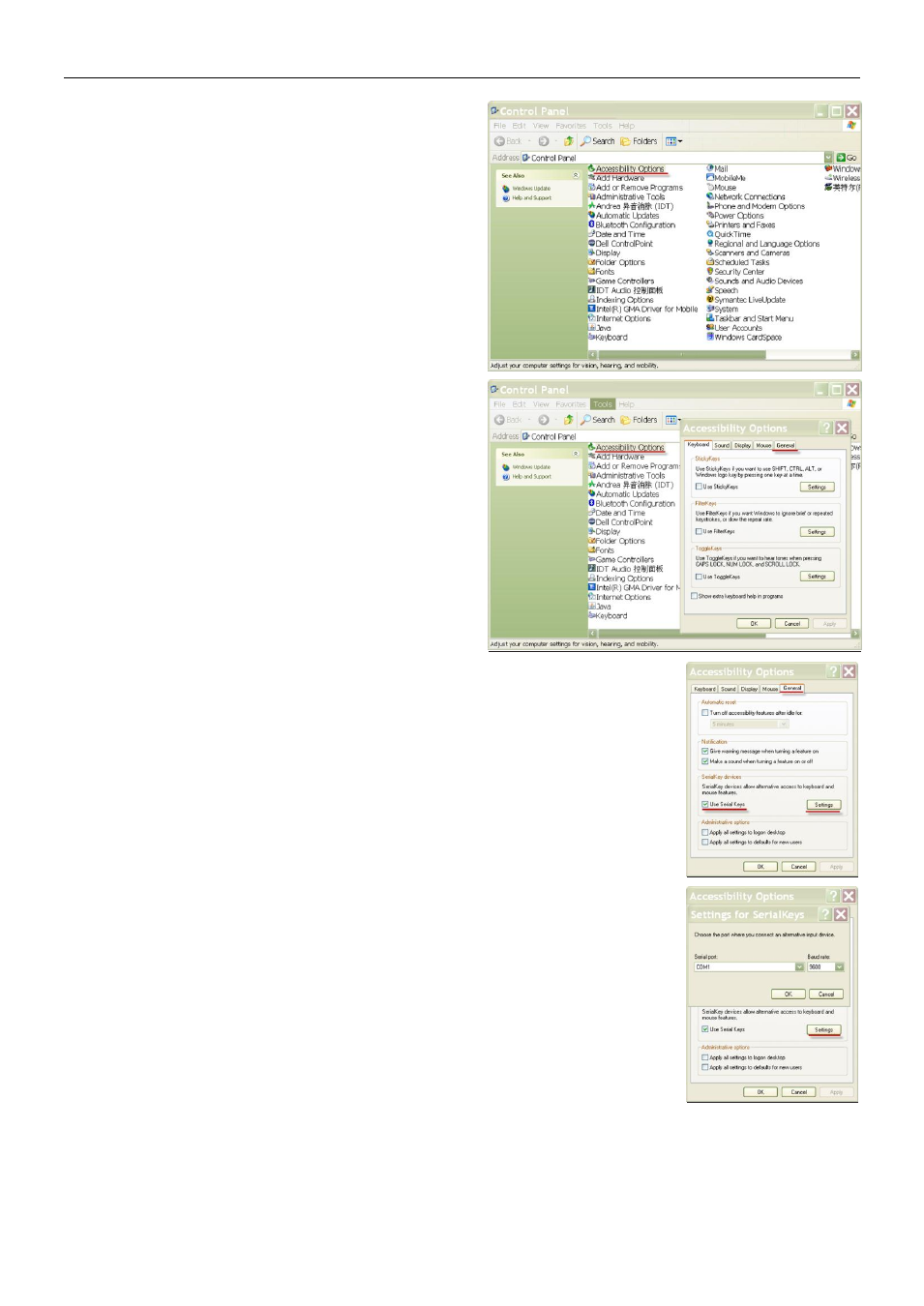

Click the Start Menu in Windows XP system
and click “Settings” –>open Control Panel.
Double click Accessibility Options in
Control Panel.
Select the General tab in
Accessibility Options.
Check Use Serial Keys, and click the Settings button.
Select the Serial Port, and set the Baud rate to 9600.
After selecting, click OK to close setting for serial keys.
Close the Control Panel.
Run Excel to open one blank sheet. Focus the cursor on one item.
At this time, if scale sends data to the PC through the RS232 port, the data
will be put into the cell, and the cursor will automatically move to the next
vertical cell.
Note: If the weighing value is a negative number, set the target cell in
TEXT format. Otherwise, Excel will not distinguish it as a negative number.
