2.5 Connecting Power
2.5.1 Models with AC Adapter
For models supplied with an AC adapter, connect the DC output connector to the power receptacle on the rear of
the base. Then connect the AC power cord to a suitable electrical outlet.
Note: EX12001, EX24001 and EX35001 do not have AC Adapter
Caution: For use with CSA certified (or equivalent approved) power source,
which must have a limited current output.
Note: Allow equipment to warm up for 60 minutes for optimal weighing performance.
Standby: When unit is plugged in, it starts in Standby mode. Press the Standby icon to start.
2.5.2 Models with AC Power Cord
For models with an AC power cord, connect the power cord to a suitable electrical grounded outlet.
2.5.3
Power ON Button on EX12001, EX24001 and EX35001
The models EX12001, EX24001 and EX35001 have no AC Adapter. Just connect the power plug to a suitable
electrical outlet and press the ON button on the side of the base (see figure below).

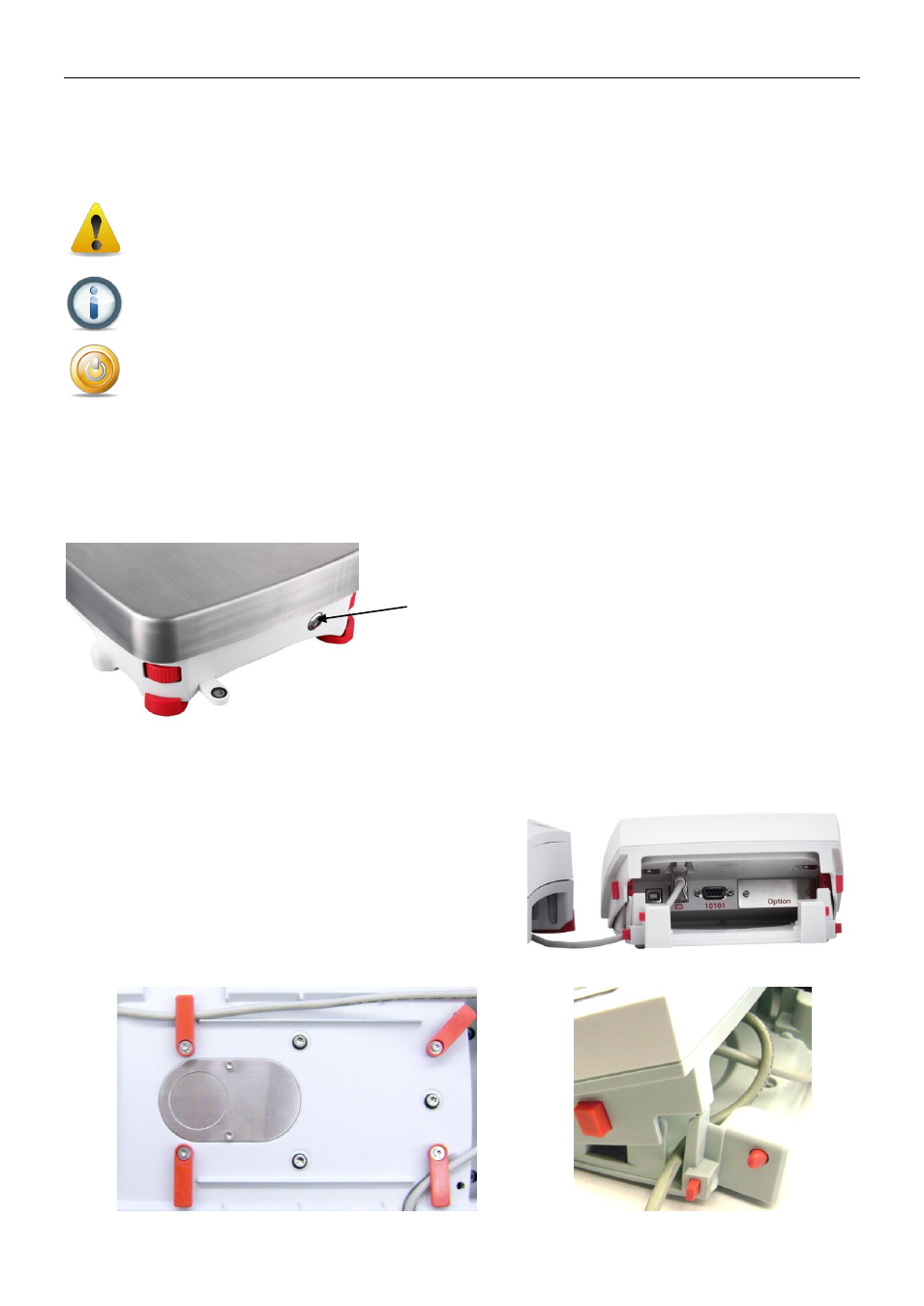

Power ON button on the side of the base (EX12001, EX24001 and EX35001)
2.6 Connecting the Interface
Use the built-in RS-232 (10101) Port to connect either to a
computer or a printer with a standard (straight-through) serial
cable. O
r connect using the scale’s USB port.
Note: For configuration and interface commands, see the
Communication Menu Settings section.
For Connecting, Configuring and Testing the Printer/Computer
Interface, and for sample Print Output Formats, see the Printing
section.
Interface connections on back of Terminal.
Thread printer cable along cable coils on bottom of balance. Or pass cable through groove near release button.
Power ON Button
