Dimensions, Flow scheme pss-5 und pss-5/3 – M&C TechGroup PSS-5_3 Data sheet User Manual
Page 2
M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany
[email protected] • www.mc-techgroup.com • Fon +49 2102 935-0 • Fax +49 2102 935-111
14.5
Technical specifications and illustrations are without
obligation, subject to modifications. 09.95/12.11
255
540
440
4
3
2
4
3
2
1
1
max.1800VA
Kondensat
AUS
AUS
Messgas
EIN
3
6
7
5
4
Electr. terminals
GL25
GL18
< °C
ON
> °C
ECP
Cooler

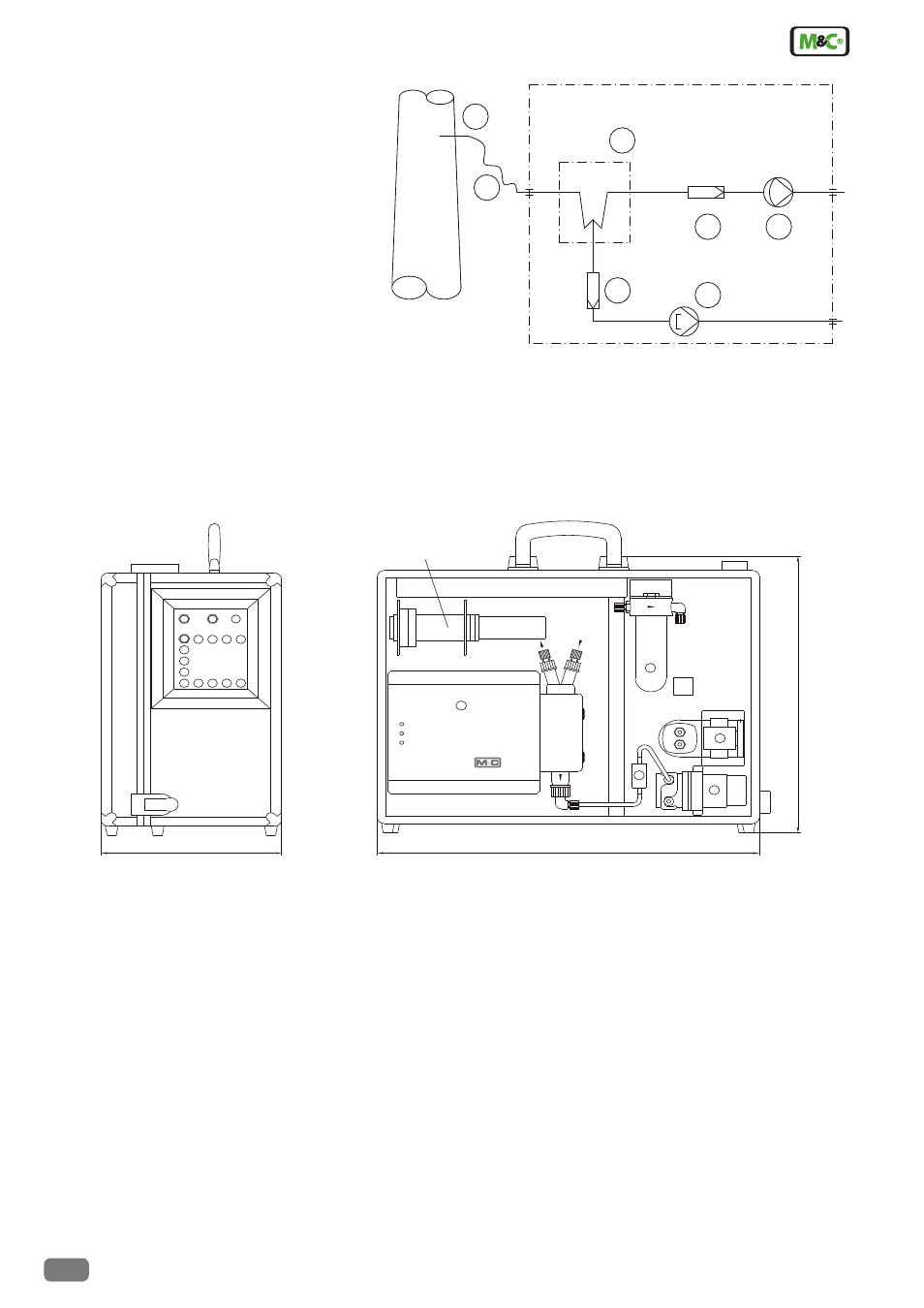

Dimensions
Dimensions in mm
Flow scheme PSS-5 und PSS-5/3
1
Gas sample probe
2
Sample line, 3 m PVC hose
3
Gas cooler ECP 1000 or ECP 3000
4
Fine filter FP-2T, filter porosity 2 µm
5
Gas diaphragm pump N3KPE or N9KPE
6
Pre-filter PF2
7
Peristaltic pump SR25.1
5
4
3
7
6
1
2
