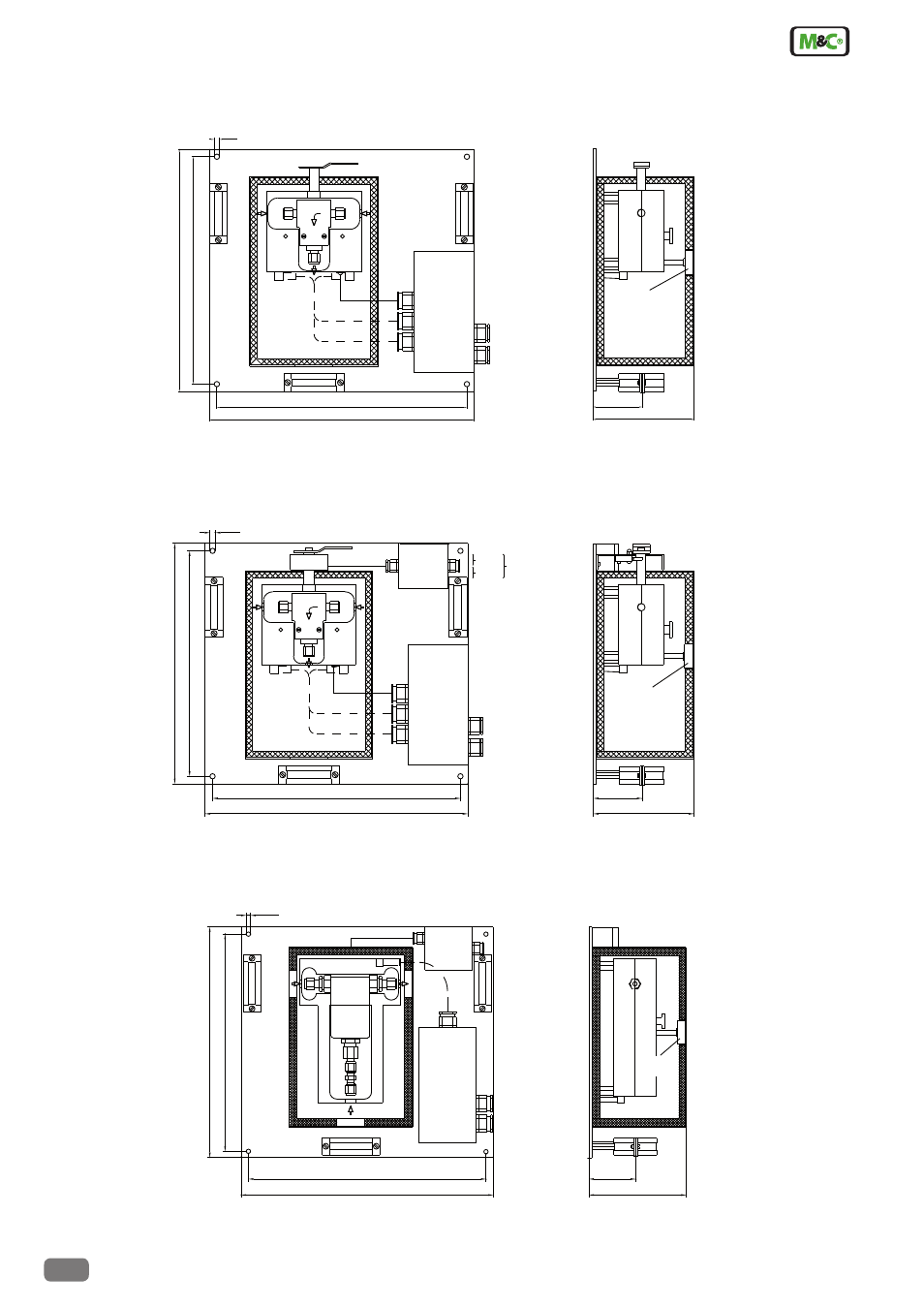

Dimensions
Dimensions in mm
150
58
350
330
320 300
ø 6,5
50-250°C
Indicator
Power in
min. temperature
Alarm contact
Terminals
350
330
320 300
ø 6,5
Power in
min. temperature
Alarm contact
Contact output
position switch right
left
Terminals
Terminals
150
58
50-250° C
Indicator
135
58
50-250°C
Indicator
ø 6,5
320 300
350
330
Power in
min. temperature
Alarm contact
Terminals
currentless open
from P2 to A
Terminals
24V DC 15W
solenoid valve
A
P2
P1
Electrically heated 3/2-way ball valve, version V3/2-H
Electrically heated 3/2-way ball valve with position identification, version V3/2-H/PE
Electrically heated 3/2-way solenoid valve, version MV3/2-H
