2.1
Technical specifications and illustrations are without
obligation, subject to modifications. 10.04/06.06

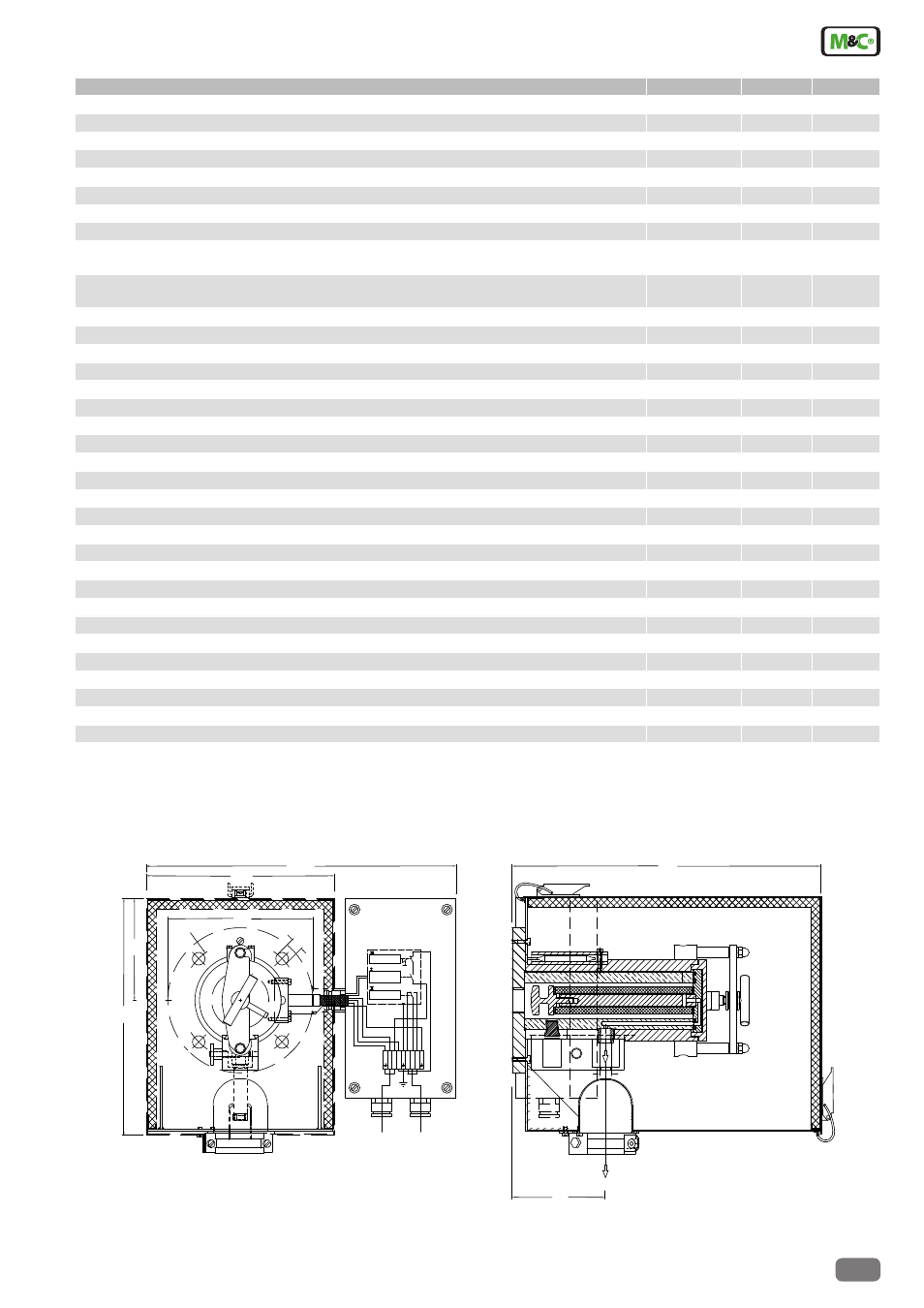

Basic versions and options (choice)
Basic executions Data sheet Version Part-No.
Basic execution, non-heated, without weather protection shield, material SS 316Ti SP2000 20 S 1000
Basic execution, heated to 0-180 °C ,with weather protection shield, material SS 316Ti SP2000-H 20 S 2000
Basic execution, heated to 0-180 °C, , with weather protection shield, material PTFE 2-1.1.3 SP2300-H 20 S 3000
Basic execution, heated to 0-180 °C, , with weather protection shield, material Titanium SP2400-H 20 S 3500
Options integrated in the gas sample probe (extract)
Power supply 115V/60Hz
/115V 20 S 9030
Top of filter case with PTFE-rings and seals of PTFE 2-1.1.2 /7aT 20 S 9010
Second outlet for sample gas 1/4" NPTi /2x 20 S 9015
Back purge/calibration gas valve, opening pressure 0,7 bar, pipe 6 mm, blow back and test gas feeding via filter
chamber /R 20 S 9045
Back purge/calibration gas valve for SP2400-H, opening pressure 0,7 bar, 1/4" NPTi, blow back and test gas fee-
ding via filter chamber /R-Ti 20 S 9048
Fiber glass filter element 0,1GF150, filter porosity 0,1 µm, sealing PTFE 2-1.1.2 /GF150 20 S 9020
Spec. filter housing lid and unscrewed cartridge incl. spun glass filling, sealing FPM, Novapress 2-1.1.2 /FW 20 S 9047
Spec. filter housing lid and unscrewed cartridge incl. spun glass filling for 320 °C, sealing graphit 2-1.1.2 /FW 320 20 S 9046
Electrical heating of the exernal filter to 0-320 °C 2-1.2.8 /H320 20 S 9021
Execution for max. 25 bar operating pressure, mounting flange DN50 PN25 /HP 20 S 9017
Gas pre-heater GVW1, material SS304 /GVW1 20 S 9058
Connection of the gas pre-heater to valve ”R” and to gas inlet /GVW 20 S 9062
PT00 sensor instead of the thermostat, without temp. controller /PT100 20 S 9025
Thermoelement FE-CuNi ( type J) instead of thermostat, without temp. controller /Fe-CuNi 20 S 9027
Thermoelement Ni-CrNi (type K) instead of thermostat, without temp. controller /Ni-CrNi 20 S 9028
Second PT100 sensor /2-PT100 20 S 9026
Execution with electrical safety separation according VDE106T101 in connection with thermostat /ST 20 S 9031
Steam heating, without controller and valves 2-1.2.10 /D 20 S 9033
Adapter flange size DN..PN6 or ANSI..150 lbs /DN 20 S 9004
Mounting fitting R2"a or 2"-NPTa instead of the mounting flange /SO1 20 S 9005
Integrated 2-way ball valve with lock function in the inlet 2-1.3.5/2-1.4.5 /VA 20 S 9050
Integrated 3-way ball valve with T-function in the inlet 2-1.3.5/2-1.4.5 /3VA 20 S 9325
Integrated 2-way ball valve with lock function in the inlet, up to 320 °C 2-1.3.5/2-1.4.5 /VA320 20 S 9053
Integrated 3-way ball valve with T-function in the inlet, up to 320 °C 2-1.3.5/2-1.4.5 /3VA320 20 S 9330
Pneumatic drive for ball valves VA and 3VA, 2 operating states 2-1.3.5/2-1.4.5 /MS1 20 S 9055
Pneumatic drive for valves VA 320°C and 3VA 320 °C, 2 operating states 2-1.3.5/2-1.4.5 /MS3 20 S 9056
Electrical actuating drive for ball valves VA and 3VA, 2 operating states, 230V/50Hz 2-1.4.10 /EA230 20 S 9342
Electrical actuating drive for ball valves VA and 3VA, 2 operating states, 115V/60Hz 2-1.4.10 /EA115 20 S 9342a
Electrical actuating drive for ball valves VA and 3VA, 2 operating states, 24V DC 2-1.4.10 /EA24 20 S 9342d
Filter housing lid for high flowrate with filter element 0,1GF /HF 20 S 9016
(115V,60Hz)
230V,50Hz
N
2 1 5
L 'L
34 6 8 7 9
260
160
207
340
Ш130
110
Ш14
103
1/4"NPTi
345
Alarm contact Power
Tu <-30°C
Tset
To >+30°C
0-180°C
Sample outlet
Basic version
