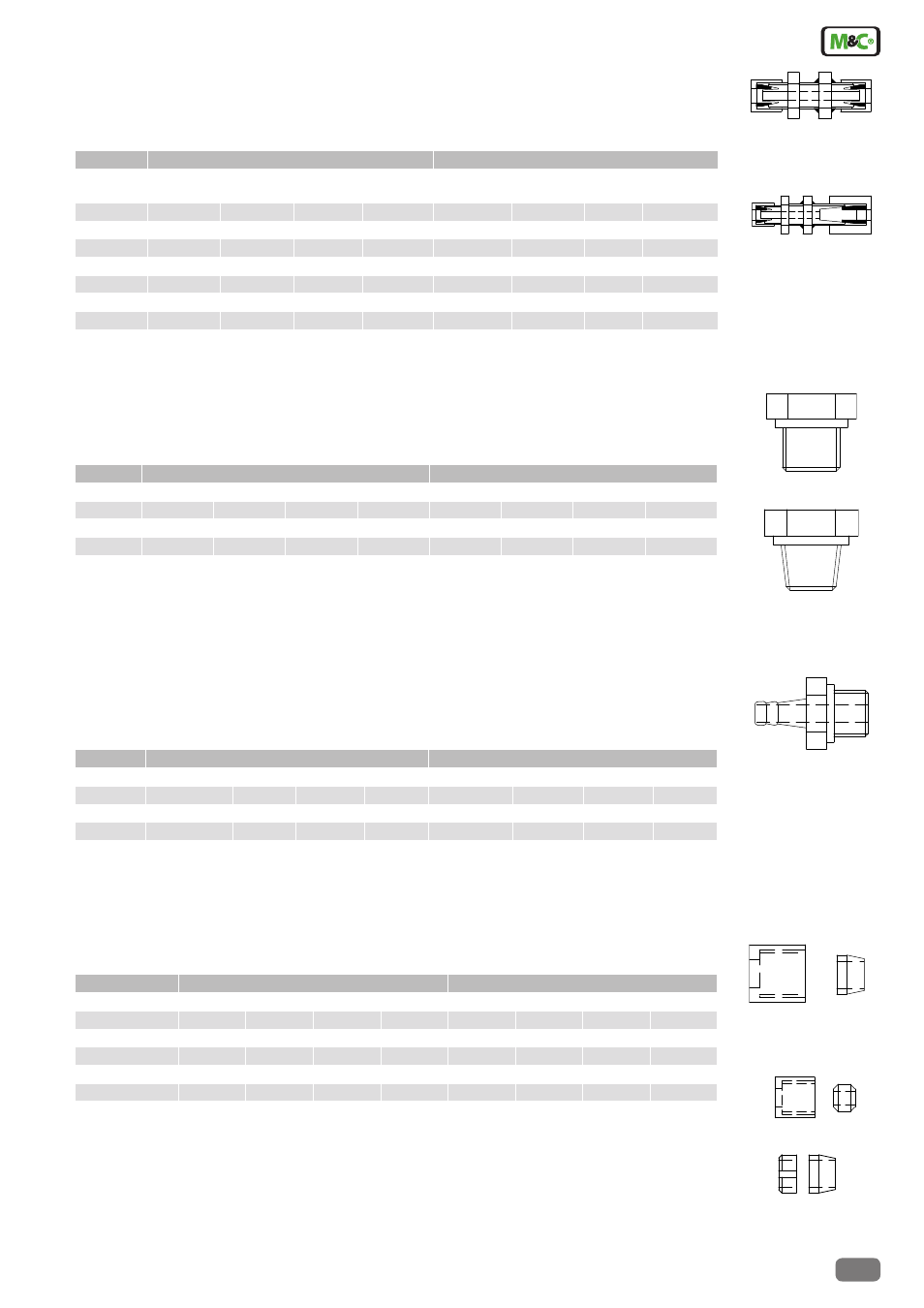

11.6
Technical specifications and illustrations are without
obligation, subject to modifications. 09.96/12.06
Plug, Series 3,
out of PTFE, PVDF and PP
Please find the Part No. of all available standard versions in this list:
Thread: Thread:
Material G 1/8" G 1/4" G 3/8" G 1/2" 1/8" NPT 1/4" NPT 3/8" NPT 1/2" NPT
PTFE 06V7000 06V7005 06V7010
PVDF 06V7015 06V7020 06V7025
PP
Series 2
Series 1 Spare parts, Series 1 and 2,
out of PVDF and PP
Please find the Part No. of all available standard versions in this list:
Front ferrule 2 and back-/ front ferrule combination 2N are compatible.
Back ferrule 2N made of PTFE, front ferrule 2N made of PEEK.
Nut 1 Ferrule 1
Nut 2 Ferrule 2
Dimension DN ..... mm, material PVDF Dimension DN ..... mm, material PP
Spare parts 4/6 6/8 8/10 10/12 4/6 6/8 8/10 10/12
Front ferrule 1 05V6600 05V6602 05V6604 05V6500 05V6502 05V6504
Nut 1 05V6605 05V6607 05V6609 05V6505 05V6506 05V6508
Front ferrule 2
Nut 2
Back ferrule 2N
Front ferrule 2N
Hose nozzle, Series 3,
out of PVDF and PP
Please find the Part No. of all available standard versions in this list:
Tube i. ø mm, material PVDF Tube i. ø mm, material PP
Thread 4 6 8 10 4 6 8 10
G 1/8" 06V8000 06V8010 06V8015
G 1/4" 06V8020 06V8025 06V8030
G 3/8" 06V8035 06V8040 06V8045
Bulkhead Connector, Series 1 out of PVDF and PP,
hose / hose,
hose / tube
Please find the Part No. of all available standard versions in this list:
Dimension DN ..... mm, material PVDF Dimension DN ..... mm, material PP
Ø DN
resp. D 4/6 6/8 8/10 10/12 4/6 6/8 8/10 10/12
4/6 05V3215 05V3216 05V3230
6/8 05V3220 05V3235
8/10 05V3222
10/12 05V3225 05V3240
6
8
10
12
Back/Front ferrule 2N
