11.6
Technical specifications and illustrations are without
obligation, subject to modifications. 09.96/12.06
The following fittings are preferred standard versions and available in stock.
Other executions, materials, dimensions (in inches as well) on request (minimum order quantity!).

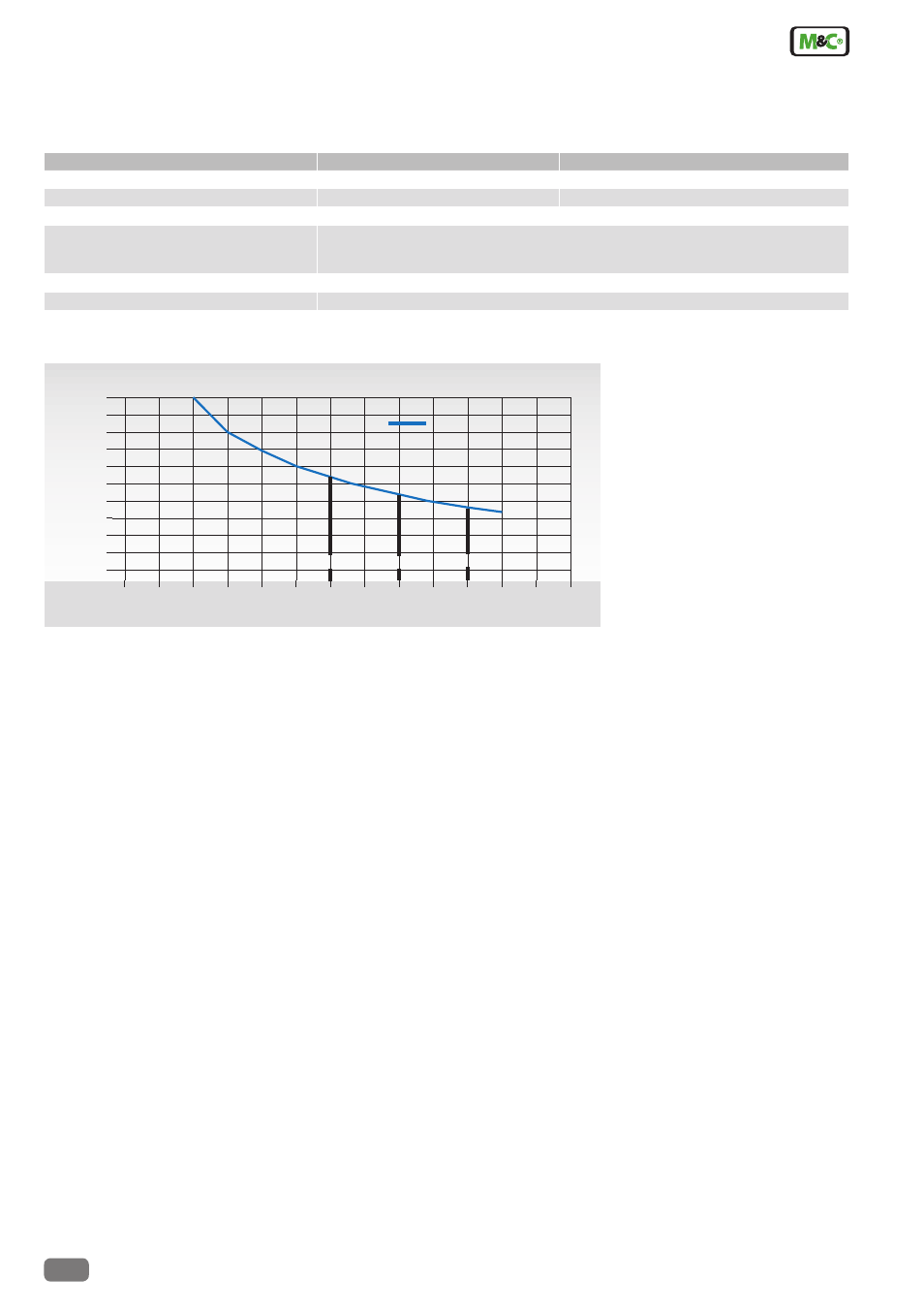

The max. operation pressure decreases with increasing temperature.
The temperature of 20 °C is related to air at 65 % humidity (DIN 50014).
°C
ba
r
0 90 110 130 10 30 50 80 100 120 70
10
PVDF / PP / PTFE
PP max. 60°C PVDF max. 80°C PTFE max. 100°C
0
2
4
6
8
1
3
5
7
9
20 40 60
Technical Data
Fitting Series 1-3 Material PVDF (Polyvinylidenefluoride) Material PP (Polypropylene)
Operating temperature -20 °C up to +80 °C -5 °C up to +60 °C
Storage temperature -30 °C up to +110 °C -20 °C up to +80 °C
Max. permitted operating pressure at 20 °C PN10, 10 bar
Connection thread G 1/8, 1/4, 3/8, 1/2 pipe thread, DIN ISO 228
1/8, 1/4, 3/8, 1/2 NPT-thread, USAS B2.1
M 10x 1,5 metric screw thread, DIN 13
Hose connection dimensions Series 1 DN 4/6, 6/8, 8/10, 10/12 mm inside-/outside diameter
Hose connection dimensions Series 2 6, 8, 10, 12 mm outside diameter
