Example of order:
20 pieces of male elbows, G1/4"-DN10/12, PVDF. Part No. 05V4070.
Look at the table for male elbow. In the adjacent field you can see the
material PVDF. The corresponding part No. is written down in line ‘G1/4’ and
column ‘10/12’ - 05V4070.

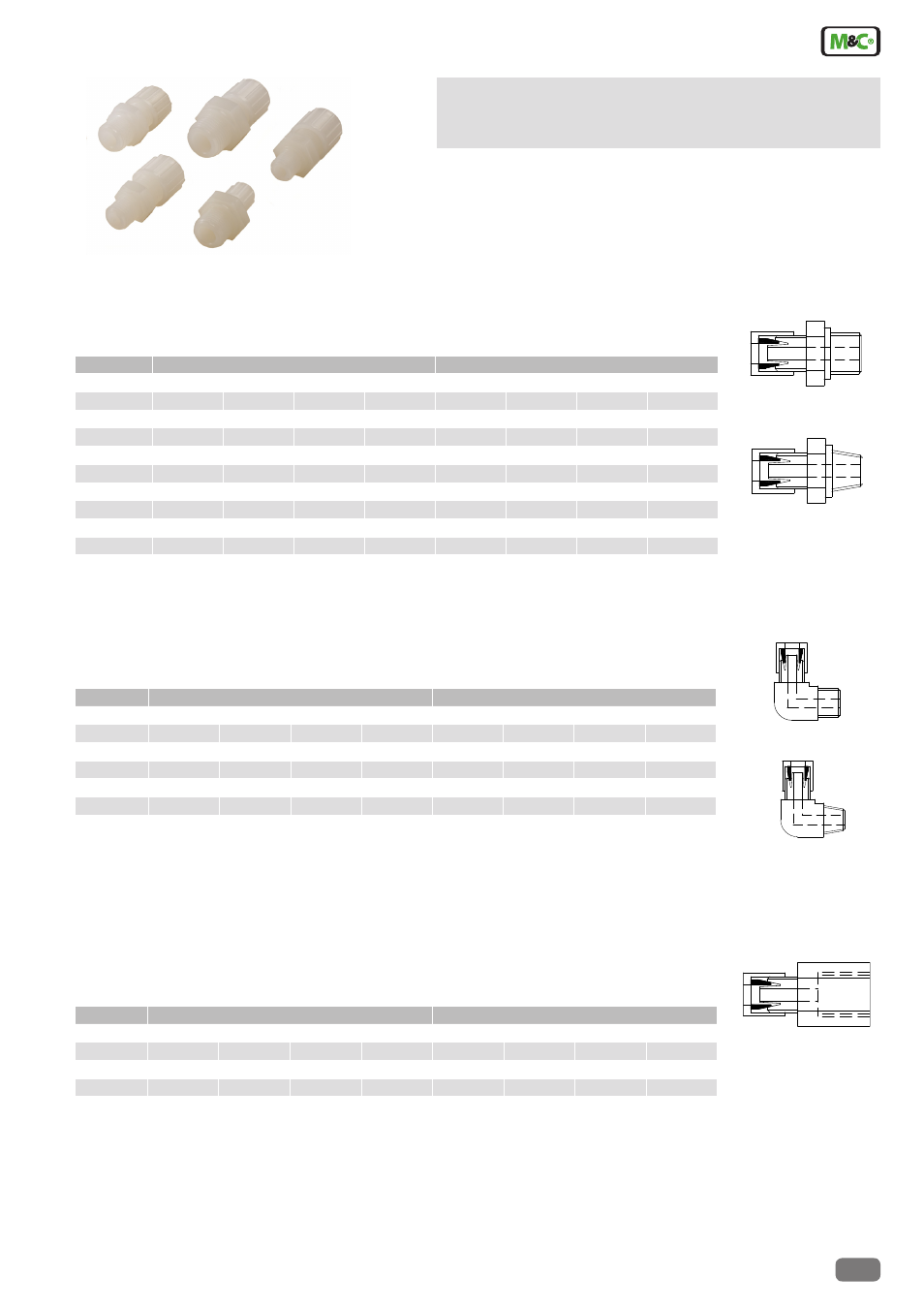

Male Connector, Series 1, out of PVDF and PP
Please find the Part No. of all available standard versions in this list:
Male Connector Series 1
Male Elbow Connector, Series 1, out of PVDF and PP
Please find the Part No. of all available standard versions in this list:
Female Connector, Series 1, of PVDF and PP
Please find the Part No. of all available standard versions in this list:
Dimension DN ..... mm, material PVDF Dimension DN ..... mm, material PP
Thread 4/6 6/8 8/10 10/12 4/6 6/8 8/10 10/12
G 1/8" 05V1045 05V1050 05V1055 05V1090 05V1095 05V1100
G 1/4" 05V1060 05V1065 05V1067 05V1070 05V1105 05V1110 05V1115
G 3/8" 05V1075 05V1080 05V1069 05V1085 05V1120 05V1125 05V1130
G 1/2" 05V1087 05V1135
1/8" NPT 05V2045 05V2050 05V2055 05V2090 05V2095 05V2100
1/4" NPT 05V2060 05V2065 05V2070 05V2105 05V2110 05V2115
3/8" NPT 05V2075 05V2080 05V2085 05V2120 05V2125 05V2130
1/2" NPT 05V2086 05V2087
M10 x 1,5 05V3000 99A1440
Dimension DN ..... mm, material PVDF Dimension DN ..... mm, material PP
Thread 4/6 6/8 8/10 10/12 4/6 6/8 8/10 10/12
G 1/8" 05V4045 05V4050 05V4055 05V4090 05V4095 05V4100
G 1/4" 05V4060 05V4065 05V4070 05V4110 05V4115 05V4120
G 3/8" 05V4075 05V4080 05V4085 05V4125 05V4130 05V4135
G 1/2" 05V4087
1/8" NPT 05V6045
1/4" NPT 05V6060 05V6065 05V6110
Dimension DN ..... mm, material PVDF Dimension DN ..... mm, material PP
Thread 4/6 6/8 8/10 10/12 4/6 6/8 8/10 10/12
G 1/8" 05V3910 05V3805
G 1/4" 05V3900 05V3915 05V3800
G 3/8"
G 1/2"
