2.11
∆P and T90 at flow of: 100 200 500 1000 1500 Nl/hr
∆P with new filter element F-3SS150 0,006 0,012 0,040 0,110 0,215 bar
∆P with new filter element S-2K150 0,003 0,005 0,02 0,058 0,135 bar
T90-time for SP3110 without tube 6 3,5 1 <0,5 <0,5 s
Dimensions

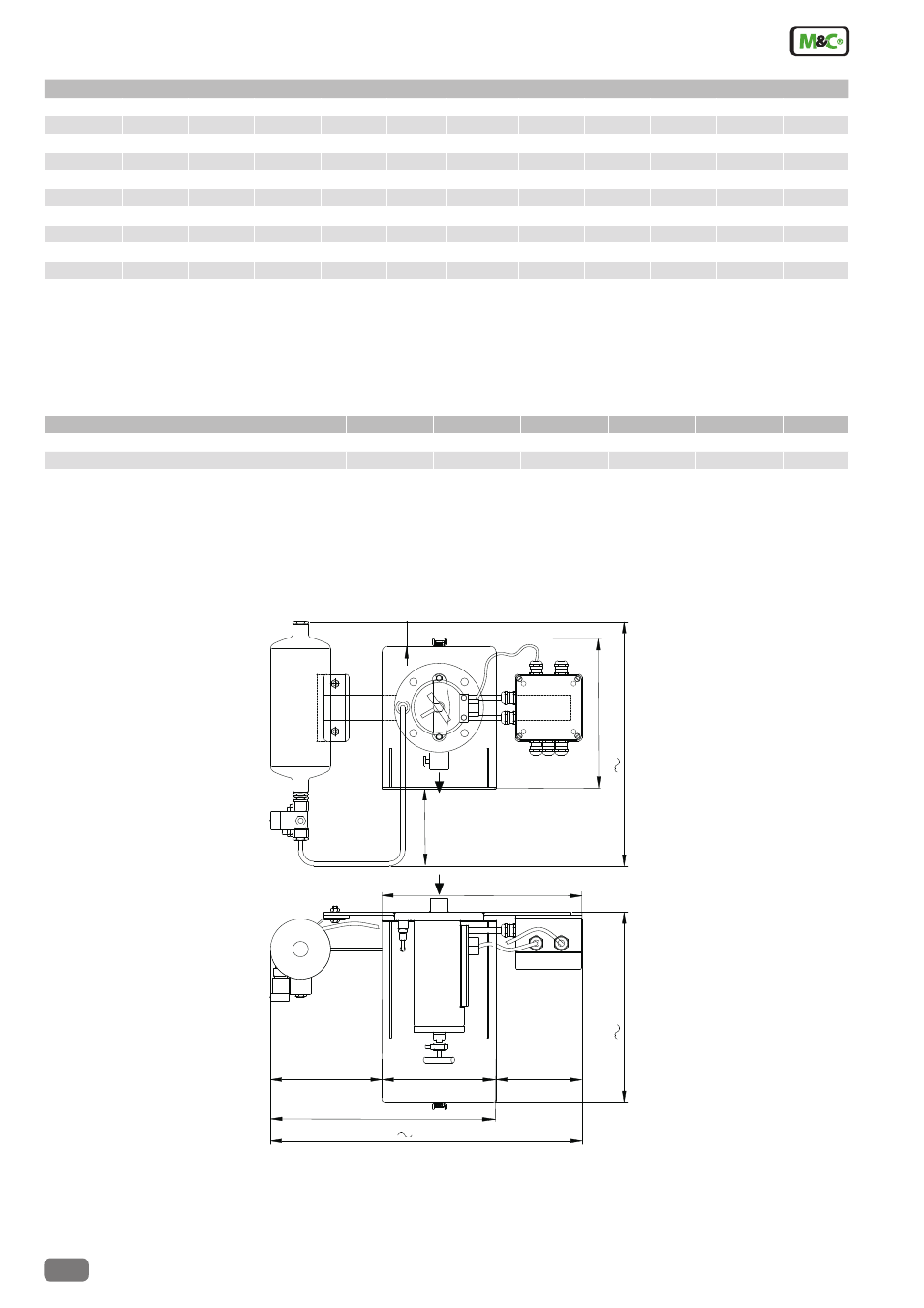

SP3110(V) basic version with option back purging type RS and heating type HEX4
Dimensions in mm
540
200 133
360
440
270
407
340
140
40
207
RS HEX4
Differential pressure and T
90
-time
X = possible combinations
X = recommended combinations
Combinations of options
Technical specifications and illustrations are without
obligation, subject to modifications. 10.04/11.12
Option No. 1 2 3 4 5 6 7a 7b 8 9 10
/RS /VA /3VA /MS1 /R /R/CC(/CCF) /BB /BBF /C/I /2X /FW
/RS X X X
/VA X X X X X X X X
/3VA X X X
/MS1 X X
/R X
/R/CC(CCF) X X X
/BB X X X X
/BBF X X X
/C/I X X X X X X
/2X X X X X X X
