M&C TechGroup FM10 Data sheet - Manual (Page 2)

M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany
[email protected] • www.mc-techgroup.com • Fon +49 2102 935-0 • Fax +49 2102 935-111
9.1
Technical specifications and illustrations are without
obligation, subject to modifications. 09.96/11.06
8
26 40
GL18
25
75
100
ø 4,5
250
7,5

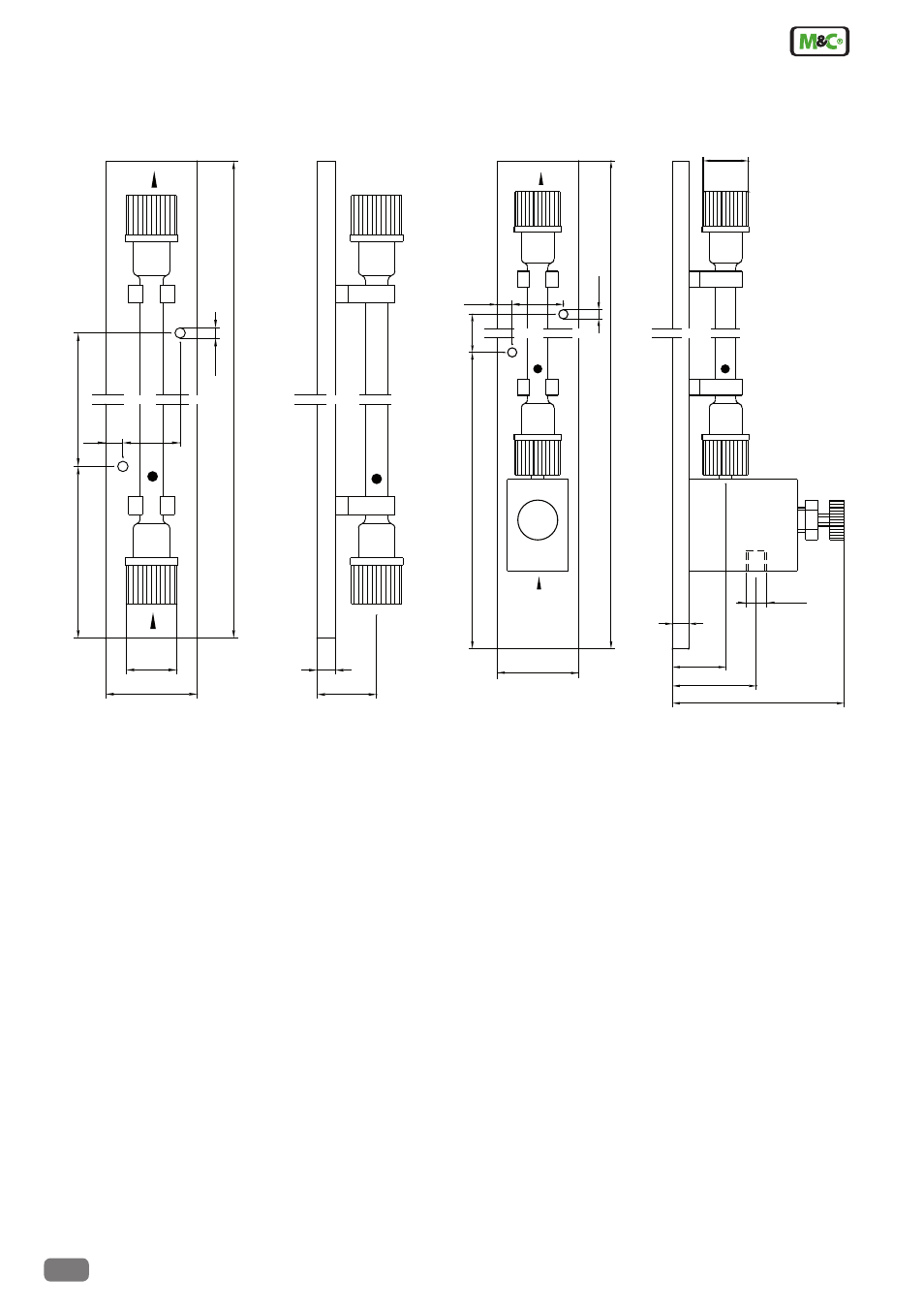

Dimensions
Flowmeter FM 1 Flowmeter with needle valve in the inlet FM 10
Dimensions in mm
GL18
ø 4,5
25 7,5
100
145
320
8
26
43
max. 87
G1/4"
40
