Dimensions, Flow scheme ss-5 and ss-5/3 – M&C TechGroup SS-5_3 Data sheet User Manual
Page 2
M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany
[email protected] • www.mc-techgroup.com • Fon +49 2102 935-0 • Fax +49 2102 935-111
14.3
Technical specifications and illustrations are without
obligation, subject to modifications. 09.96/12.11
385
515
Condensate OUT
Sample gas OUT
4
5
3
2
Sample gas IN
1
Status contact
OUT
IN
Power
GL25
GL18
<
ON
>
ECP
Cooler

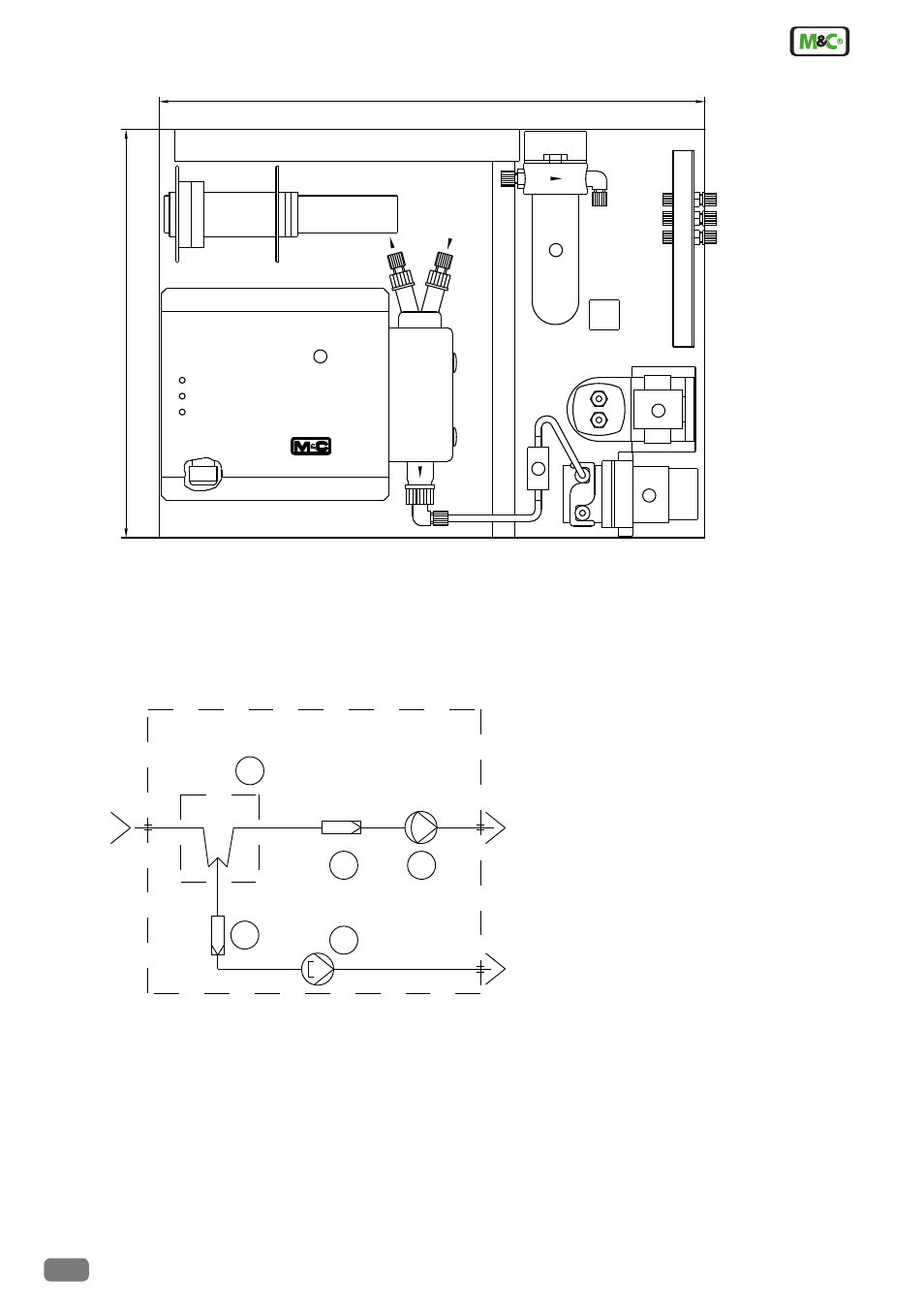

Dimensions
Dimensions in mm
4
5
1
2
3
1 Gas cooler ECP1000 or ECP 3000
2 Fine filter FP-2T, filter porosity 2µm
3 Gas diaphragm pump N3KPE or N9KPE
4 Pre filter PF2
5 Peristaltic pump SR25.1
Flow scheme SS-5 and SS-5/3
