Gas sampling and gas conditioning technology 2-1.0.1-ME

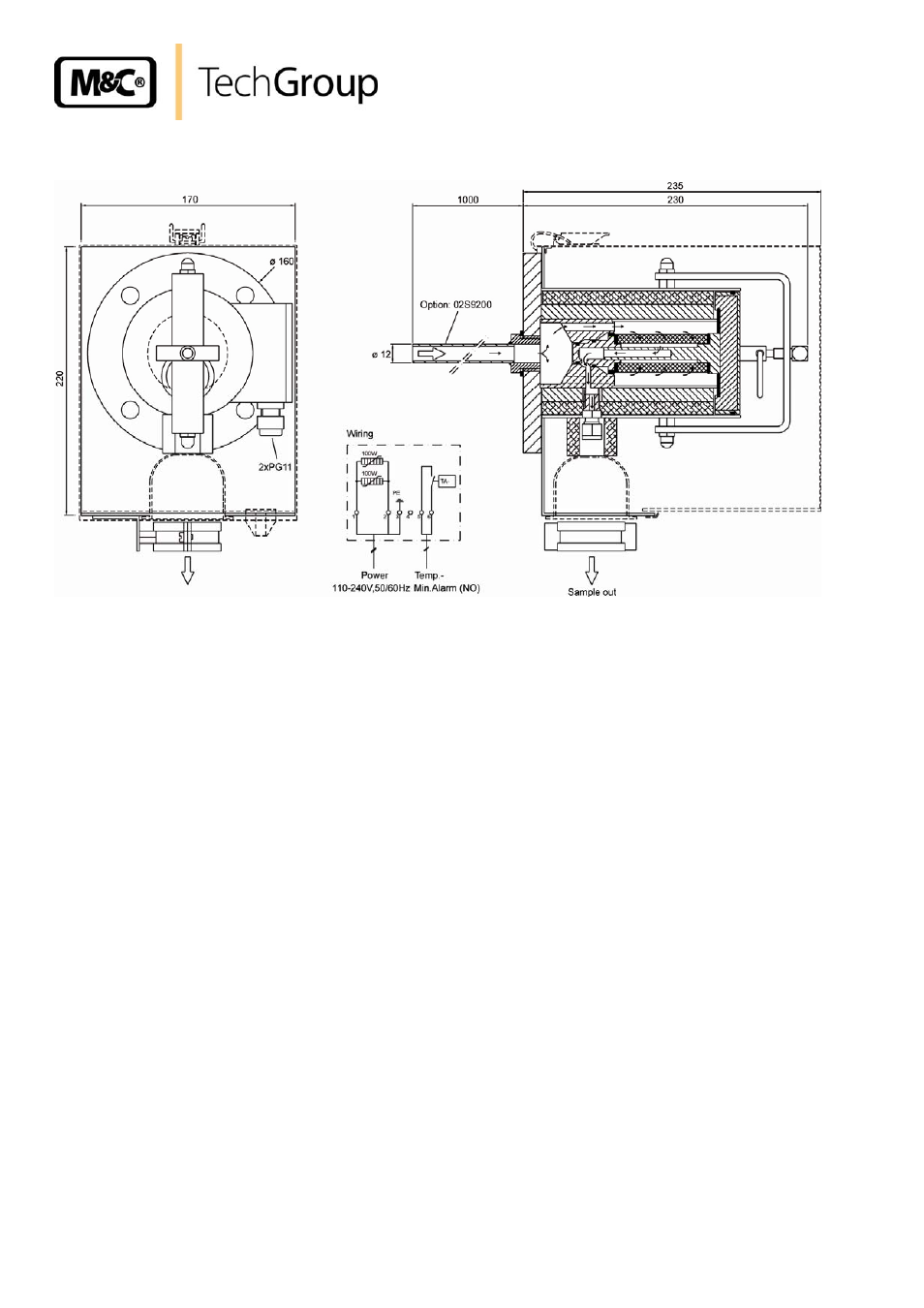

The following cross-sectional drawing shows the probe SP210-H resp. SP210-H/W.
Figure 1 Dimensions SP210-H/W
11 RECEPTION
The gas sample probe is normally delivered in two packaging units:
1.
The gas sample probe with the screws, nuts and flange seal required for mounting.
2.
Sample tube with gasket.
The gas sample probe should be removed carefully from the packaging and checked immediately for
completeness against the delivery note.
Check the goods for any damage incurred during transport and if necessary inform your transport
insurer of any damage.
12 PREPARATION FOR INSTALLATION
• Select the optimal sampling point in accordance with the generally applicable guidelines or
consult the competent persons.
• Locate the sampling point in such a way that there is adequate space for inserting and
removing the probe and pay attention to the insertion length of the probe tube.
• Make certain that the probe is easily accessible so that you can carry out any subsequent
maintenance work without trouble.
• Locate the probe connections in such a way that the connections' temperature is always above
the acid dew point in order to avoid corrosion and blockage problems. If this is not possible, a
heated SP35/SP30 probe tube is recommended for cold connections.
