IP Director Version 4.4 – User Manual – Part 1: Introduction
EVS Broadcast Equipment - – March 2008
Issue 4.4.B
49
3.4.9 H
OW TO
A
SSOCIATE
C
HANNELS TO
P
ROVIDE A
K
EY AND
F
ILL
M
ODE

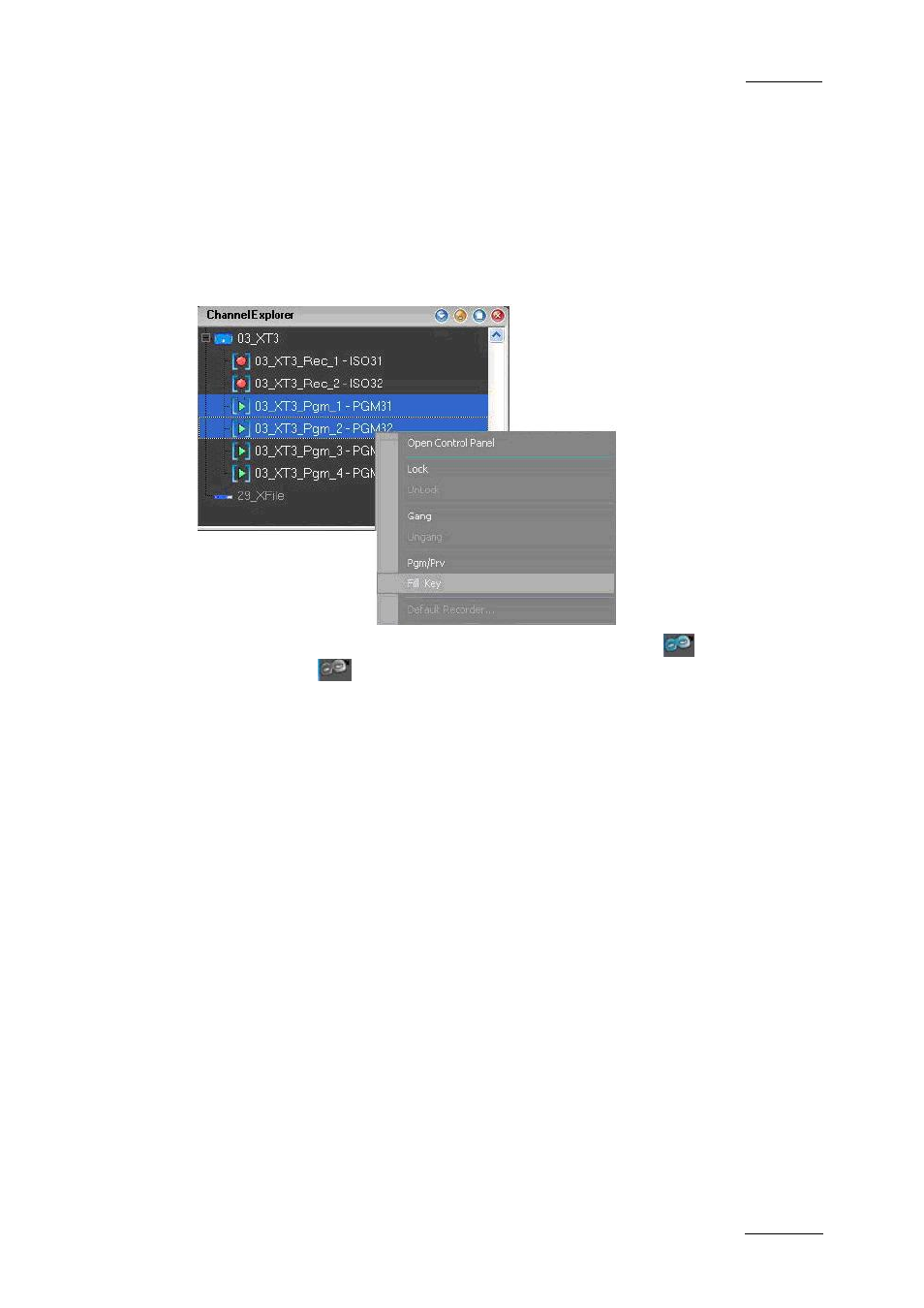

To associate 2 channels together for use with Fill & Key operations, use the
standard command of SHIFT + click or CTRL + click to select the channels
required in Channel Explorer, then use a right-click to see the contextual menu,
and select the Fill Key command from the menu.
The association will be shown in the Channel Explorer by an icon on the Fill
channel and an icon on the Key channel and also be reflected in the title bar
of the Control panels. The first channel selected will become the Fill and the
second the Key.
