3.2 STATUS DISPLAYS
3.2.1 XT S
ERVER STATUS

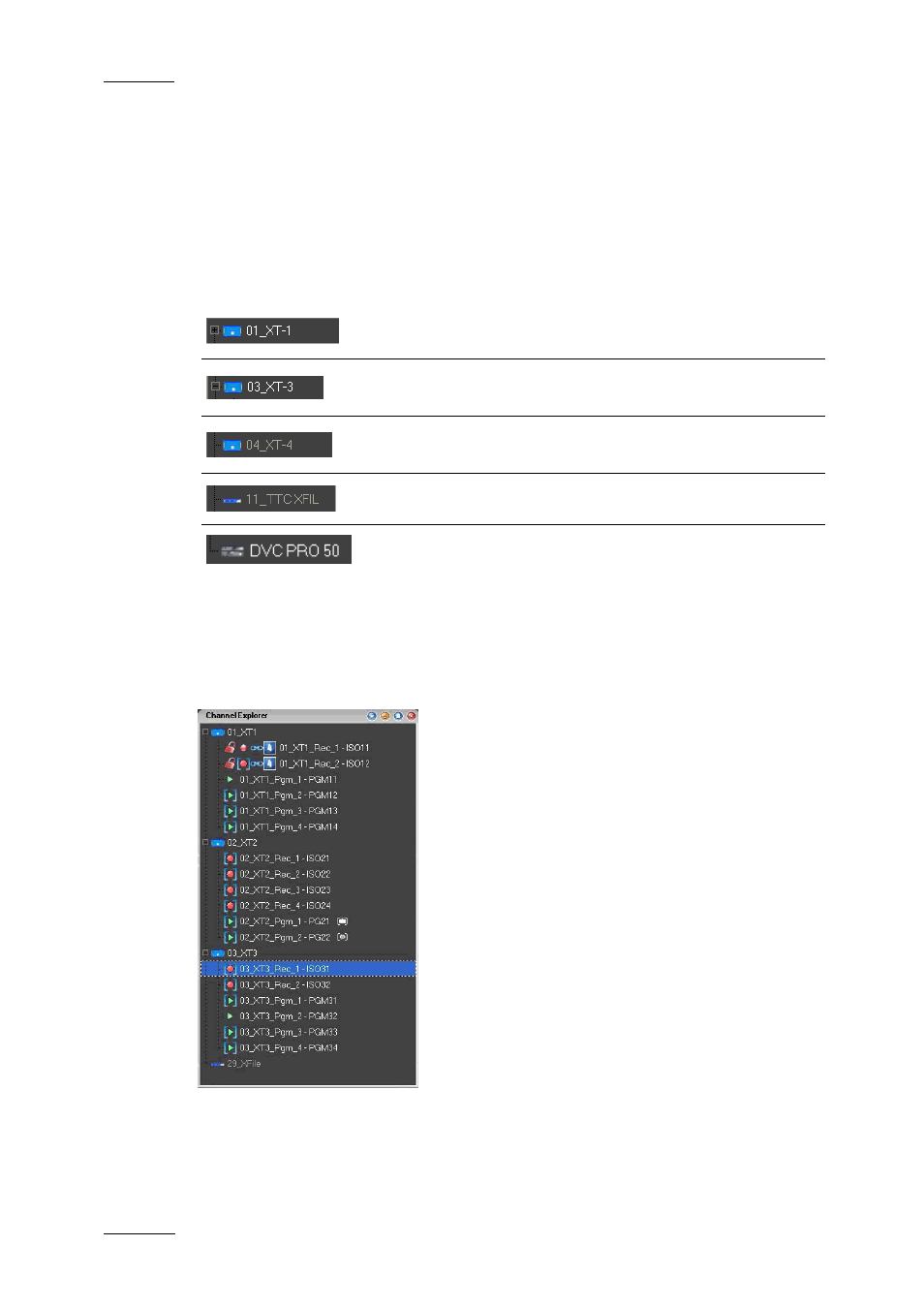

The primary line for each device in the Channel Explorer shows the machine
status, its name and an icon representing the device type
XT server connected on the XNet and channels available
for use with IP Director
XT server connected on the XNet and available channels
displayed in its sub menu
XT server connected on the XNet but has no RS-422 link
to a workstation for channel control by IP Director
XFile connected on the XNet
VTR connected on the XNet
3.2.2 XT S
ERVER
C
ONFIGURATION
By expanding the tree on each machine its channel configuration can be seen
together with its control status, name, lock status and gang status
