Issue 4.4.B IP Director Version 4.4 – User Manual – Part 1: Introduction
EVS Broadcast Equipment – March 2008
22
2.5 CHANNEL STATUS PANEL
The Channel Status panel is made up of the Recorder Status panel and the Player
Status panel. These panels allow the user to monitor the statuses of requested
recorder or player channels.

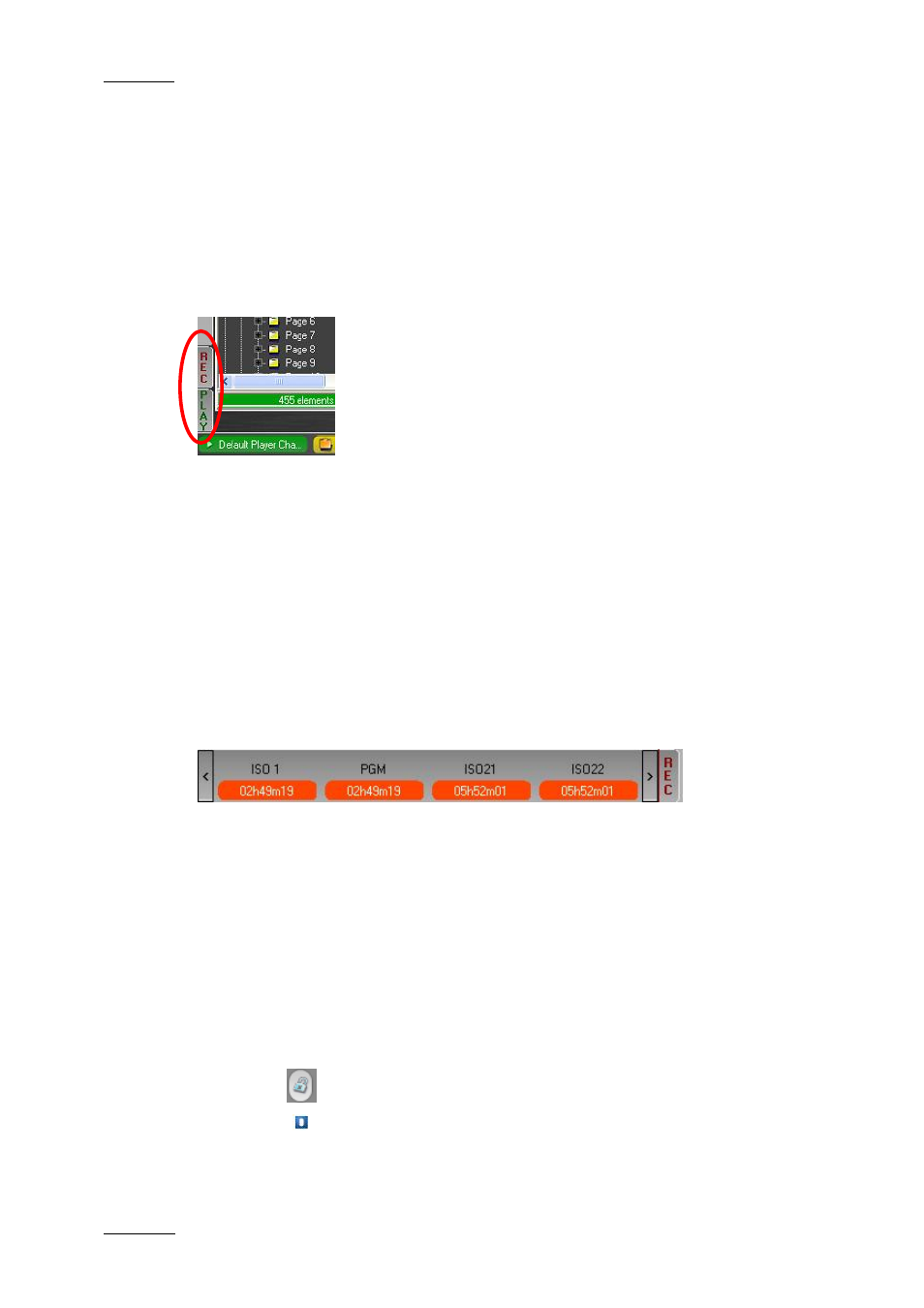

By default, the panels are minimised to small REC and PLAY tabs on the bottom
left side of the workspace as shown in the screenshot below.
O
PENING AND
C
LOSING THE
C
HANNEL
S
TATUS
P
ANELS
To open the Recorder Status panel or Player Status panel for the first time in a
session, right-click the tab and select the View Recorder/Player Panel option.
To open Recorder Status panel or Player Status panel again in the session, simply
click the REC or PLAY tab.
To close the Recorder Status panel or Player Status panel, click again on the REC
or PLAY tab.
2.5.1 R
ECORDER
S
TATUS
P
ANEL
D
ISPLAYED
S
TATUS
I
NFORMATION
The Recorder Status panel provides the following status information on the
recorder displayed on the panel:
• recorder channel name
• remaining capacity on the recorder
• recording status
o
capacity information on a red background if the channel is recording
o
capacity information on a green background if the channel is not recording
• lock icon if the channel is locked
• gang icon if the channel is ganged
