IPDirector Version 5.9 – User Manual – Part 1: General Workspace
EVS Broadcast Equipment -– January 2011
Issue 5.9.B
107
Note
If you do not have the user right to control the channel, the
channel name is displayed but the Function button LED is
dimmed.
3. If needed, repeat these two steps for the other Linked Channels fields or
Function button areas.

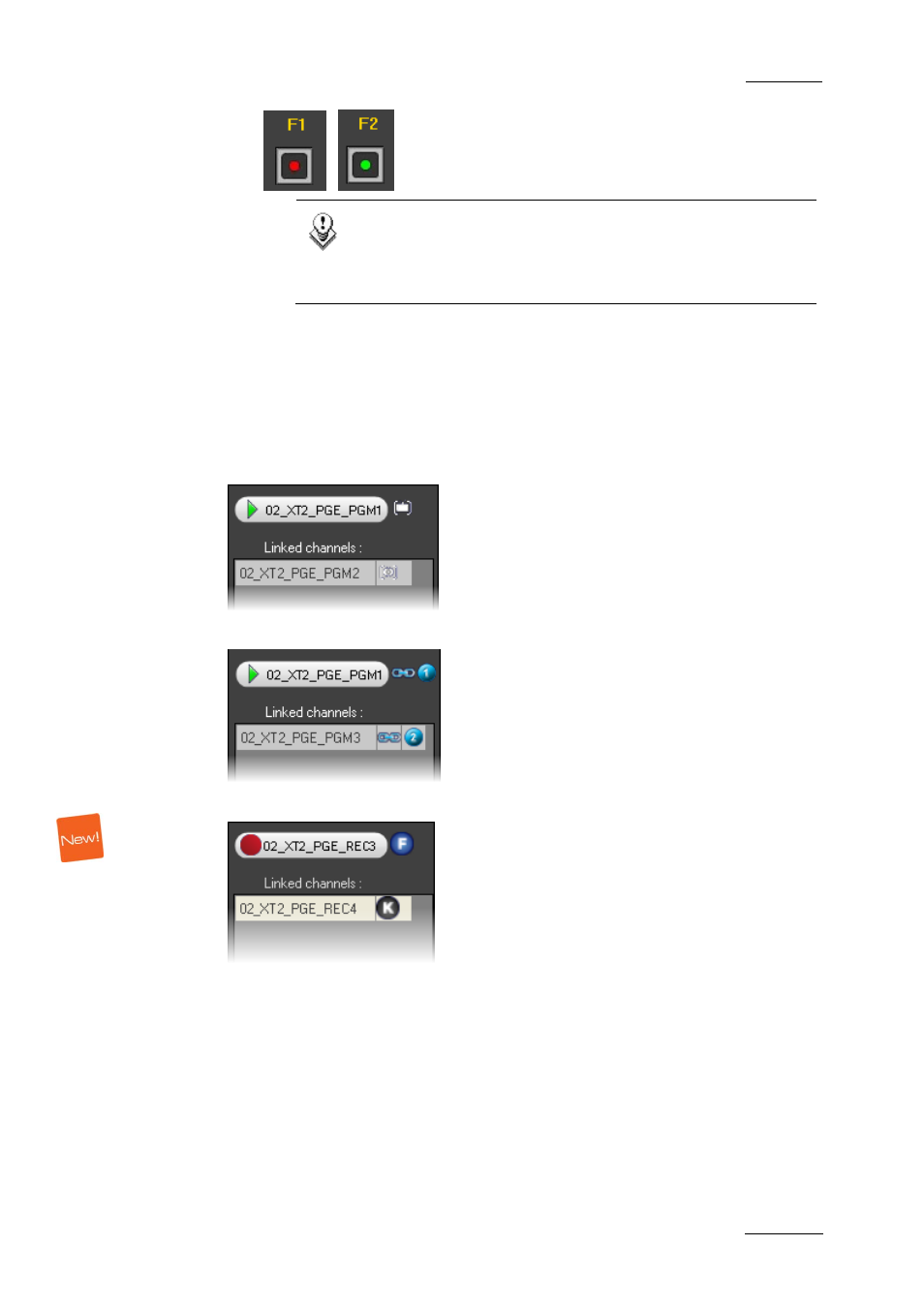

Linked Channels
In case the channel is linked to another one in a PGM/PRV mode, gang mode or
Fill and Key mode, the linked channels are listed in the Linked Channels field:
• PGM/PRV Mode
• Gang Mode
• Fill and Key Mode
How to Un-Assign Player or Recorder Channels to Function Buttons
To un-assign a player or recorder channel from a Function button, do one of the
following:
• Right-click the Channel Name field and select None
• Double-click the Function button or the Channel Name field.
