IPDirector Version 5.9 – User Manual – Part 1: General Workspace
EVS Broadcast Equipment -– January 2011
Issue 5.9.B
105

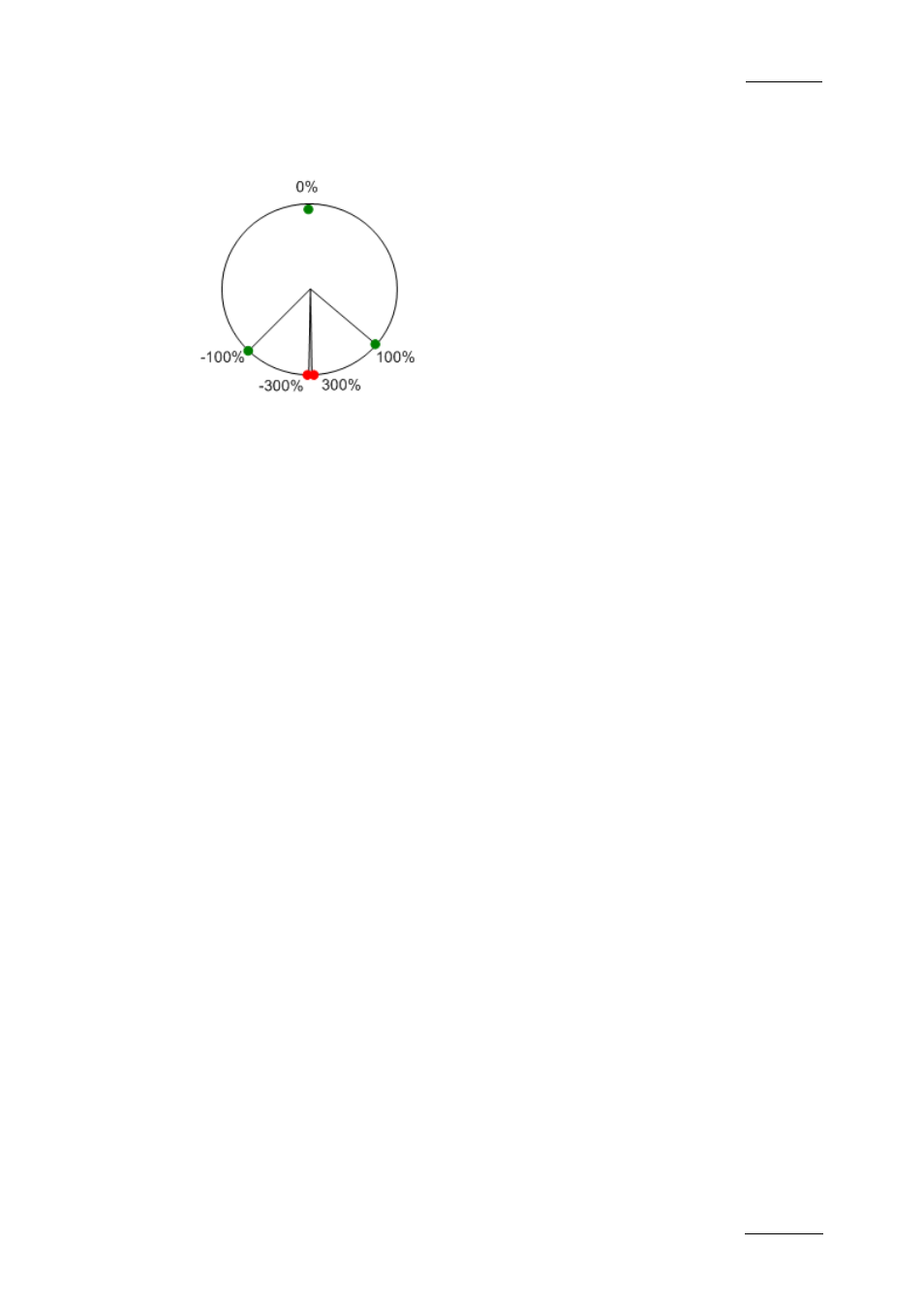

The zero position is calculated from the current playout speed to correspond to
the point where the speed is null. The following picture represents the positions of
different speed values:
SHIFT VAR Mode
The Shift Var wheel mode is activated by pressing the SHIFT then the VAR
buttons. It is used to fine tune a speed by applying +1% or -1% to the speed. The
LED flashes red.
The current speed corresponds to the zero position. The speed can be increased
(clockwise), or decreased (counter-clockwise). The positions of the different speed
values will differ according to the initial playout speed.
SHUTTLE Mode
The Shuttle wheel mode enables to play fast forward or fast rewind the loaded
media. It is activated by pressing the SHUTTLE button. The LED is red.
The speed range is: -35x to +35x.
JOG Mode
The Jog wheel mode is used to navigate through the loaded media field by field. It
is activated by pressing the JOG button. The LED is red.
One impulsion of the wheel corresponds to a jump of one field and is equivalent to
pressing the left arrow or the right arrow keys on the keyboard.
FAST JOG Mode
The Fast Jog wheel mode is used to navigate through content. It is activated by
pressing the SHIFT then the JOG buttons. The LED flashes red.
One impulsion of the wheel corresponds to a jump of 1 second.
A
SSIGNING
C
HANNELS TO
F
UNCTION
B
UTTONS
Each of the 6 function buttons can be assigned to a recorder channel or to a
player channel.
The assignment of channels to function buttons can be done in two ways:
• Favorite Mode: selected channels are defined in the Remote Control Manager
window. This is done during the configuration of the remote.
• Normal mode: this mode uses all channels of an EVS video server. The server
can be selected from the remote, during its use.
To switch the function buttons assignment between the normal mode and the
