• True Air Speed (TAS)
• Track Angle Error (TKE)
• Track (TRK)
• Vertical Speed Required (VSR)
• Crosstrack Error (XTK)
The Navigation Status Box on the PFD is not affected by these changes; flight plan, distance, and bearing
information are displayed at all times.
Changing the information shown in the MFD Navigation Status Box:
1) Use the FMS Knob to select the System Setup Page.
2) Press the FMS Knob momentarily to activate the flashing cursor.
3) Turn the large FMS Knob to highlight the desired field number in the MFD Data Bar Fields Box.
4) Turn the small FMS Knob to highlight the desired selection from the data options list and press the ENT Key.

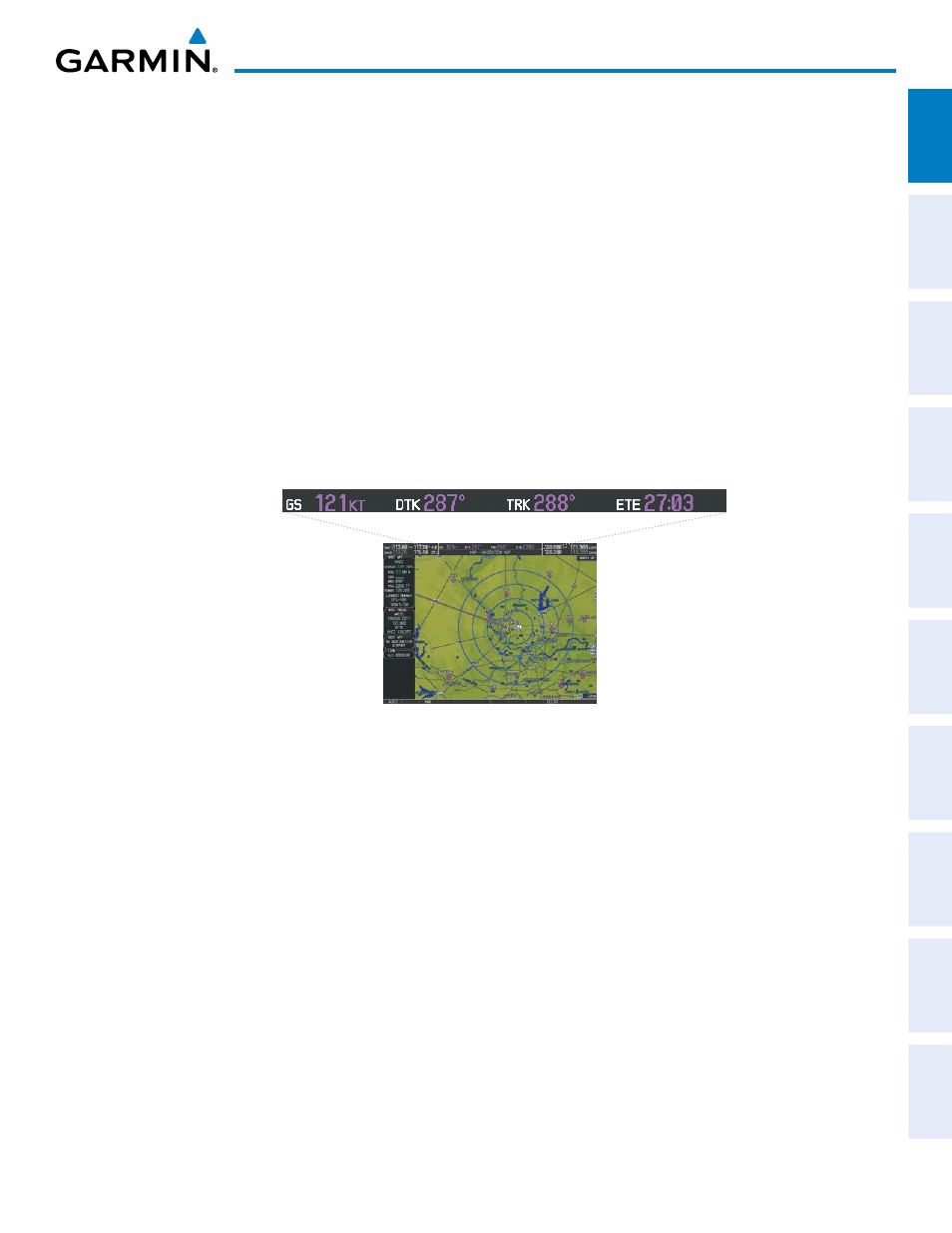

Figure 1-34 Navigation Status Box (MFD)
GPS CDI
The GPS CDI Box on the System Setup Page allows the pilot to define the scale for the Course Deviation
Indicator (CDI) when GPS is the selected navigation source and also displays the current system value for the
CDI scale. The range values represent full scale deflection for the CDI to either side. The default setting is
‘Auto’ (refer to the CDI description in the Flight Instruments Section for information on CDI scaling).
If a lower CDI scale setting is selected (i.e., 1.0 or 0.3 nm), the higher scale settings are not selected during
any phase of flight. Note that the Receiver Autonomous Integrity Monitoring (RAIM) protection limits follow
the selected CDI scale and corresponding flight phase.
Changing the selected GPS CDI setting:
1) Use the FMS Knob to select the AUX - System Setup Page on the MFD.
2) Press the FMS Knob to activate the cursor.
3) Turn the large FMS Knob to highlight ‘Selected’ in the ‘GPS CDI’ box.
4) Turn the small FMS Knob to highlight the desired setting (2 nm, 1 nm, 0.3 nm, Auto) and press the ENT Key.
