190-01146-00 Rev. A Garmin G950 Pilot’s Guide for the Tecnam P2006T 27
SYSTEM OVERVIEW
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
PAGE GROUPS
NOTE: Refer to other supporting sections in this Pilot’s Guide for details on specific pages.
Information on the MFD is presented on pages which are grouped according to function. The page group and
active page title are displayed in the upper center of the screen, below the Navigation Status Box. In the bottom
right corner of the screen, the page group tabs are displayed along the bottom Number of pages available in the
group are displayed in a list above the page groups. The current page group and current page within the group
are shown in cyan. For some of these pages (Airport/Procedures/Weather Information, Procedure Loading), the
active title of the page changes while the page name in the list remains the same.

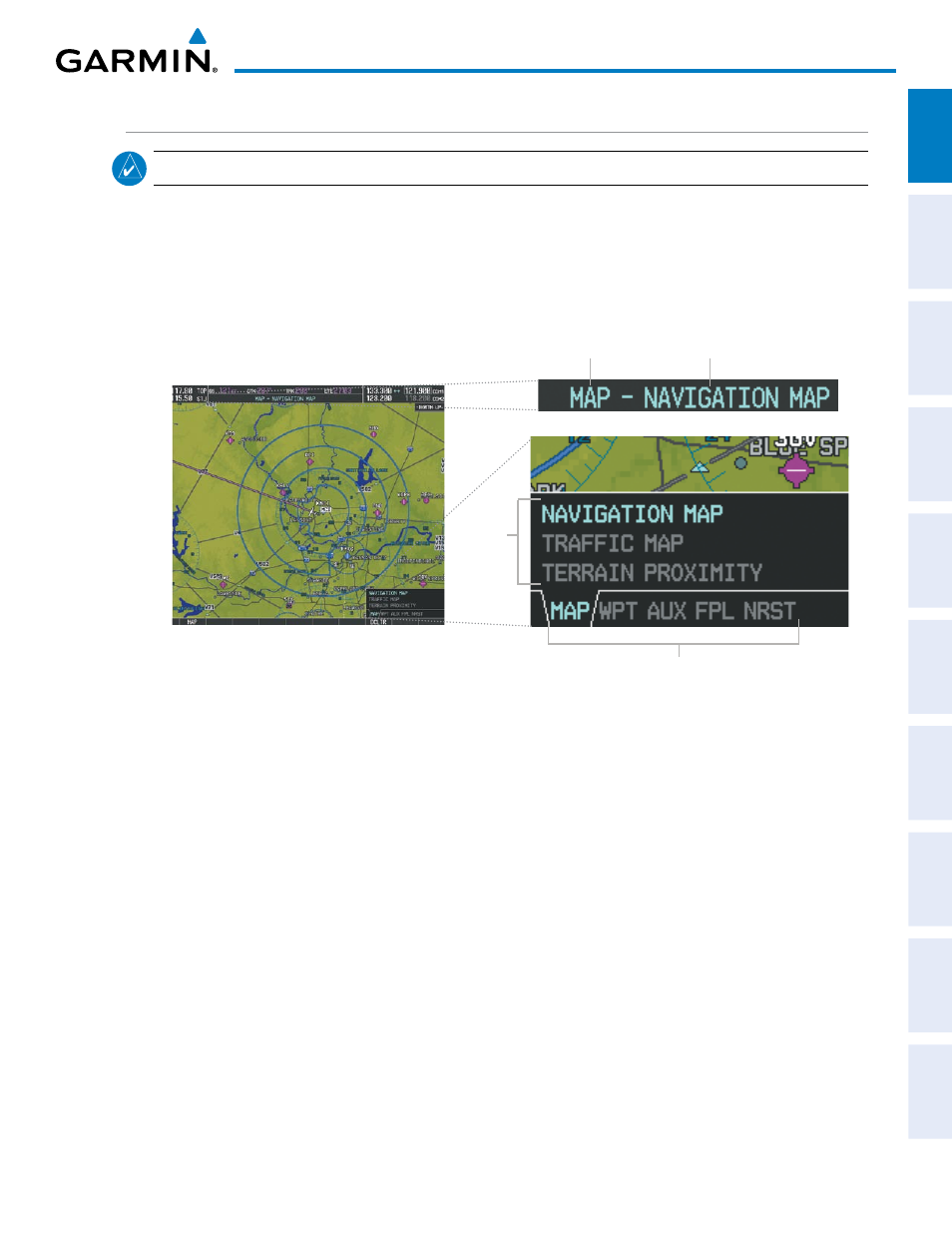

Figure 1-25 Page Title and Page Groups
Page Group Active Page Title
MFD
Page Groups
Pages in
Current
Group
The main page groups are navigated using the FMS Knob; specific pages within each group can vary depending
on the configuration of optional equipment.
Selecting a page using the FMS Knob:
1) Turn the large FMS Knob to display the list of page groups; continue turning the large FMS Knob until the
desired page group is selected
2) Turn the small FMS Knob to display the desired page within a specific page group.
There are also several pages (Airport/Procedures/Weather Information pages) which are selected first from
within a main page group with the FMS Knob, then with the appropriate softkey at the bottom of the page. In
this case, the page remains set to the selected page until a different page softkey is selected, even if a different
page group is selected.
