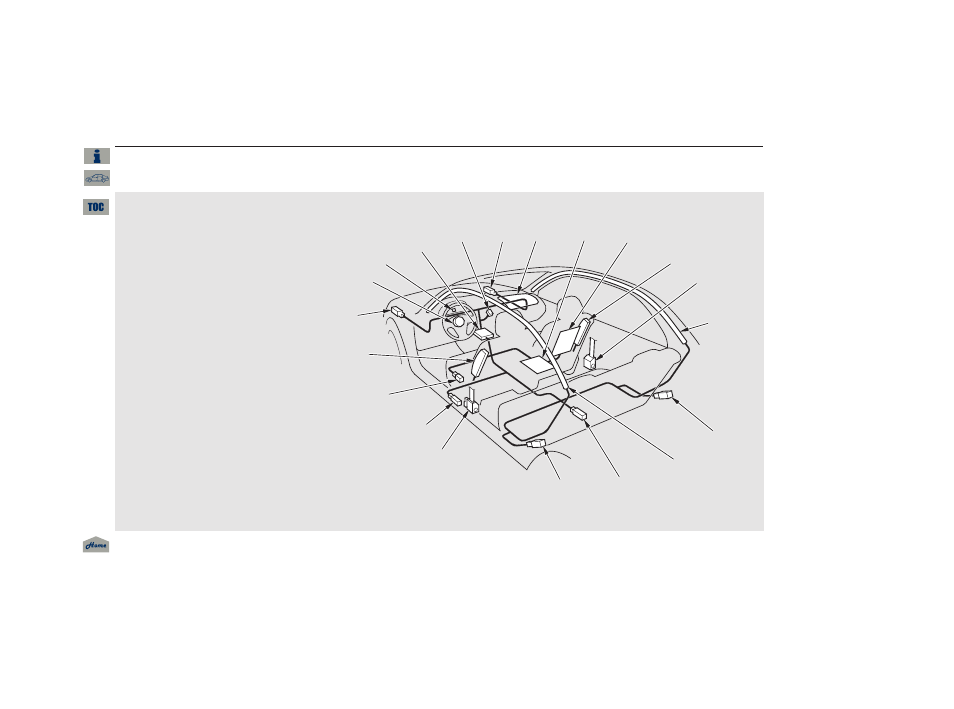

Airbag System Components
Additional Information About Your Airbags
24
(1)
(3)
(8)
(4)
(5)
(15)
(2)
(11)
(14)
(13)
(14)
(16) (13)
(4)
(10)
(5)
(8)
(6)
(9) (7) (12)
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(15) Supplemental Restraint System (SRS) Indicator
(16) Safing Sensor
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Detection System (ODS) Sensors
(12) Front Passenger’s Weight Sensors Control Unit/
ODS Sensors Control Unit
(13) Side Impact Sensors (Second)
(14) Side Curtain Airbags
