MCS
Multi-display Control Module Panel
< 1.2 > Connection Standard
4) The status lights ( LED )
Port Color Activity
IN Green
Solid LED indicates that the MSC board is powe red on.
No light indica tes the board is powered off.
IN Orange
Blinkin g L ED indicated that the data is being transmitte d th rough the connection. No
lig ht indicates no data is transmitted
Table 2-1 RS-232 Communication Standards
Bit Rate 9600 bps
Data Bits 8 bits
Parity None
Stop Bits 1 bit
Flow Control None

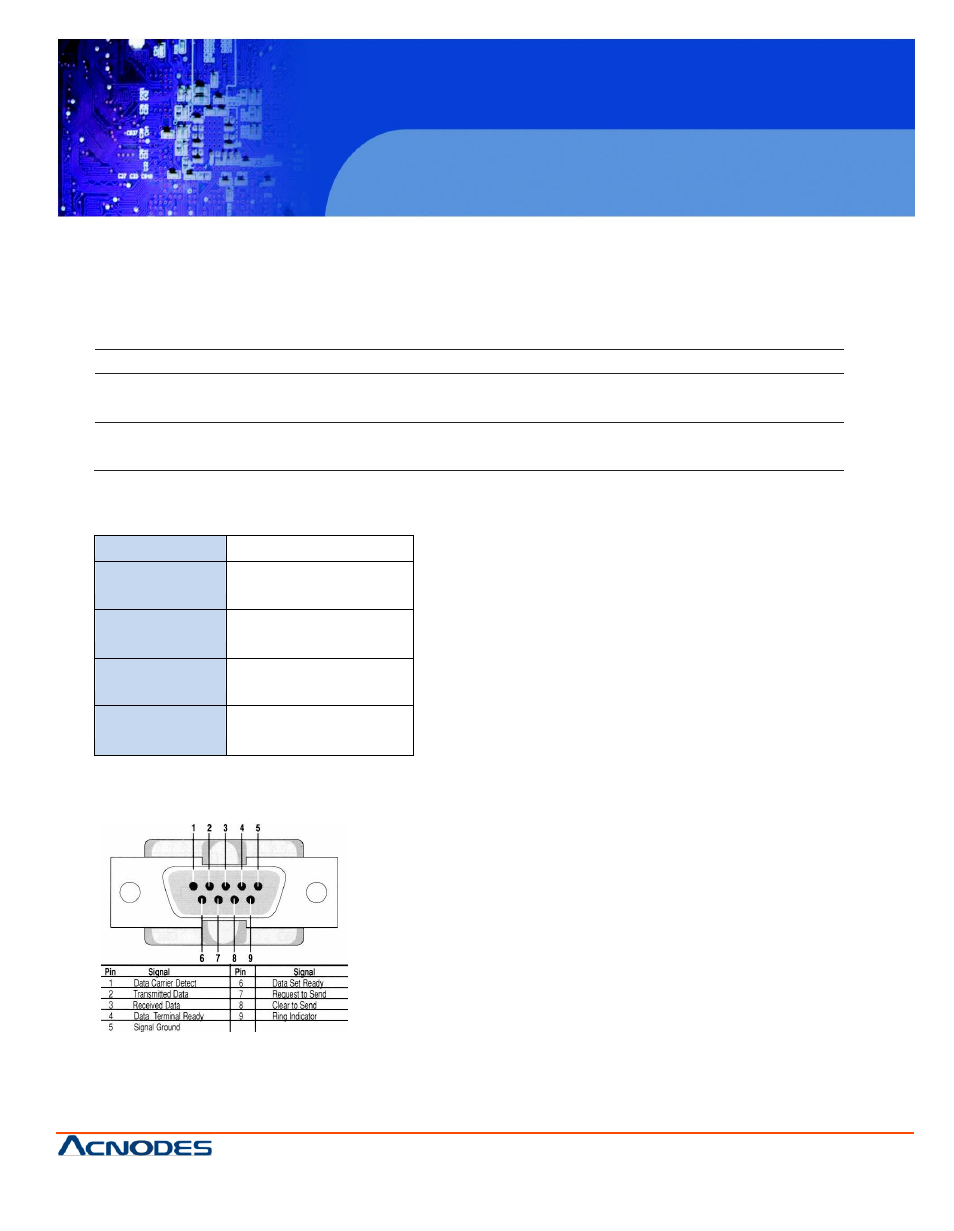

Fig. 2-1 RS-232 pin out DB-9 pin used for Asynchronous Data
