3-4

C

HAPTER

3: M

AKING

FMS 100-TX H

UB

C

ONNECTIONS

Hub-to-Hub

Interconnection

You can interconnect up to eight hubs, using expansion cables to form one
logical unit. (The hub expansion cable is also designated the inter-hub bus
[IHB] cable.) Interconnecting eight hubs will provide a maximum of 104 ports
(96 RJ-45 ports from the front panels and 8 ports from the transceiver
interface modules inserted in the hubs’ rear panels).

You do not have to turn off the power if you are connecting hubs using
expansion cables.

Use the hub expansion cable (3C219) to connect the UP expansion port on
the rear panel of one hub to the DOWN expansion port on the next hub, as
shown in Figure 3-4. (The hub expansion cable must be purchased
separately.) Repeat this step for each hub in the stack.

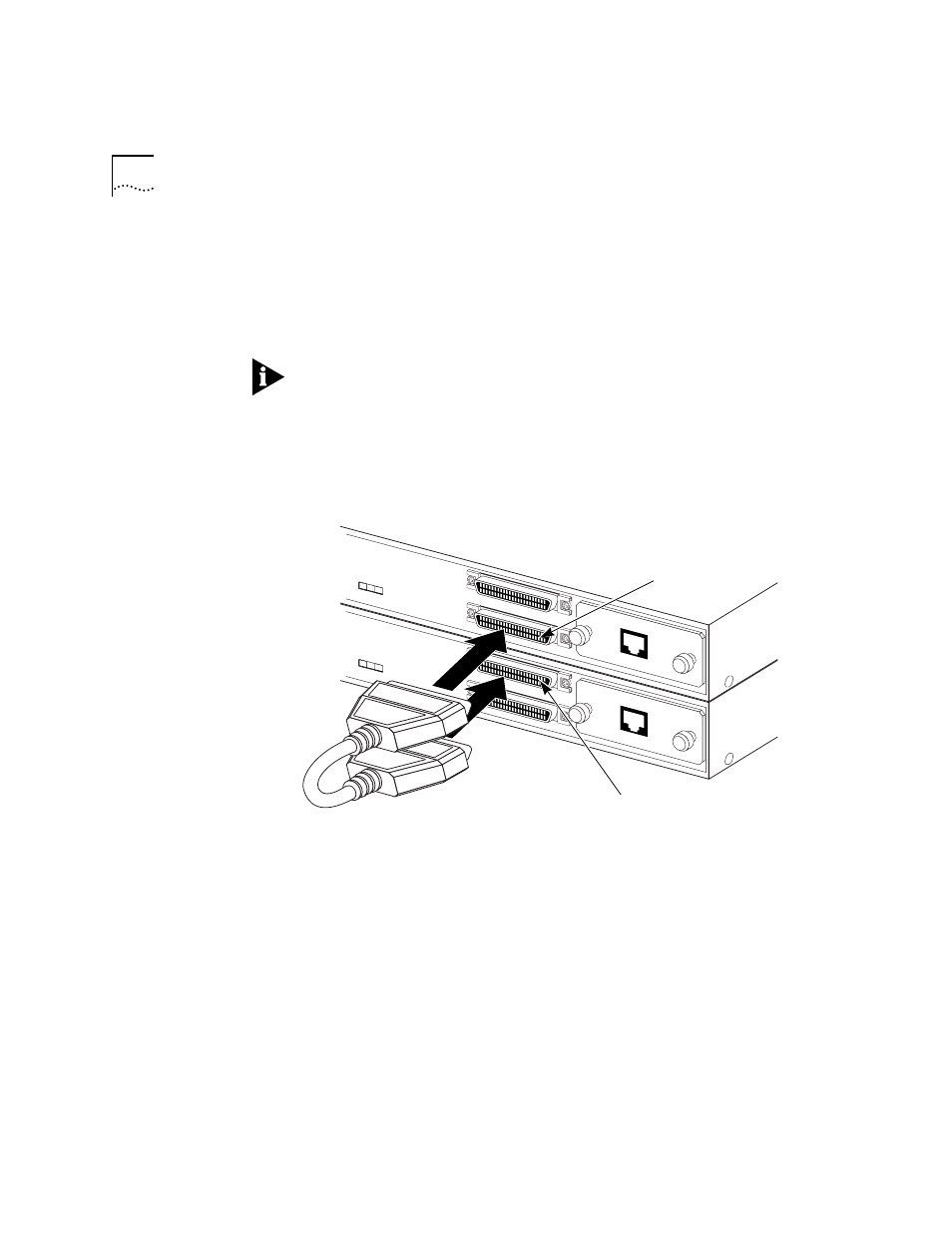

Figure 3-4 Interconnecting Two Hubs

UP

DOWN

EXPANSION

E

D

UP

DOWN

EXPANSION

E

D

DOWN
expansion
port

UP expansion port
