2-8 C HAPTER 2: I NSTALLING THE FMS 100-TX H UB
The RPS cables are inserted into the DC input connectors on the hubs’ rear
panels. Remove the rubber protective cover from each DC input connector
before connecting the RPS cable. Figure 2-6 shows the RPS mounted on top
of a four-hub stack and connected to each hub.

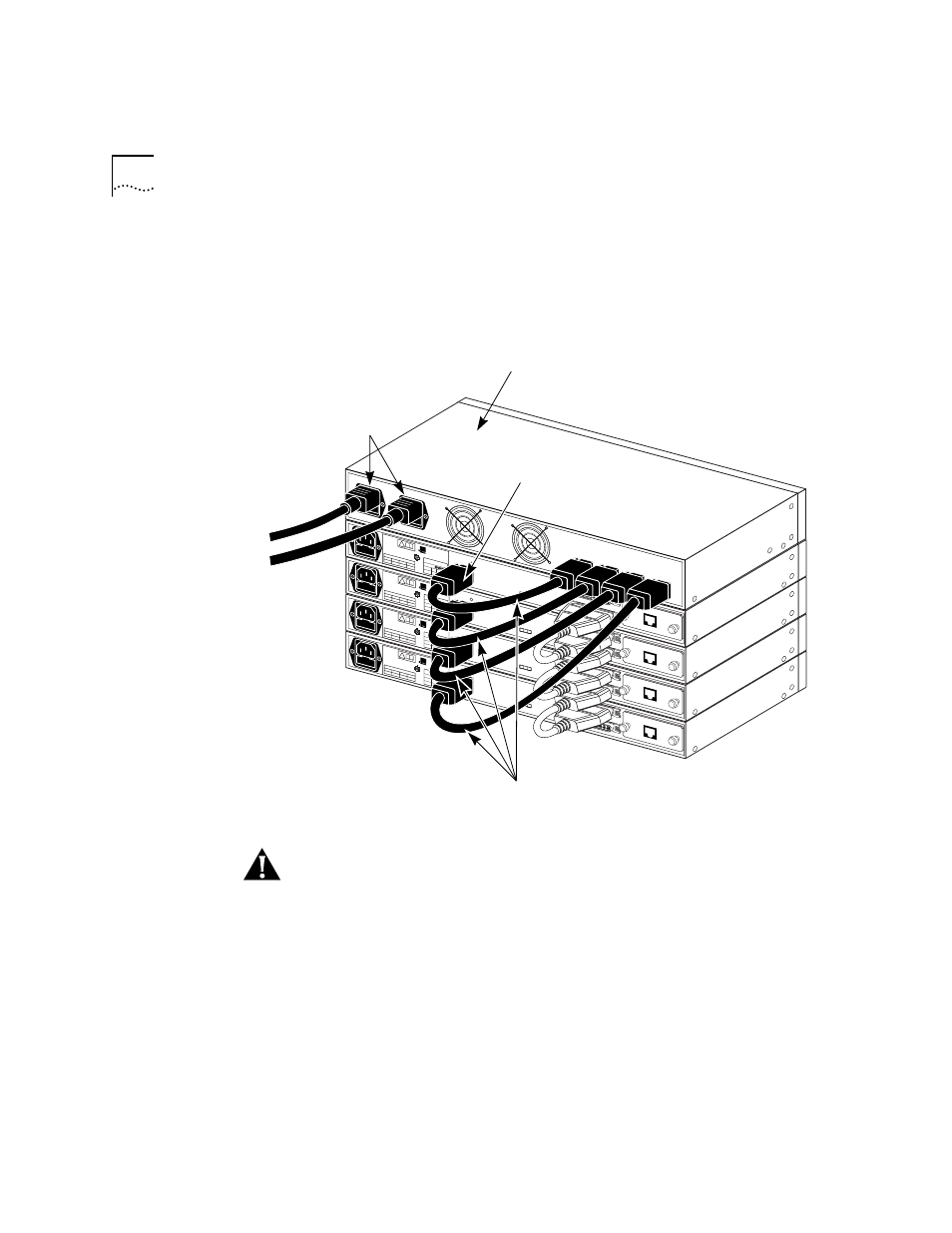

Figure 2-6 Connecting the Redundant Power System to Four Hubs
CAUTION: If you use the Redundant Power System, do not use the AC power
plug on the rear panel or the AC power cable that is supplied with each hub.
Instead, use the RPS cable and insert one end into the RPS and the other into
the DC input connector on each hub. If you do not use the RPS, you must
connect each hub separately to an AC power source.
!
