PDL principles and procedures

Using LCDS Print Description Language

1-37

Portrait orientation

The following figure shows portrait orientation dimensions for a
document using FMT6 (the standard portrait format for impact
printer output).

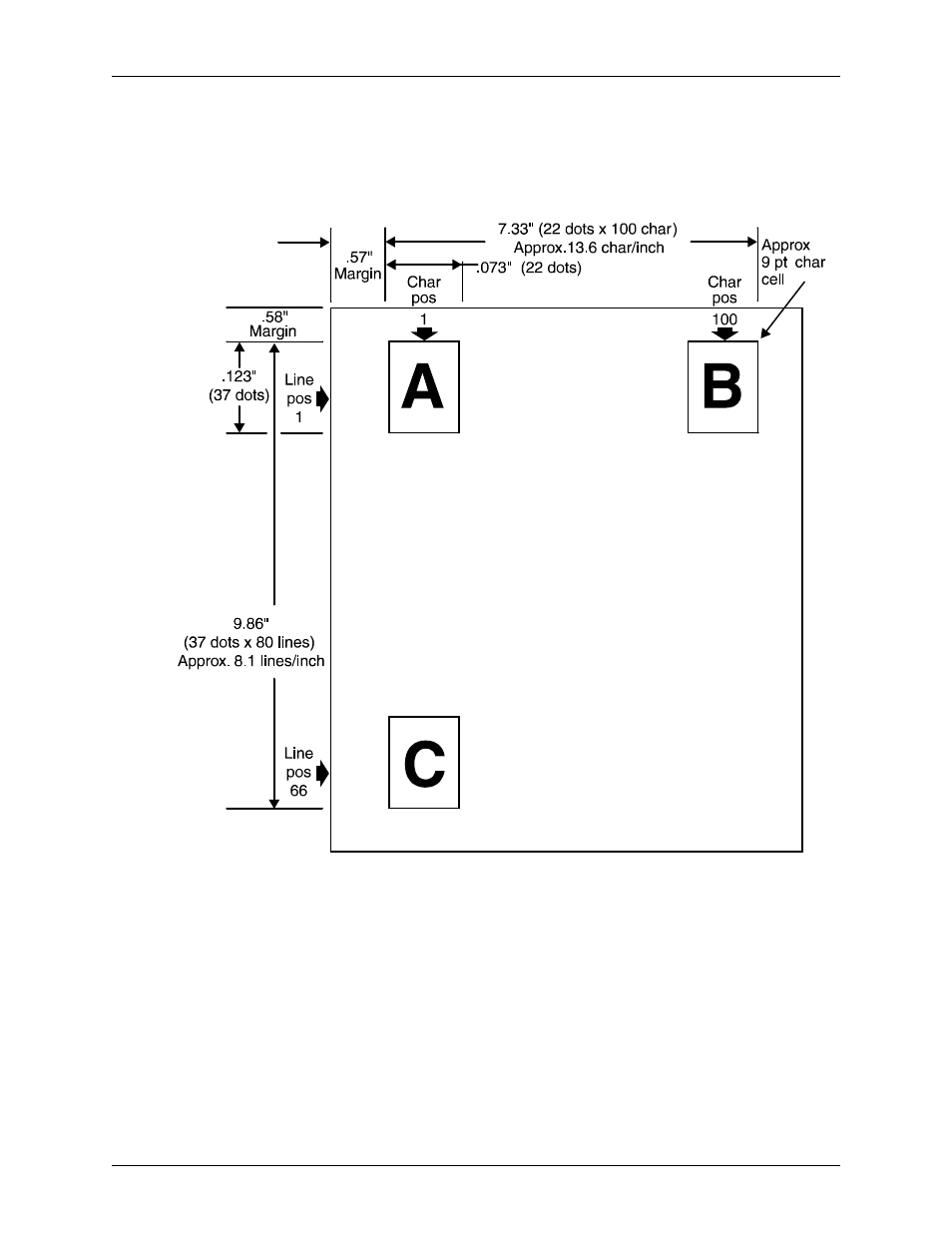

Figure 1-4. Page layout for FMT6: Impact printer format, 8.1
lines per inch
