Page 36
P312 Broadband Security Gateway
2-2
Hardware Installation & Initial Setup
LEDs
Function Indicator
Status
Active
Description
Flashing
The 100M LAN is sending/receiving packets.
Off
The WAN Link is not ready, or has failed.
On
The WAN Link is ok.
WAN
WAN
Green
Flashing
The 10M WAN link is sending/receiving packets.

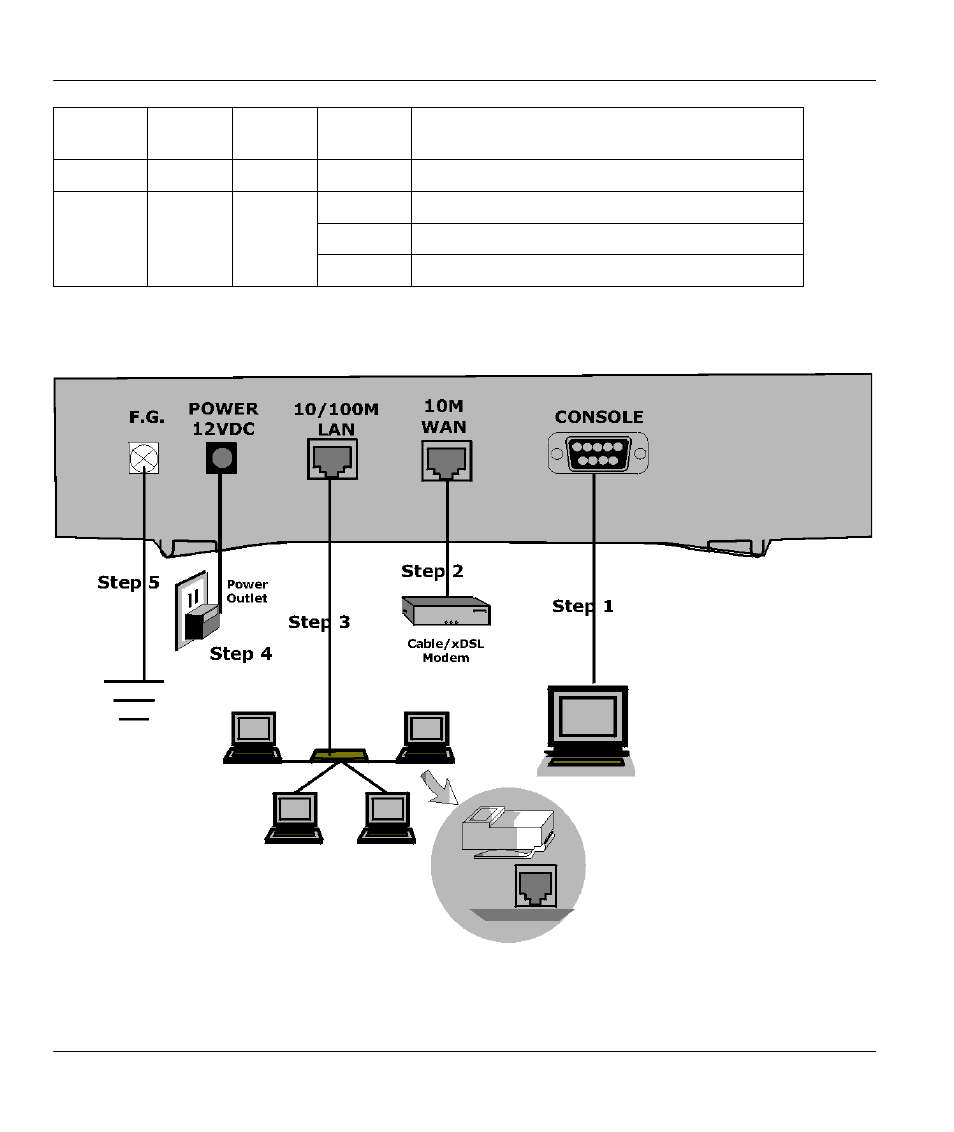

2.2 Prestige 312 Rear Panel and Connections
The following figure shows the rear panel of your Prestige 312 and the connection diagram.
Figure 2-2
Prestige 312 Rear Panel and Connections
This section outlines how to connect your Prestige 312 to the LAN and the WAN. In the case of connecting
a Cable Modem you must connect the coaxial cable from your cable service to the threaded coaxial cable
