Remote Node TCP/IP Configuration 5-3

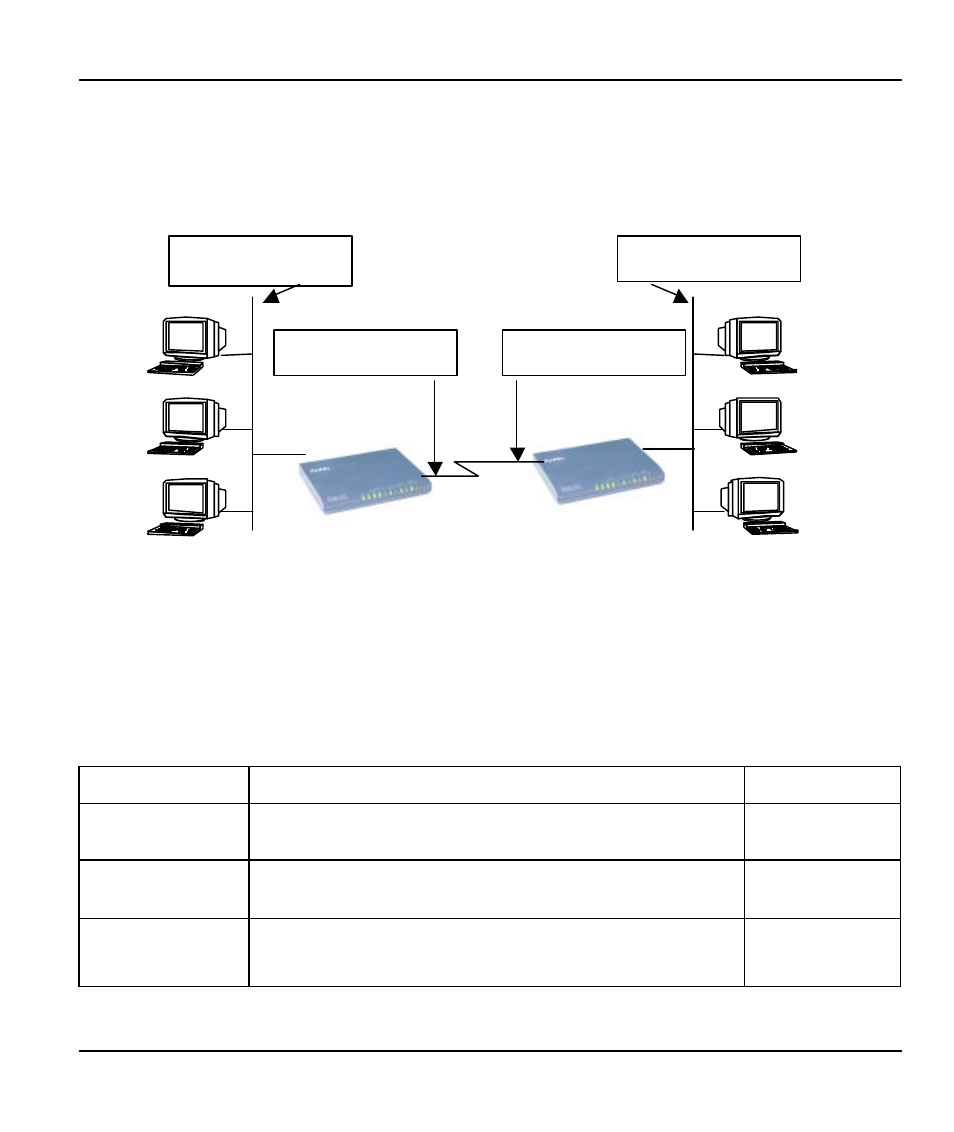

The following diagram explains the Sample IP Addresses to help you to understand the field of
My Wan Addr in Menu 11.3.
Figure 5-3 Sample IP Addresses for a TCPI/IP LAN-to-LAN Connection
To configure the TCP/IP parameters of a remote node, first configure the three fields in Menu 11
– Remote Node Profile, as shown in the table below. For more details on the IP Option fields,
refer to Chapter 3 – Internet Access Application.
Table 5-1 TCP/IP related fields in Remote Node Profile
Field Description Option
Route Make sure IP is among the protocols in the Route field in the
Remote Node Profile. IP
Rem IP Address Enter the IP address of the remote gateway in Remote Node
Profile.
Edit IP/IPX/Bridge Press the space bar to select Yes and press Enter to go to
Menu 11.3 - Remote Node Network Layer Options Menu. Yes
(Yes/No)
Local Network Remote Network
192.168.3.2 192.168.3.1
192.168.1.0 192.168.2.0
