Hardware installation, Front panel leds and back panel ports, Chapter 2 hardware installation – ZyXEL Communications 10 User Manual
Page 45: 1 front panel leds and back panel ports
ZyWALL 10~100 Series Internet Security Gateway
Hardware Installation
2-1
Chapter 2
Hardware Installation
This chapter explains the LEDs and ports as well as how to connect the hardware. Refer to Table
1-1 for a list of hardware features that are specific to individual models.
2.1 Front Panel LEDs and Back Panel Ports
2.1.1
Front Panel LEDs
The LEDs on the front panel indicate the operational status of the ZyWALL.

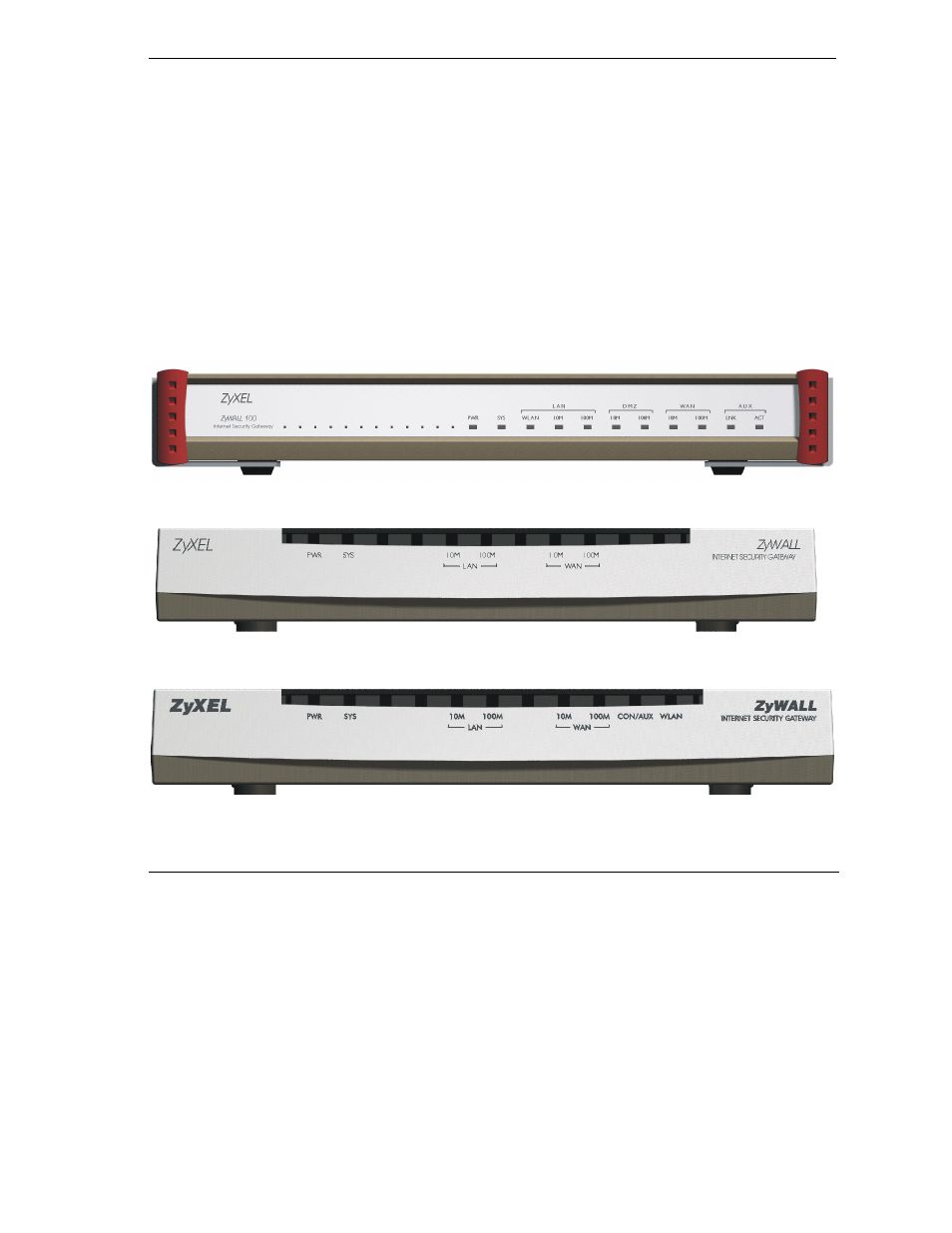

Figure 2-1 ZyWALL 100 Front Panel
Figure 2-2 ZyWALL 50 Front Panel
Figure 2-3 ZyWALL 10W Front Panel
