Black Mark Media Sensor Position Adjustment
This sensor position requires no adjustment or calibration by the user.
Transmissive Media Sensor Position Adjustment
The transmissive media sensor senses either the “web” between labels or a hole
or notch in the media to determine the length of the label or ticket. The
factory-set position should be sufficient for any width label using media with a
web. However, if position adjustments are needed, follow these procedures be-
ginning with the upper sensor.
7-2 Zebra S-Series User’s Guide

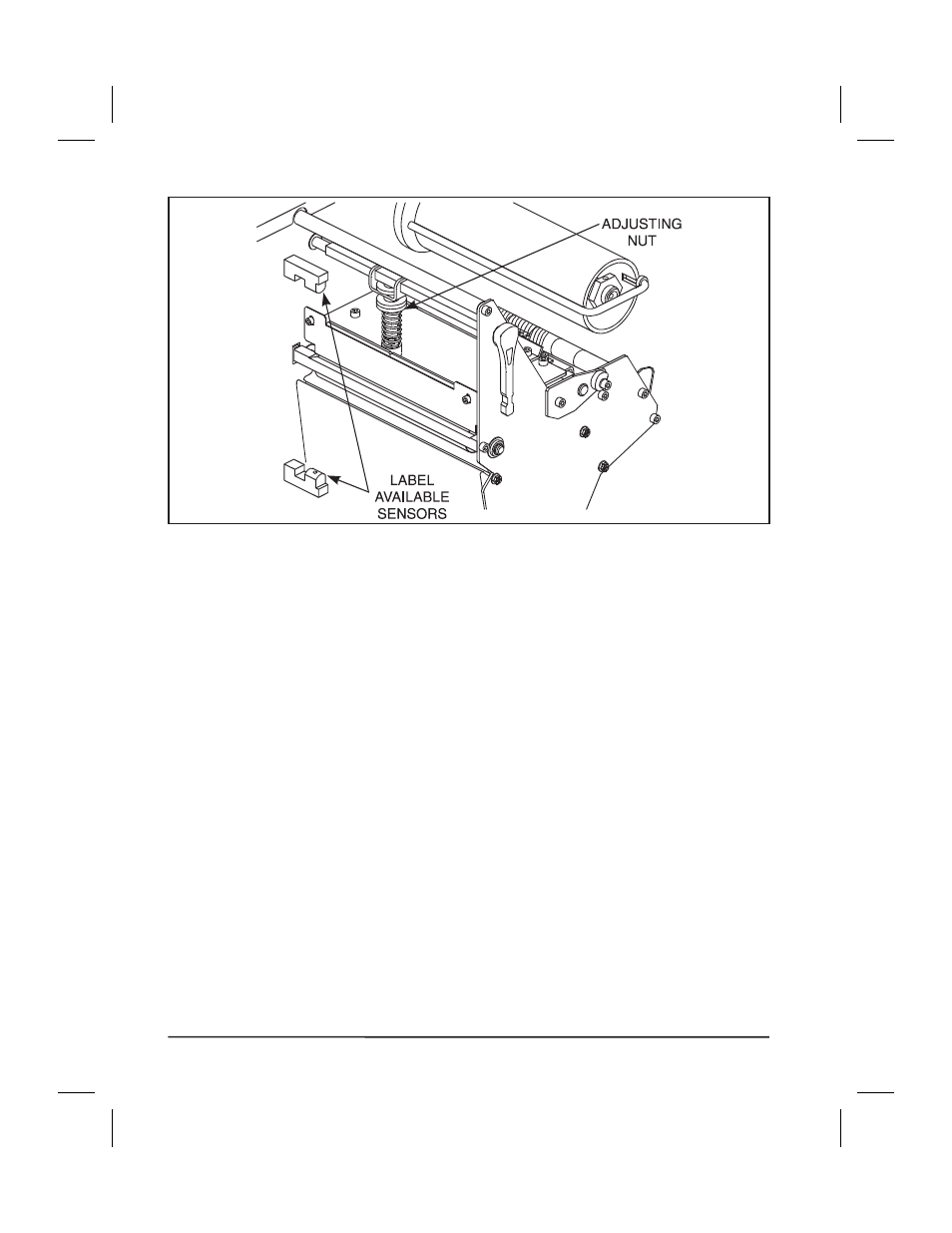

Figure 7.1 Printhead Pressure Adjustment (105Se shown)
