Removing Used Ribbon (105Se)
To remove used ribbon, refer to Figure 2.9 and follow the steps below.
1. Pull the hook out slightly, then rotate the hook back-and-forth several
times as shown and remove it from the spindle.
2. Grasp the used ribbon and remove it from the Ribbon Take-Up Spindle.
3. Remove the empty core from the Ribbon Supply Spindle.
4. Follow the
Ribbon Loading procedure on page 2-4 to load the new rib-
bon.
2-12 Zebra S-Series User’s Guide

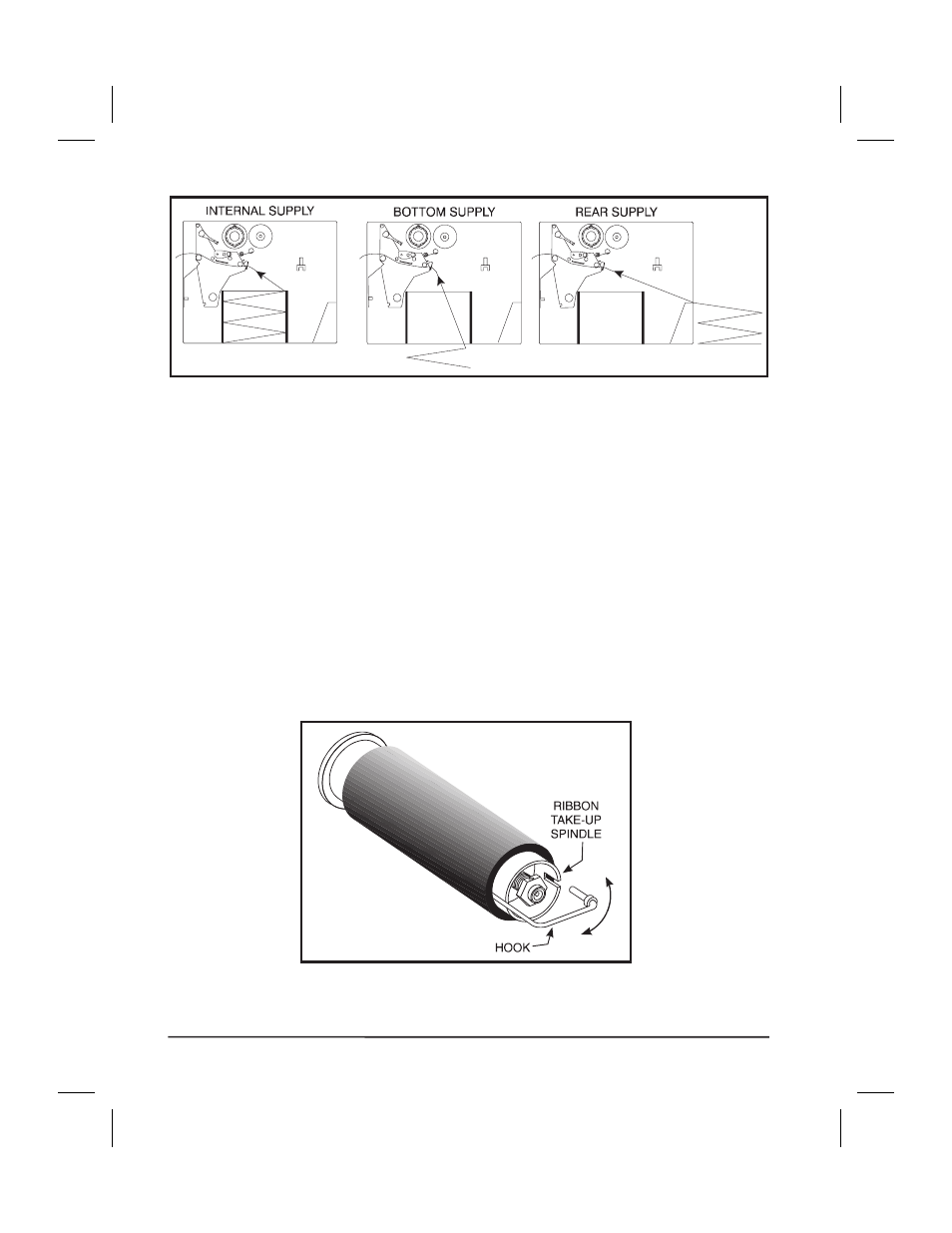

Figure 2.8 Fanfold Media Loading Diagrams (160S)
Figure 2.9 Removing Used Ribbon (105Se)
