Chapter 10 Spanning Tree Protocol
GS-2024 User’s Guide
97

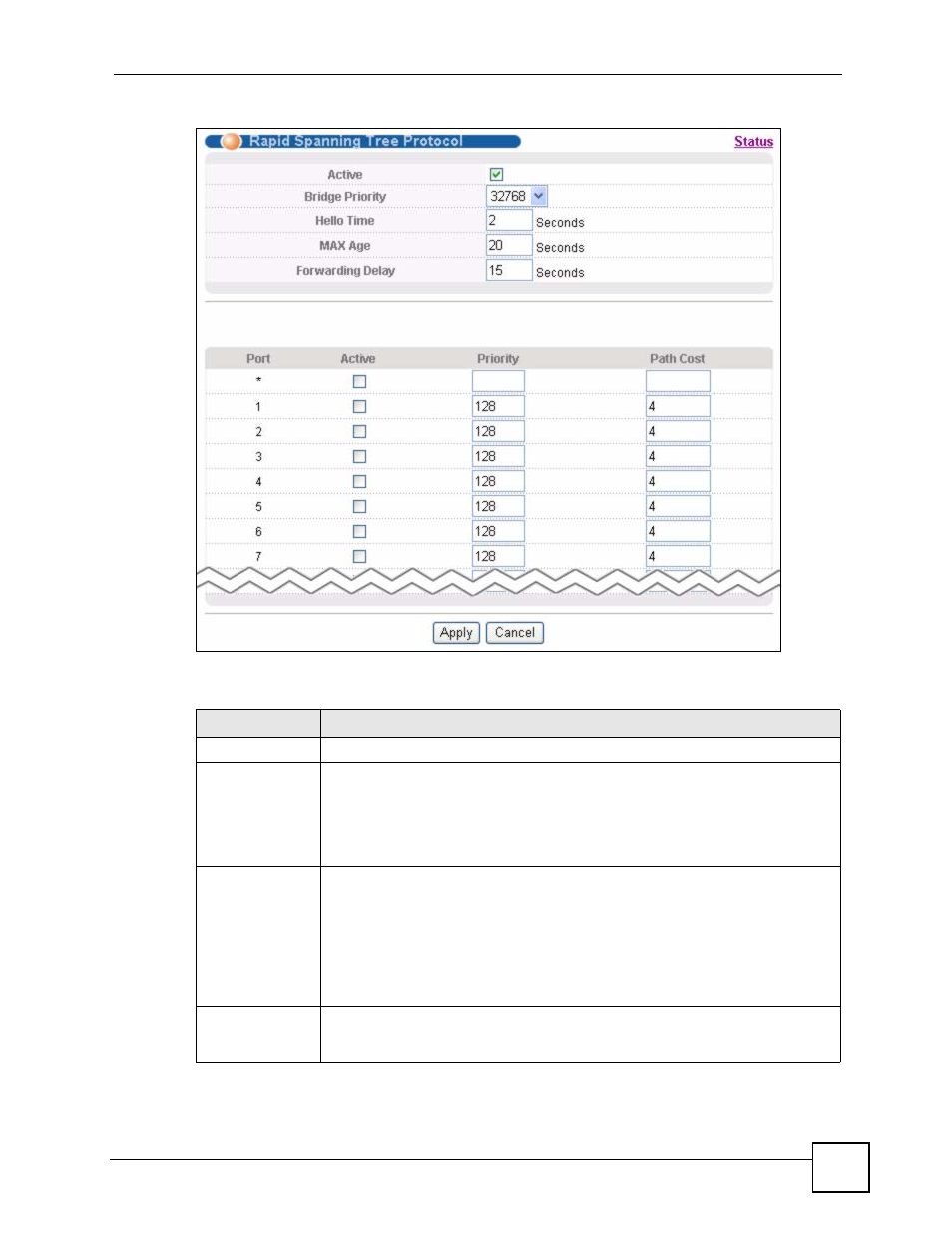

Figure 44 Advanced Application > Spanning Tree Protocol > RSTP
The following table describes the labels in this screen.
Table 23 Advanced Application > Spanning Tree Protocol > RSTP
LABEL
DESCRIPTION
Status
Click Status to display the RSTP Status screen (see
Active
Select this check box to activate RSTP. Clear this checkbox to disable RSTP.
Note: You must also activate Rapid Spanning Tree in the
Advanced Application > Spanning Tree Protocol >
Configuration screen to enable RSTP on the Switch.
Bridge Priority
Bridge priority is used in determining the root switch, root port and designated port.
The switch with the highest priority (lowest numeric value) becomes the STP root
switch. If all switches have the same priority, the switch with the lowest MAC
address will then become the root switch. Select a value from the drop-down list
box.
The lower the numeric value you assign, the higher the priority for this bridge.
Bridge Priority determines the root bridge, which in turn determines Hello Time,
Max Age and Forwarding Delay.
Hello Time
This is the time interval in seconds between BPDU (Bridge Protocol Data Units)
configuration message generations by the root switch. The allowed range is 1 to
10 seconds.
