Chapter 2 Hardware Installation and Connection

GS-2024 User’s Guide

35

3 Repeat steps

1

and

2

to install the second mounting bracket on the other side of the

Switch.

4 You may now mount the Switch on a rack. Proceed to the next section.

2.2.3 Mounting the Switch on a Rack

1 Position a mounting bracket (that is already attached to the Switch) on one side of the

rack, lining up the two screw holes on the bracket with the screw holes on the side of the
rack.

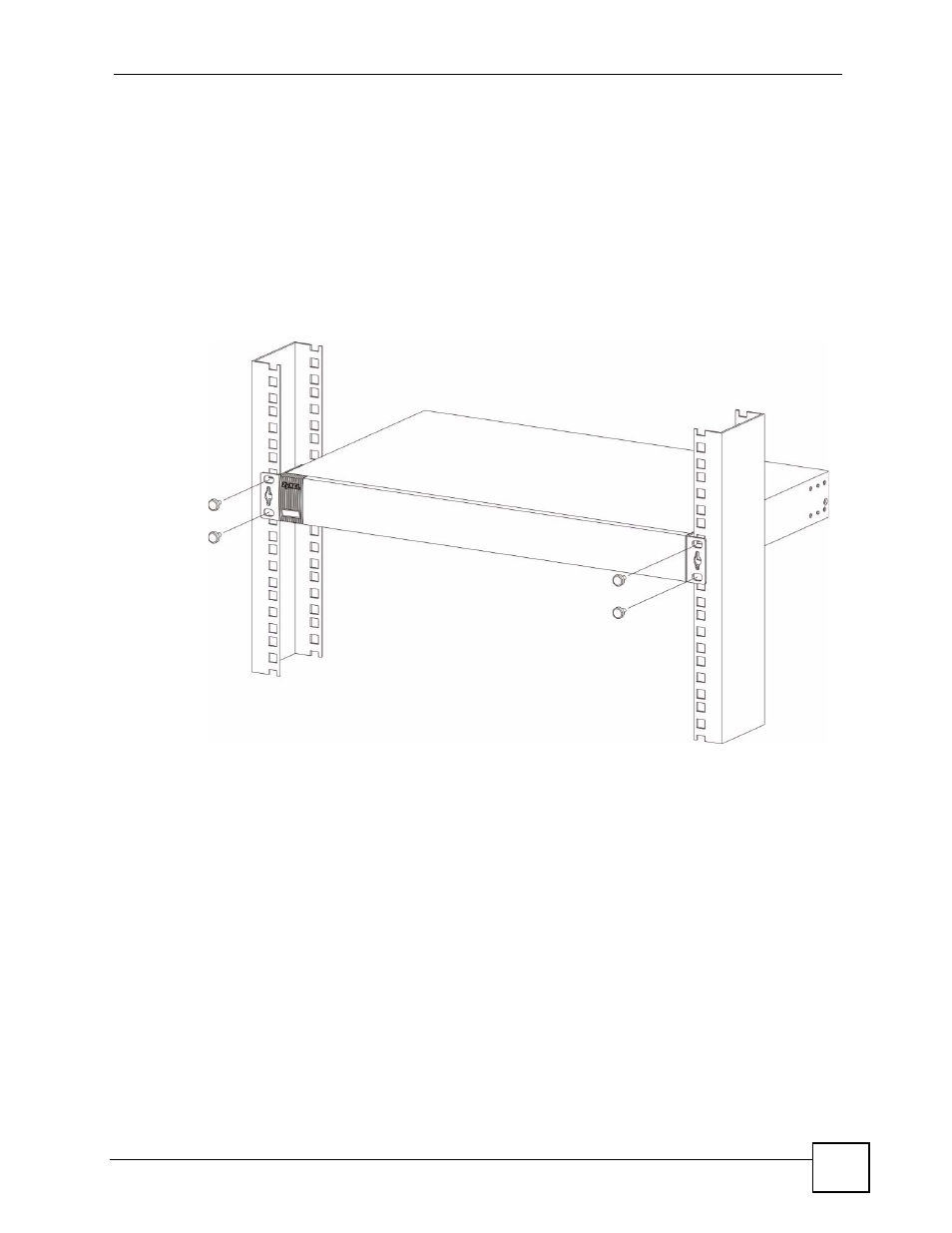

Figure 7 Mounting the Switch on a Rack

2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting

bracket holes into the rack.

3 Repeat steps

1

and

2

to attach the second mounting bracket on the other side of the rack.
