Page 40: 3 console port 3.1.4 management port

Chapter 3 Hardware Overview
GS-2024 User’s Guide
40

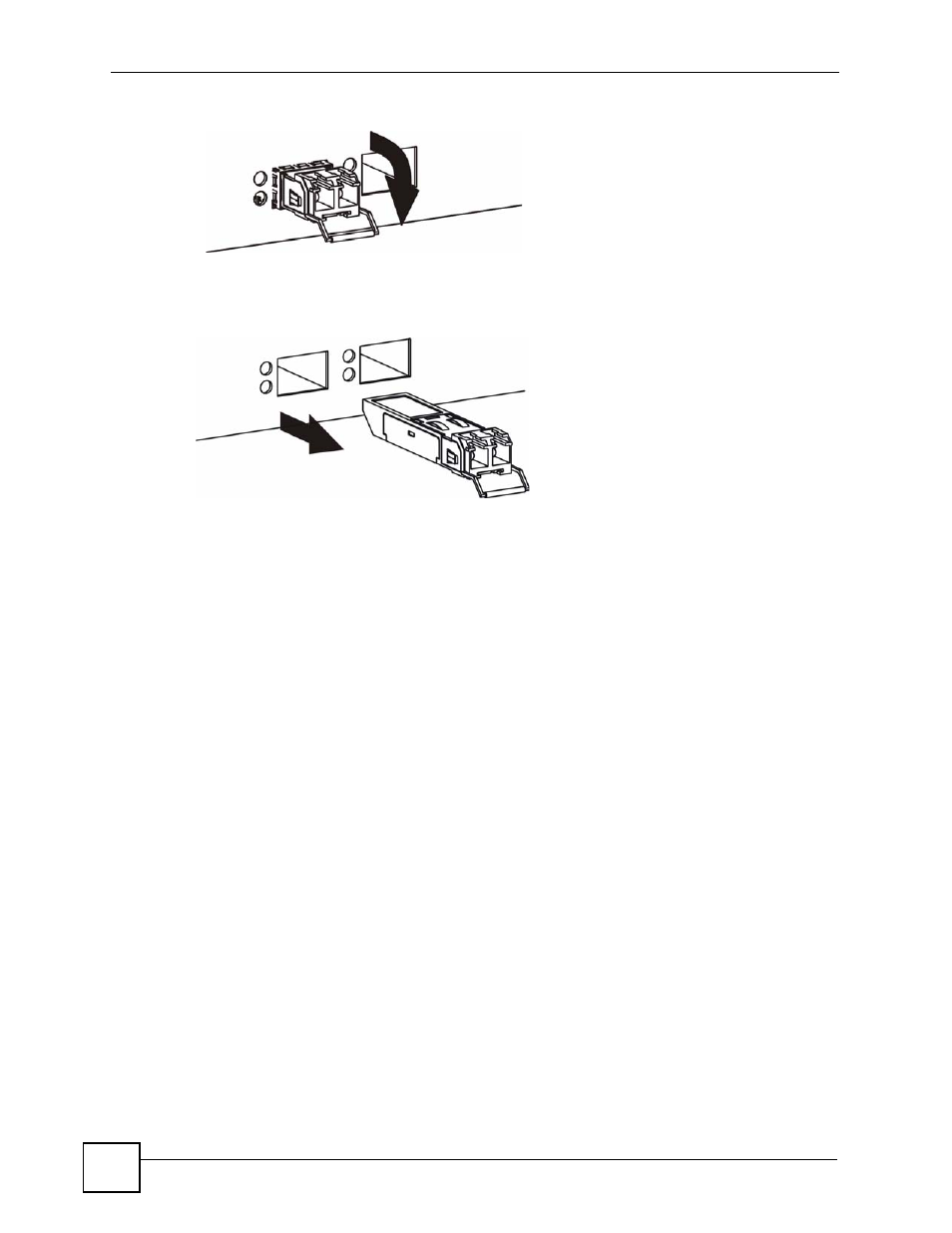

Figure 11 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 12 Transceiver Removal Example
3.1.3 Console Port
For local management, you can use a computer with terminal emulation software configured
to the following parameters:
• VT100 terminal emulation
• 9600 bps
• No parity, 8 data bits, 1 stop bit
• No flow control
Connect the male 9-pin end of the RS-232 console cable to the console port of the Switch.
Connect the female end to a serial port (COM1, COM2 or other COM port) of your computer.
3.1.4 Management Port
The MGMT (management) port is used for local management. Connect directly to this port
using an Ethernet cable. You can configure the Switch via Telnet or the web configurator.
The default IP address of the management port is 192.168.0.1 with a subnet mask of
255.255.255.0.
3.2 Rear Panel
The following figure shows the rear panel of the Switch.
