GS-2024 User’s Guide

109

C

H A P T E R

13

Mirroring

This chapter discusses port mirroring setup screens.

13.1 Port Mirroring Setup

Port mirroring allows you to copy a traffic flow to a monitor port (the port you copy the traffic
to) in order that you can examine the traffic from the mirrored port without interference.
Click Advanced Application > Mirroring in the navigation panel to display the Mirroring
screen. Use this screen to select a monitor port and specify the traffic flow to be copied to the
monitor port.

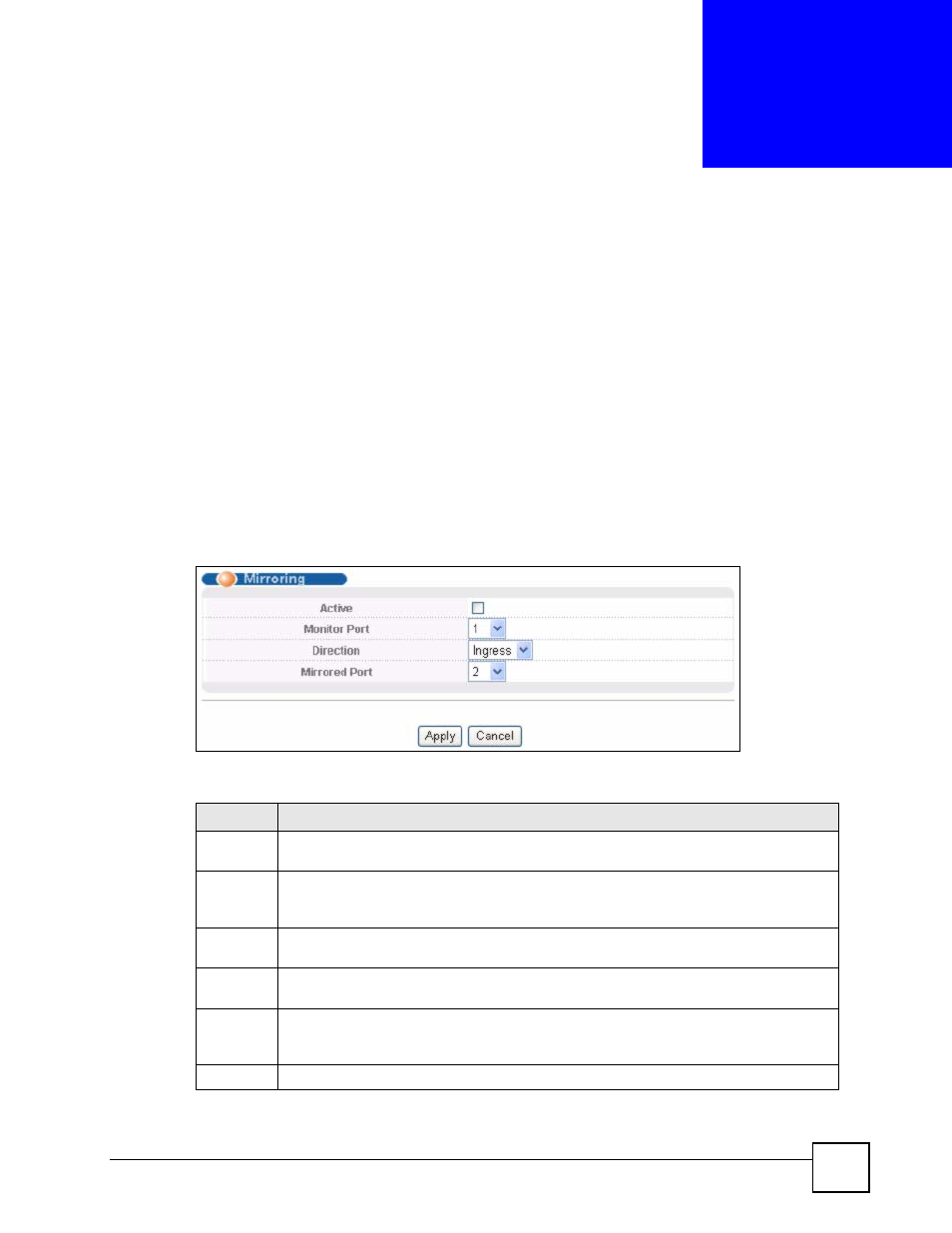

Figure 50 Advanced Application > Mirroring

The following table describes the labels in this screen.

Table 29 Advanced Application > Mirroring

LABEL

DESCRIPTION

Active

Select this check box to activate port mirroring on the Switch. Clear this check box to

disable the feature.

Monitor

Port

The monitor port is the port you copy the traffic to in order to examine it in more detail

without interfering with the traffic flow on the original port. Type the port number of the

monitor port.

Direction

Specify the direction of the traffic to mirror by selecting from the drop-down list box.

Choices are Egress (outgoing), Ingress (incoming) and Both.

Mirrored

Port

Select the port whose traffic (in the specified direction) you want to copy to the specified

monitor port.

Apply

Click Apply to save your changes to the Switch’s run-time memory. The Switch loses

these changes if it is turned off or loses power, so use the Save link on the top navigation

panel to save your changes to the non-volatile memory when you are done configuring.

Cancel

Click Cancel to begin configuring this screen afresh.
