Chapter 10 Spanning Tree Protocol
GS-2024 User’s Guide
96

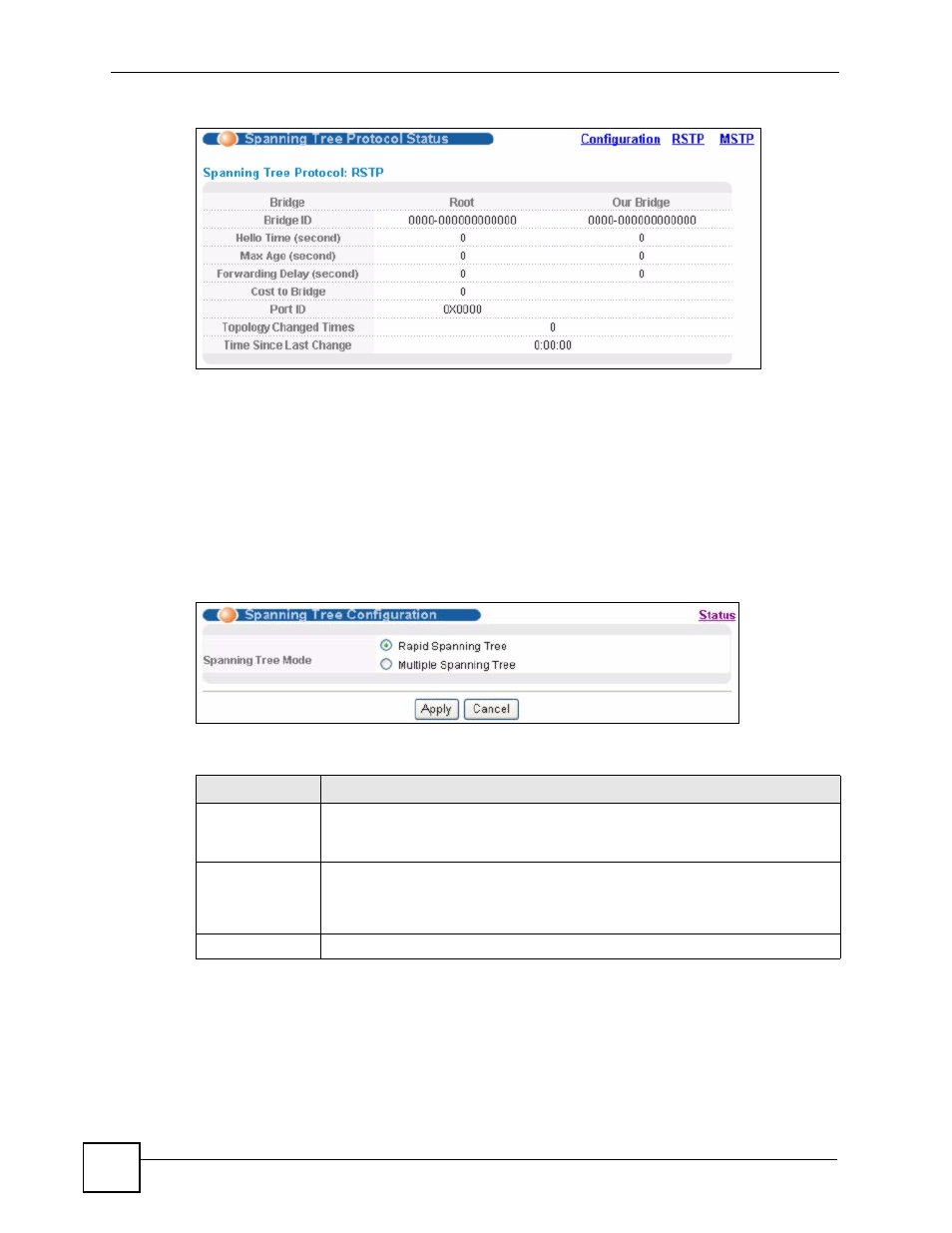

Figure 42 Advanced Application > Spanning Tree Protocol
This screen differs depending on which STP mode (RSTP or MSTP) you configure on the
Switch. This screen is described in detail in the section that follows the configuration section
for each STP mode. Click Configuration to activate one of the STP standards on the Switch.
10.3 Spanning Tree Configuration
Use the Spanning Tree Configuration screen to activate one of the STP modes on the
Switch. Click Configuration in the Advanced Application > Spanning Tree Protocol.
Figure 43 Advanced Application > Spanning Tree Protocol > Configuration
The following table describes the labels in this screen.
10.4 Configure Rapid Spanning Tree Protocol
Use this screen to configure RSTP settings, see Section 10.1 on page 91 for more information
on RSTP. Click RSTP in the Advanced Application > Spanning Tree Protocol screen.
Table 22 Advanced Application > Spanning Tree Protocol > Configuration
LABEL DESCRIPTION
Spanning Tree
Mode
You can activate one of the STP modes on the Switch.
Select Rapid Spanning Tree or Multiple Spanning Tree. See
Section 10.1 on
page 91 for background information on STP.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch
loses these changes if it is turned off or loses power, so use the Save link on the
top navigation panel to save your changes to the non-volatile memory when you
are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
