Chapter 21 Static Route
GS-2024 User’s Guide
160

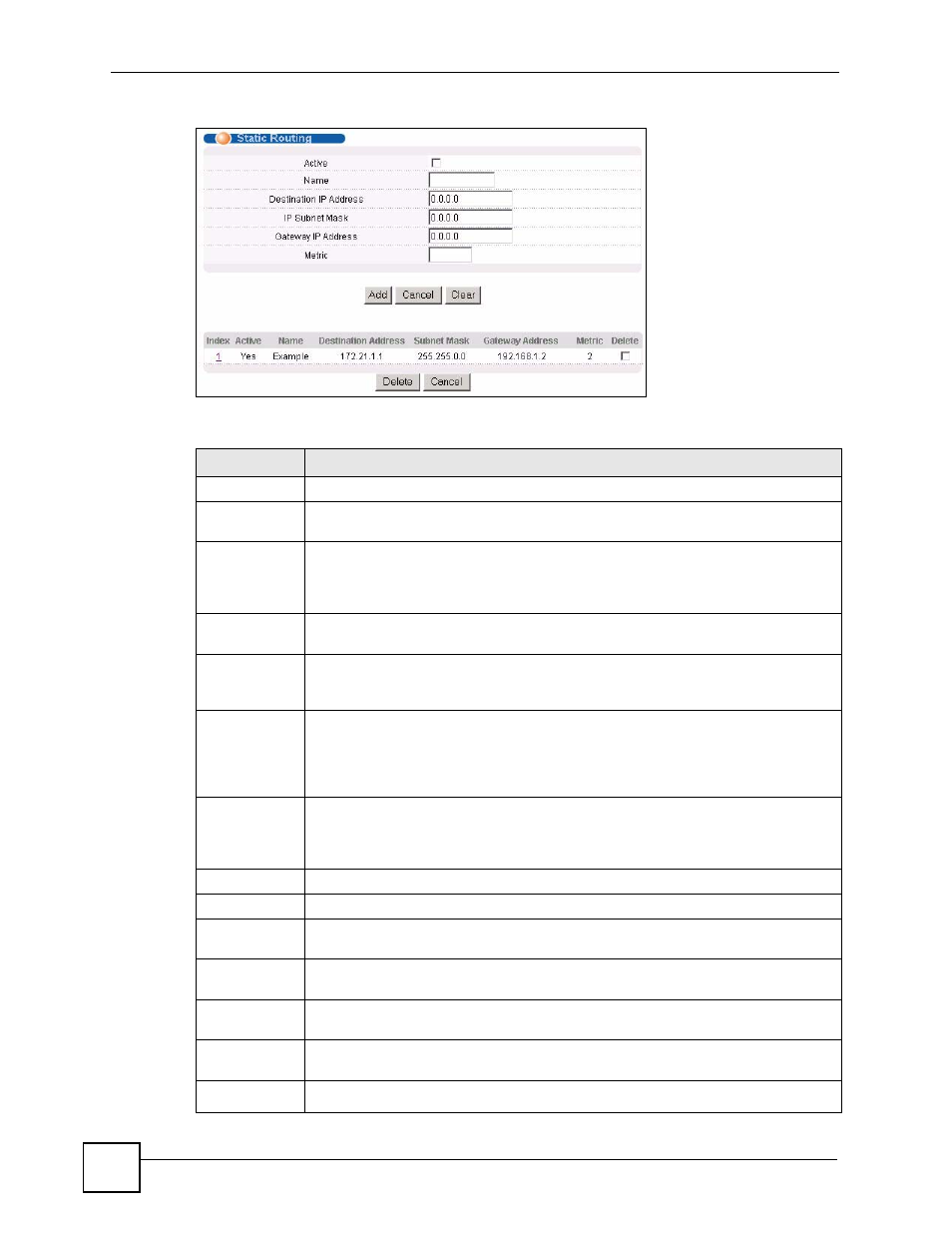

Figure 84 IP Application > Static Routing
The following table describes the related labels you use to create a static route.
Table 54 IP Application > Static Routing
LABEL
DESCRIPTION
Active
This field allows you to activate/deactivate this static route.
Name
Enter a descriptive name (up to 10 printable ASCII characters) for identification
purposes.
Destination IP
Address
This parameter specifies the IP network address of the final destination. Routing is
always based on network number. If you need to specify a route to a single host, use
a subnet mask of 255.255.255.255 in the subnet mask field to force the network
number to be identical to the host ID.
IP Subnet
Mask
Enter the subnet mask for this destination.
Gateway IP
Address
Enter the IP address of the gateway. The gateway is an immediate neighbor of your
Switch that will forward the packet to the destination. The gateway must be a router
on the same segment as your Switch.
Metric
The metric represents the “cost” of transmission for routing purposes. IP routing uses
hop count as the measurement of cost, with a minimum of 1 for directly connected
networks. Enter a number that approximates the cost for this link. The number need
not be precise, but it must be between 1 and 15. In practice, 2 or 3 is usually a good
number.
Add
Click Add to insert a new static route to the Switch’s run-time memory. The Switch
loses these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel
Click Cancel to begin configuring this screen afresh.
Clear Click
Clear to set the above fields back to the factory defaults.
Index
This field displays the index number of the route. Click a number to edit the static
route entry.
Active
This field displays Yes when the static route is activated and NO when it is
deactivated.
Name
This field displays the descriptive name for this route. This is for identification
purposes only.
Destination
Address
This field displays the IP network address of the final destination.
Subnet Mask
This field displays the subnet mask for this destination.
