Chapter 14 Link Aggregation

GS-2024 User’s Guide

113

14.4 Link Aggregation Setting

Click Advanced Application > Link Aggregation > Link Aggregation Setting to display
the screen shown next. See

Section 14.1 on page 111

for more information on link

aggregation.

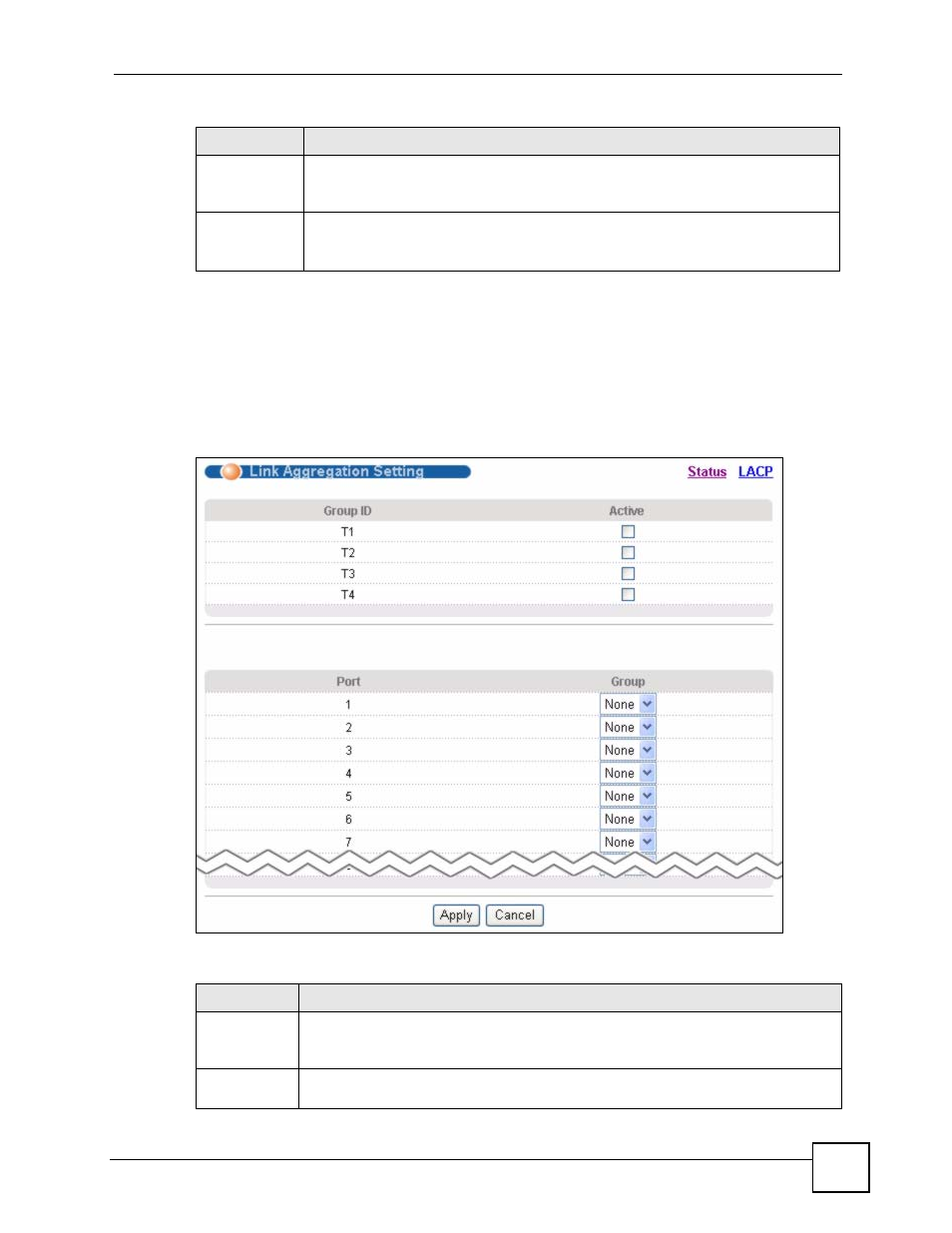

Figure 52 Advanced Application > Link Aggregation > Link Aggregation Setting

The following table describes the labels in this screen.

Aggregator ID

Link Aggregator ID consists of the following: system priority, MAC address, key, port

priority and port number. Refer to

Section 14.2.1 on page 112

for more information on

this field.

Status

This field displays how these ports were added to the trunk group. It displays:

Static - if the ports are configured as static members of a trunk group.

LACP - if the ports are configured to join a trunk group via LACP.

Table 32 Advanced Application > Link Aggregation Status (continued)

LABEL

DESCRIPTION

Table 33 Advanced Application > Link Aggregation > Link Aggregation Setting

LABEL

DESCRIPTION

Link

Aggregation

Setting

This is the only screen you need to configure to enable static link aggregation.

Group ID

The field identifies the link aggregation group, that is, one logical link containing

multiple ports.
