MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
97
UG257 (v1.1) December 5, 2007
Configuring from SPI Flash
R
To generate the actual PROM file, click Operations Æ Generate File as shown in
Figure 12-13
.
As shown in
Figure 12-14
, the iMPACT software indicates that the PROM file was
successfully created. The PROM Formatter creates an output file based on the settings
shown in
Figure 12-8
. In this example, the output file is called MySPIFlash.mcs.

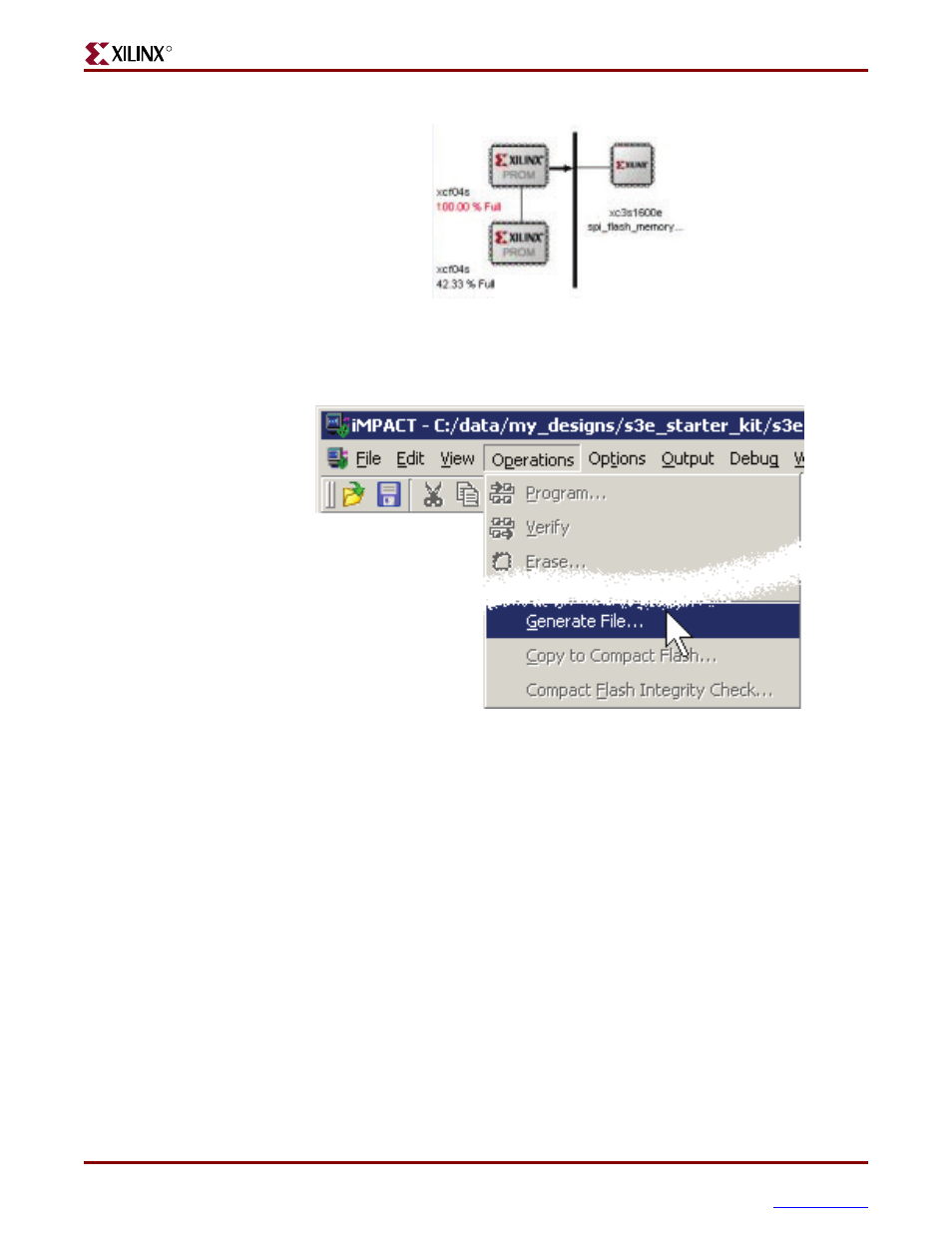

Figure 12-12:
PROM Formatting Completed
Figure 12-13:
Click Operations Æ Generate File to Create the Formatted PROM File
UG257_12-12_062606
UG257_12_13_060806
