MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
33
UG257 (v1.1) December 5, 2007
Programming the FPGA, CPLD, or Platform Flash PROM via USB
R
Choose Xilinx PROM as the target PROM type, as shown in
Figure 4-15
. Select from any
of the PROM File Formats; the Intel Hex format (MCS) is popular. Enter the Location of
the directory and the PROM File Name. Click Next > when finished.

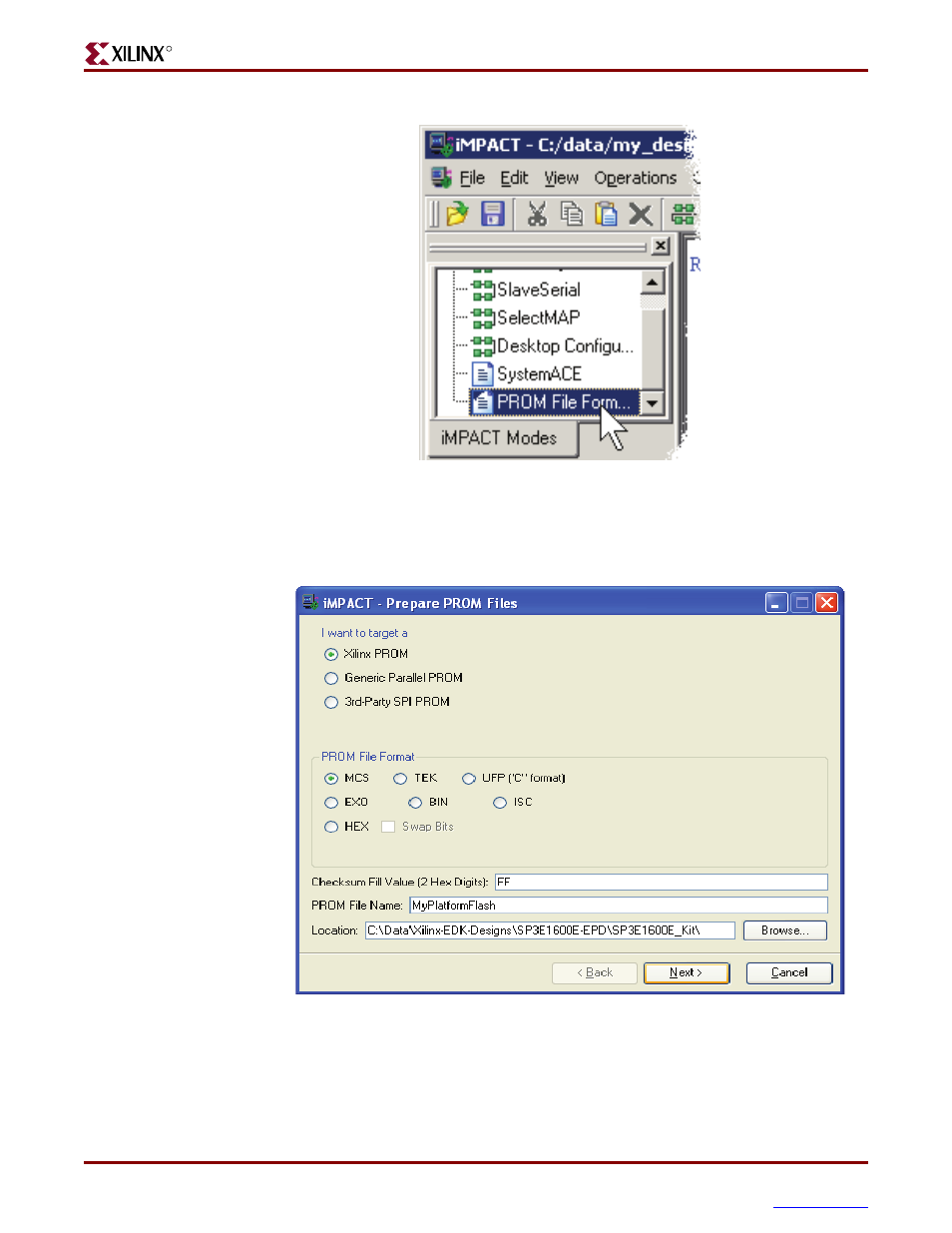

Figure 4-14:
Double-Click PROM File Formatter
Figure 4-15:
Choose the PROM Target Type, the, Data Format, and File Location
UG257_04_14_061206
UG257_04_15_061206
