34
MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
UG257 (v1.1) December 5, 2007
Chapter 4:
FPGA Configuration Options
R
The Spartan-3E Starter Kit board has an XCF04S Platform Flash PROM. Select xcf04s
from the drop list, as shown in
Figure 4-16
. Click Add, then click Next >.
The PROM Formatter then echoes the settings, as shown in
Figure 4-17
. Click Finish.

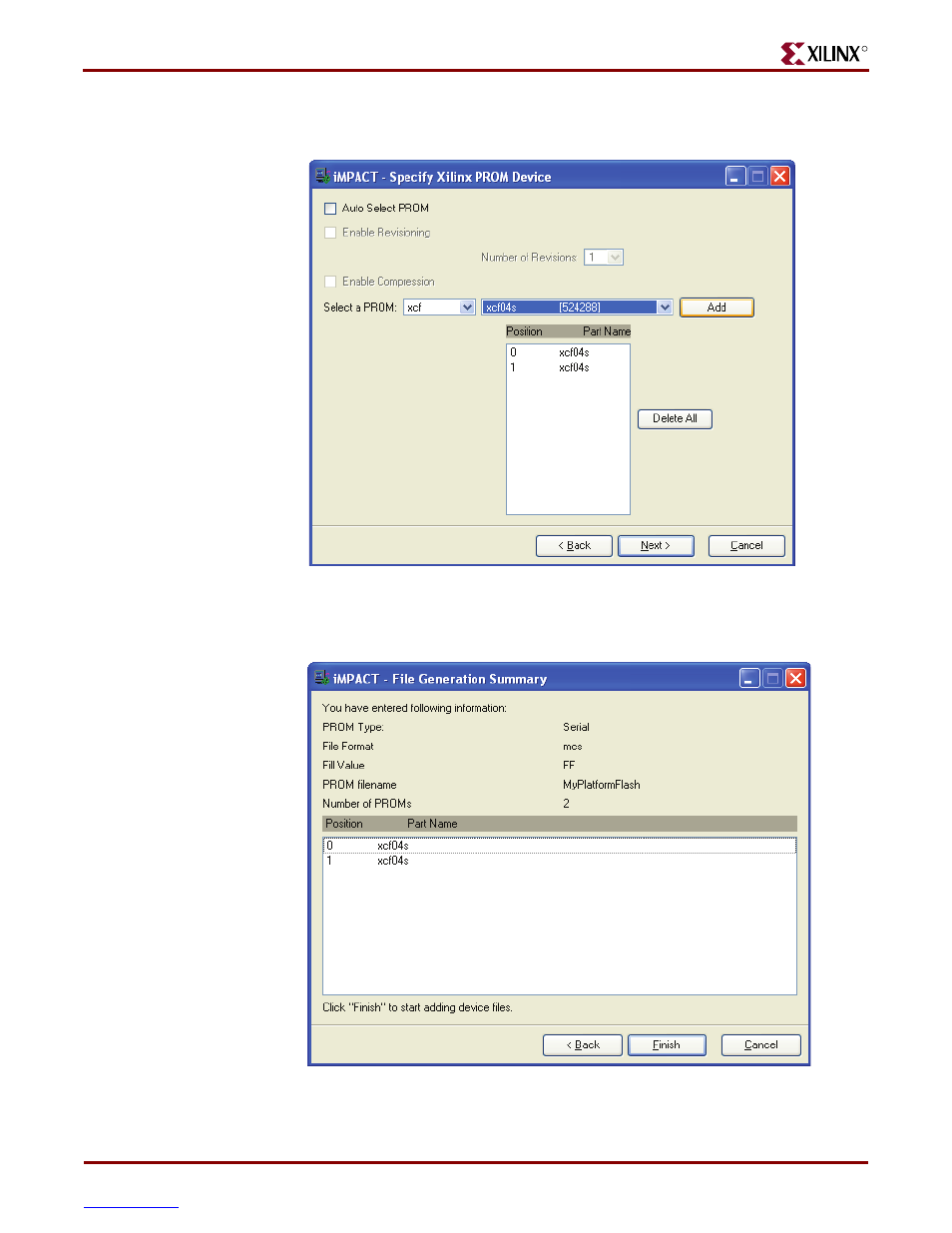

Figure 4-16:
Choose the XCF04S Platform Flash PROM
Figure 4-17:
Click Finish after Entering PROM Formatter Settings
UG257_4-16_061206
UG257_4-17_061206
